HD0038 video splitter HDMI 4x HDMI
Model HD0038EAN 4052792062366
33 specifications
- Weight211 g
- ColourBlack
- Video ports quantity4
- AC input voltage100 - 240 V
- Width95 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 211 g
- Colour
- Black
- Video ports quantity
- 4
- AC input voltage
- 100 - 240 V
- Width
- 95 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- LogiLink
- Category
- Video Splitter
- Model
- HD0038
- Part number
- HD0038
- EAN / UPC
- 4052792062366
- Also known as
- LogiLink HD0038 video splitter HDMI 4x HDMI
Specifications
33 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 4 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.0 |
| Consumer Electronics Control (CEC) support | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| 3D | Yes |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 600 MHz |
| HDCP version | 2.2 |
| HDCP | Yes |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby Digital, Dolby TrueHD |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.2 A |
| Power consumption (max) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 65 mm |
| Height | 23 mm |
| Weight | 211 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 145 mm |
| Package height | 60 mm |
| Package weight | 360 g |
Packaging content
| Specification | Value |
|---|---|

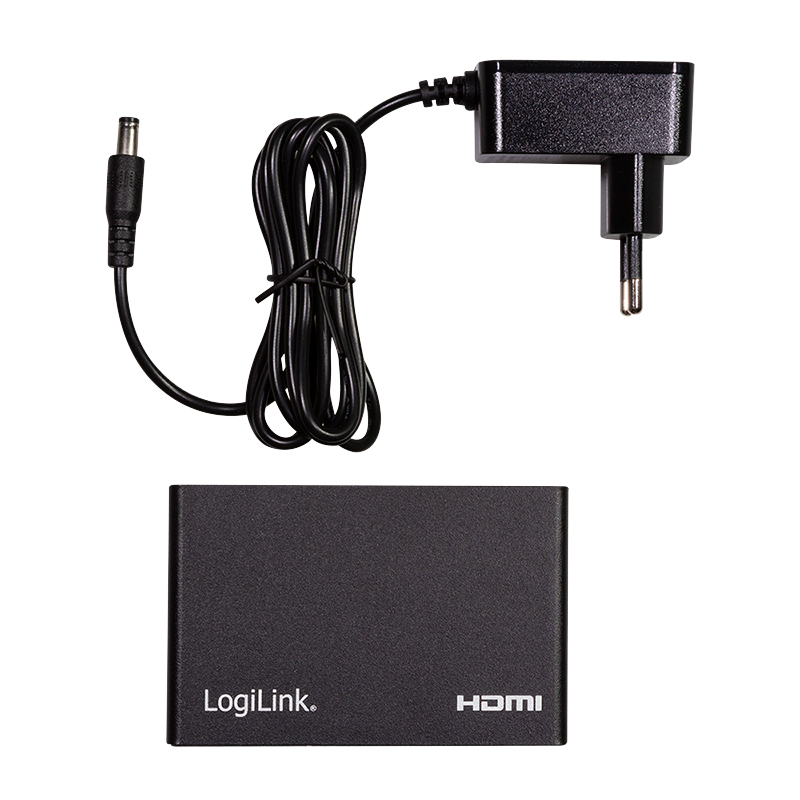

| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
