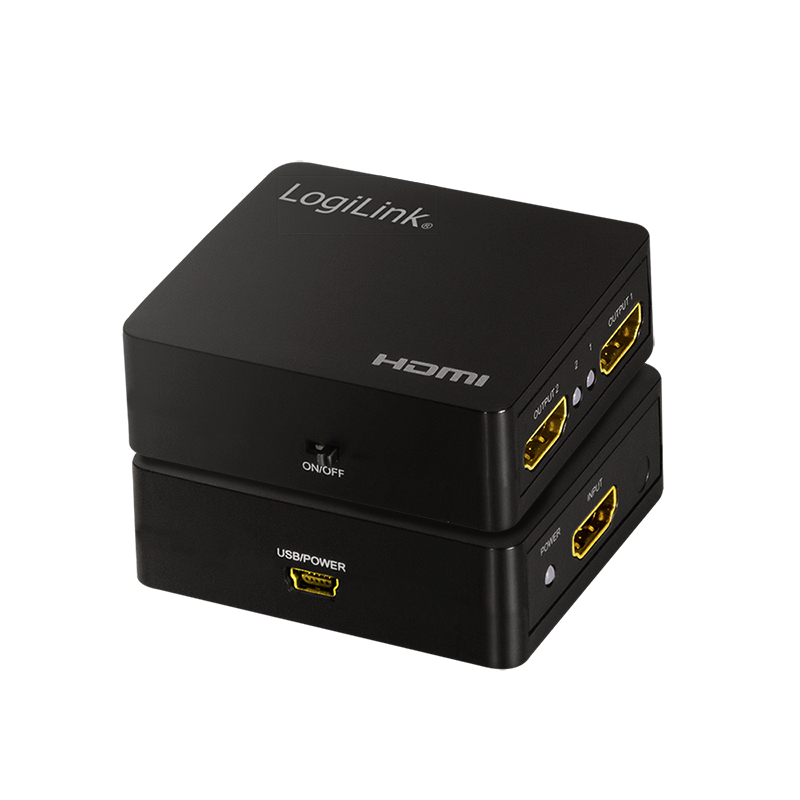

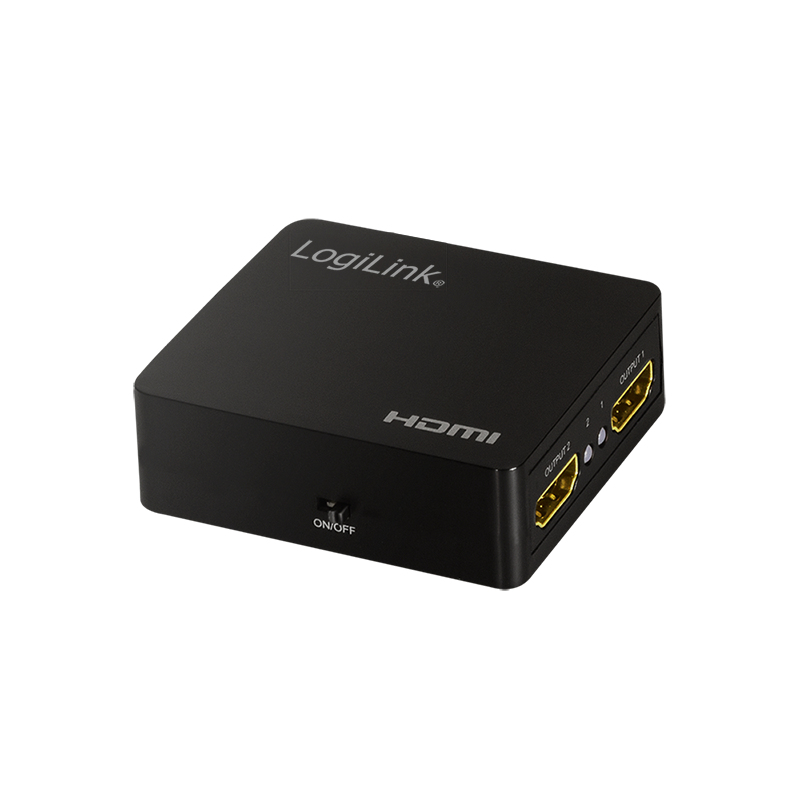

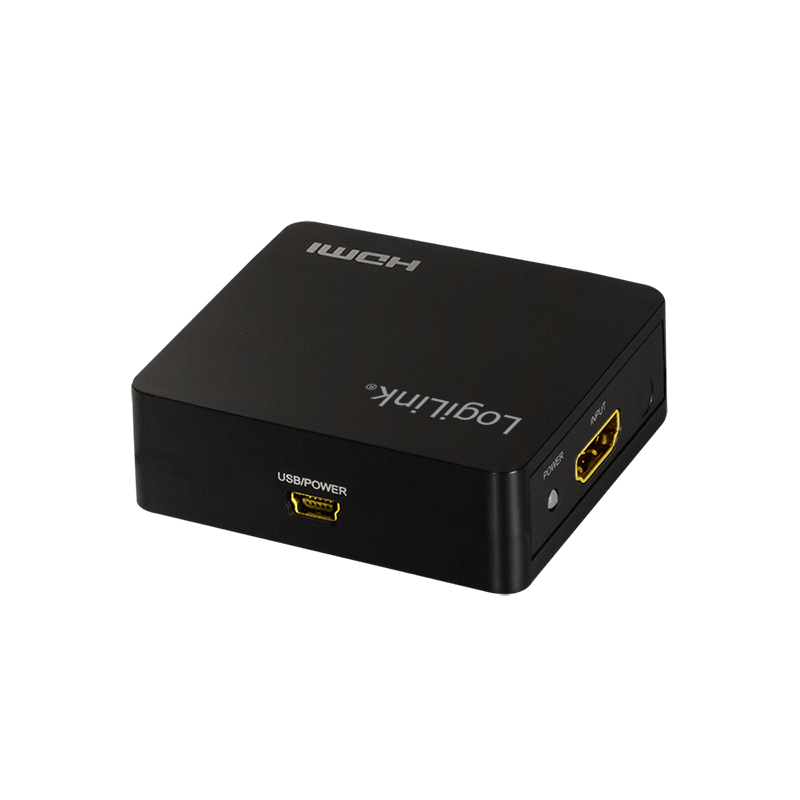

HD0032 video splitter HDMI 2x HDMI
Model HD0032EAN 4052792050844
28 specifications
- Weight42 g
- ColourBlack
- Video ports quantity2
- USB poweredYes
- Width54 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 42 g
- Colour
- Black
- Video ports quantity
- 2
- USB powered
- Yes
- Width
- 54 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- LogiLink
- Category
- Video Splitter
- Model
- HD0032
- Part number
- HD0032
- EAN / UPC
- 4052792050844
- Also known as
- LogiLink HD0032 video splitter HDMI 2x HDMI
Specifications
28 specifications in 7 groups

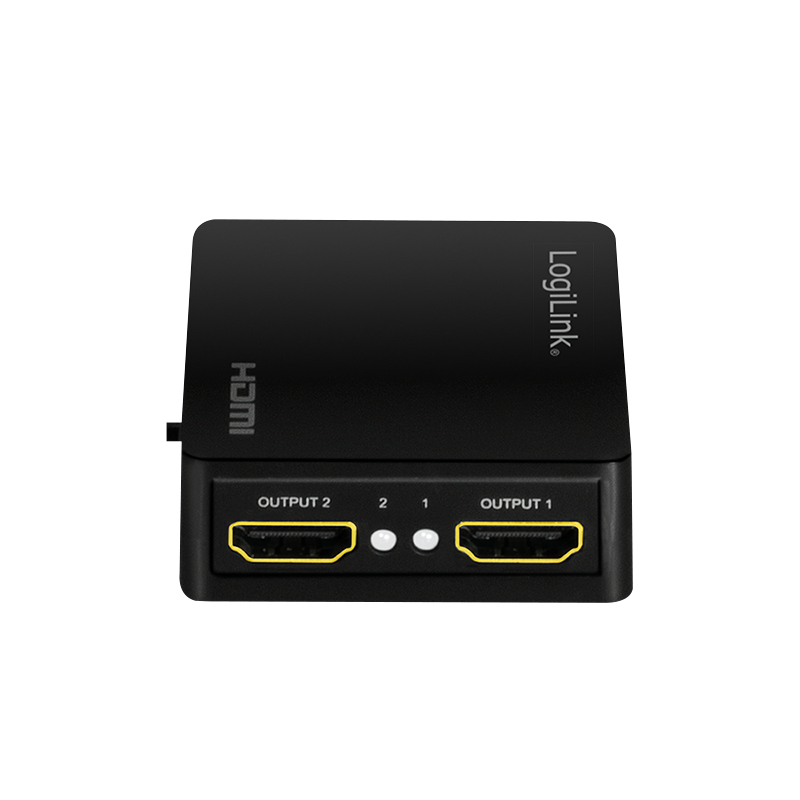

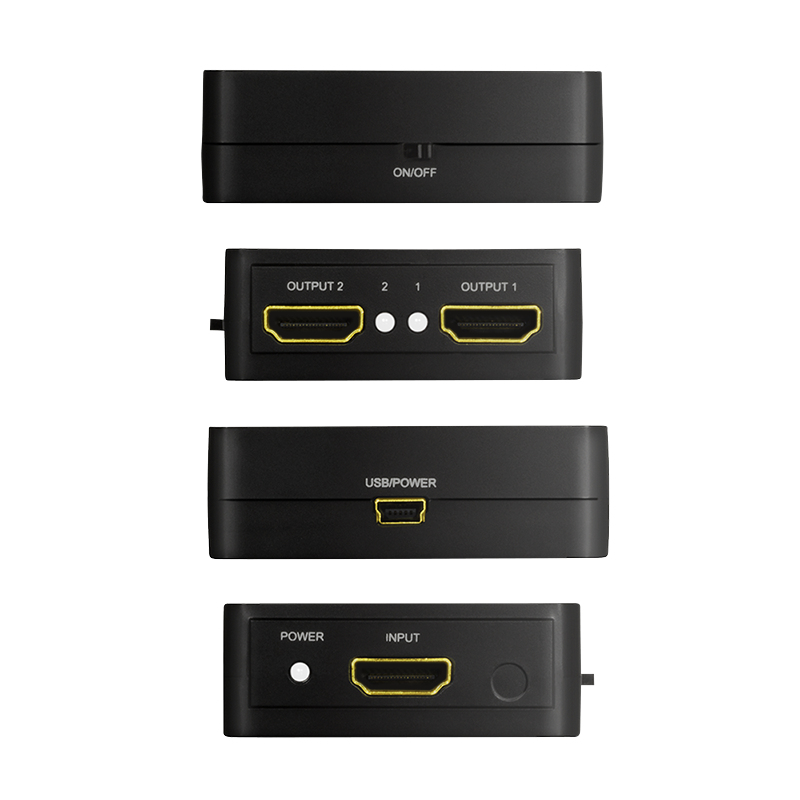

Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 2.0 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Colour depth | 36 bit |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| HDCP | Yes |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby Digital, Dolby TrueHD |
| LED indicators | Power |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 600 mm |
| Height | 20 mm |
| Weight | 42 g |

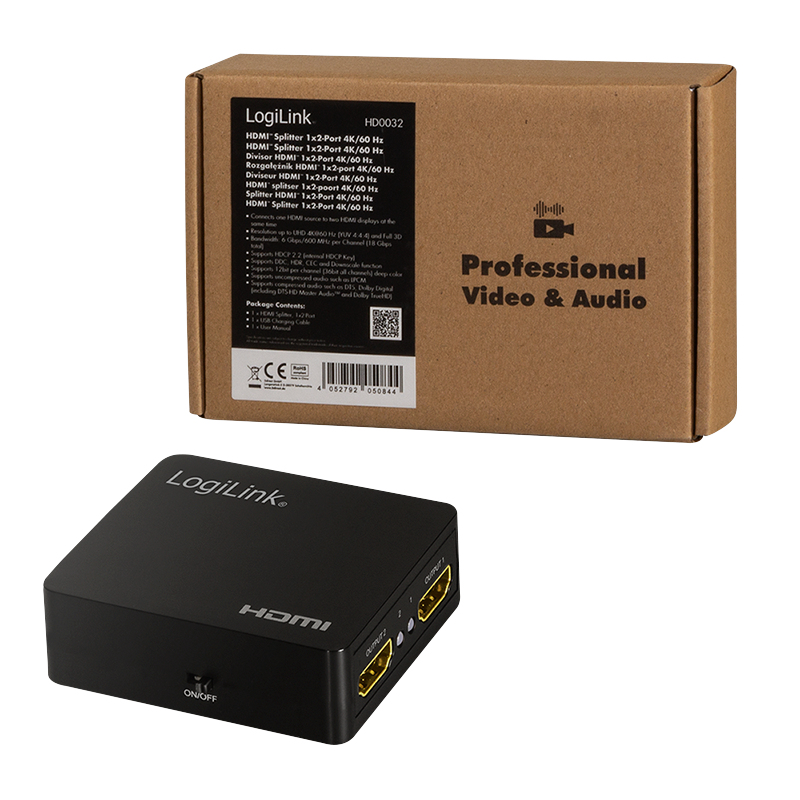

Packaging content
| Specification | Value |
|---|---|

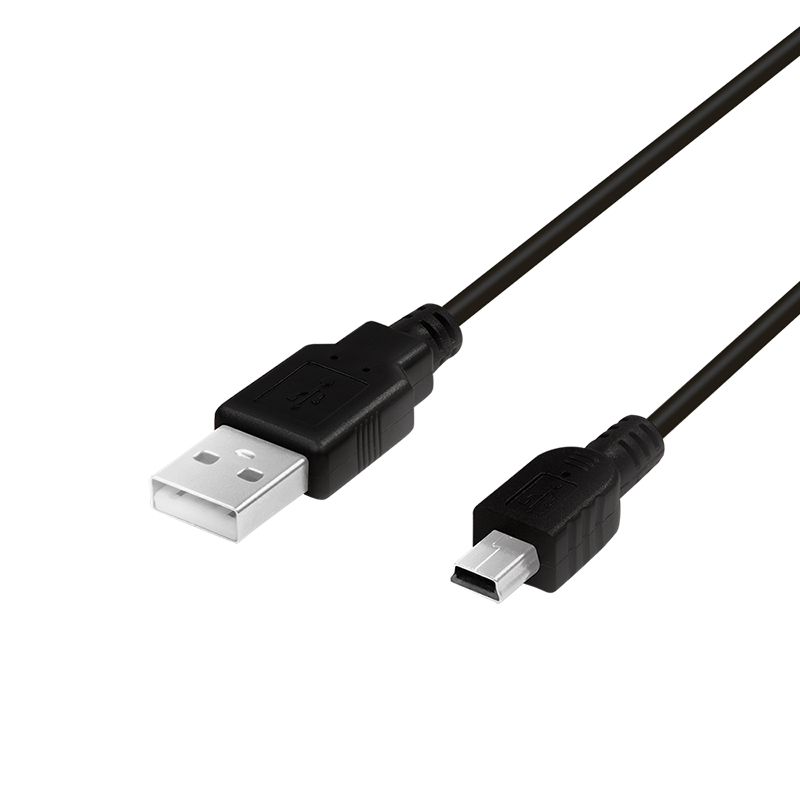

| Cables included | USB |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
