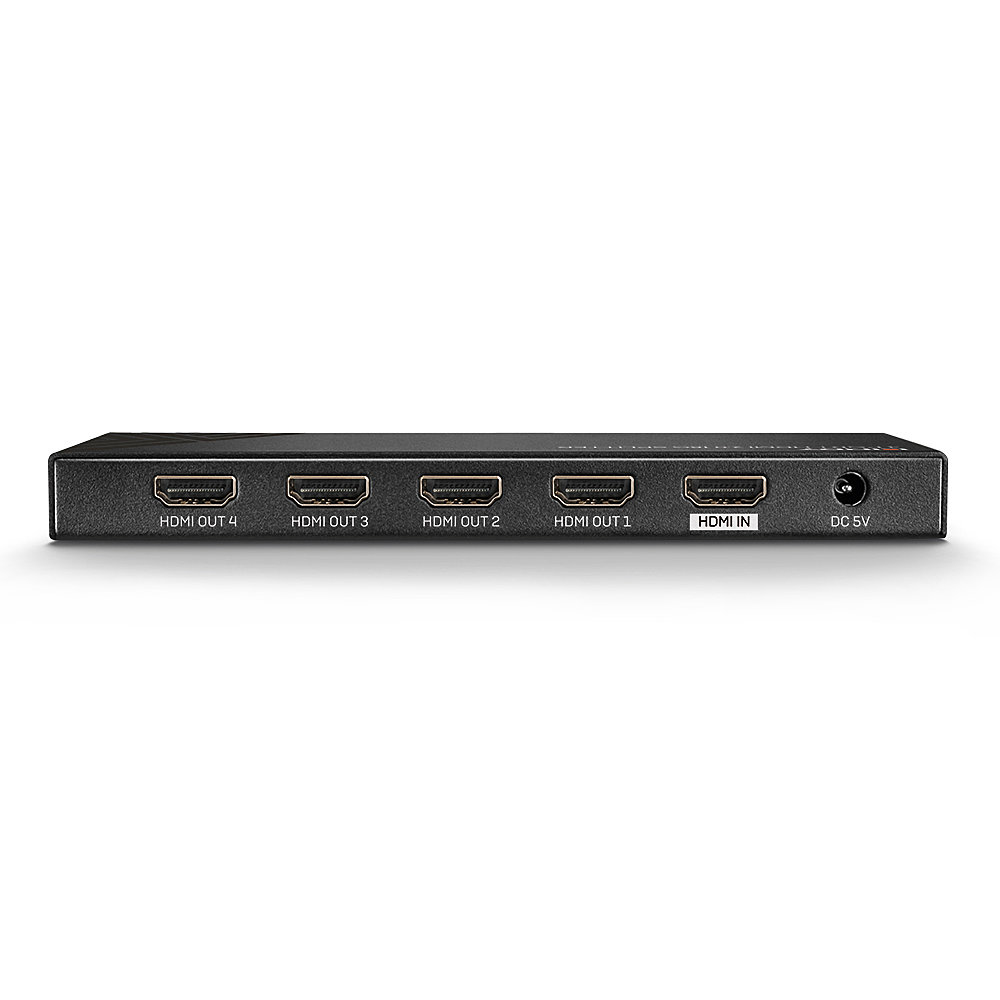

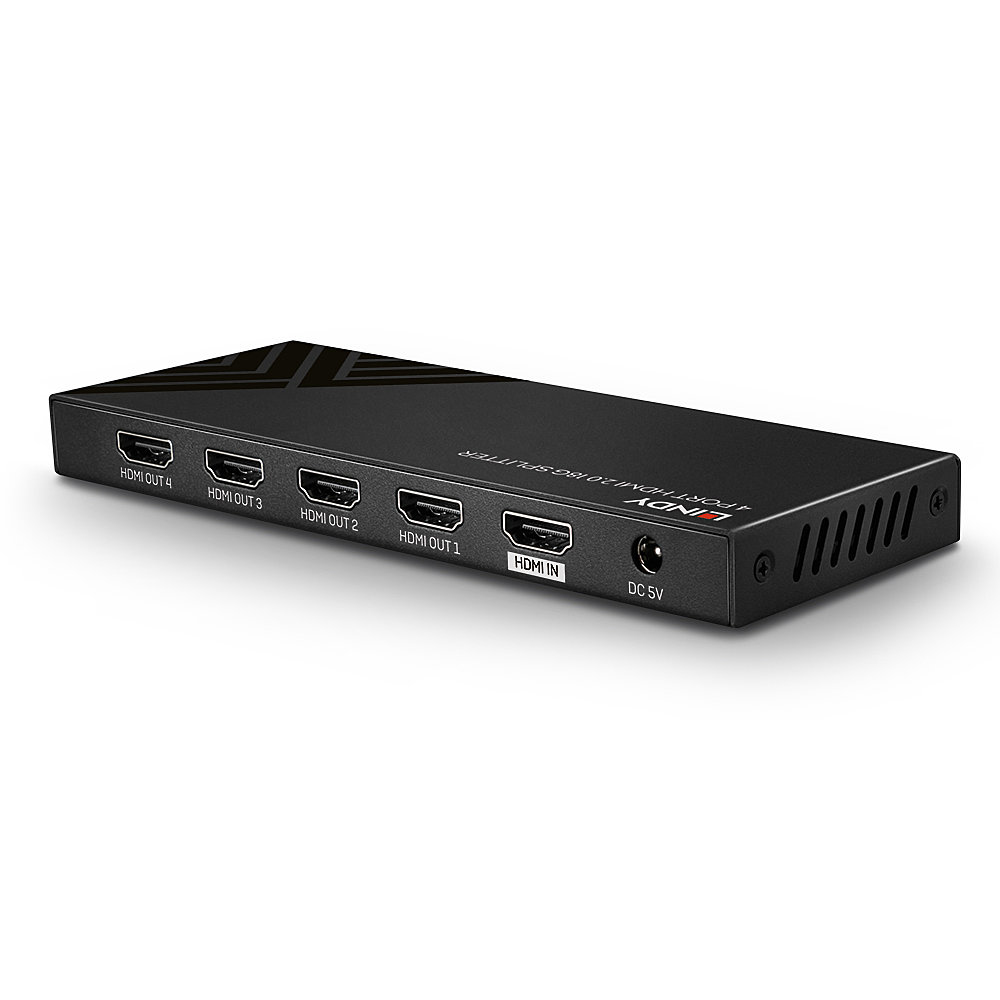

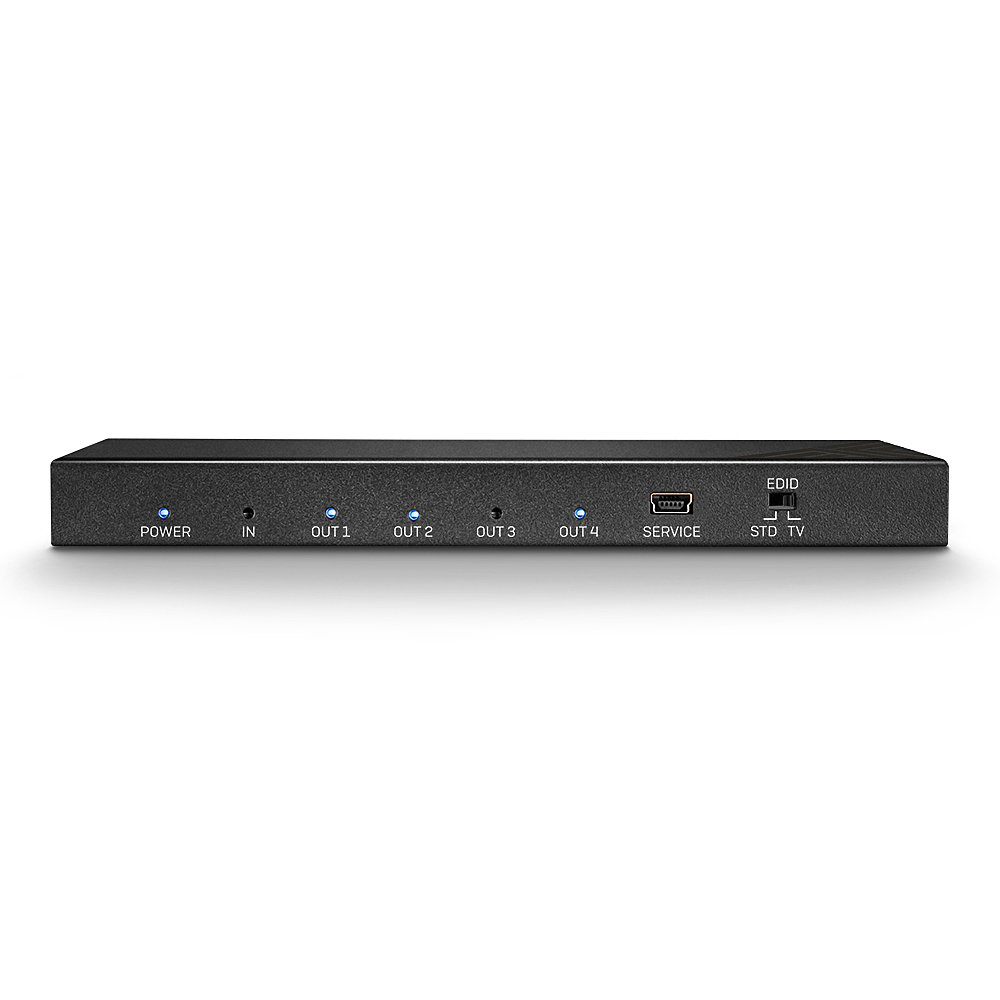

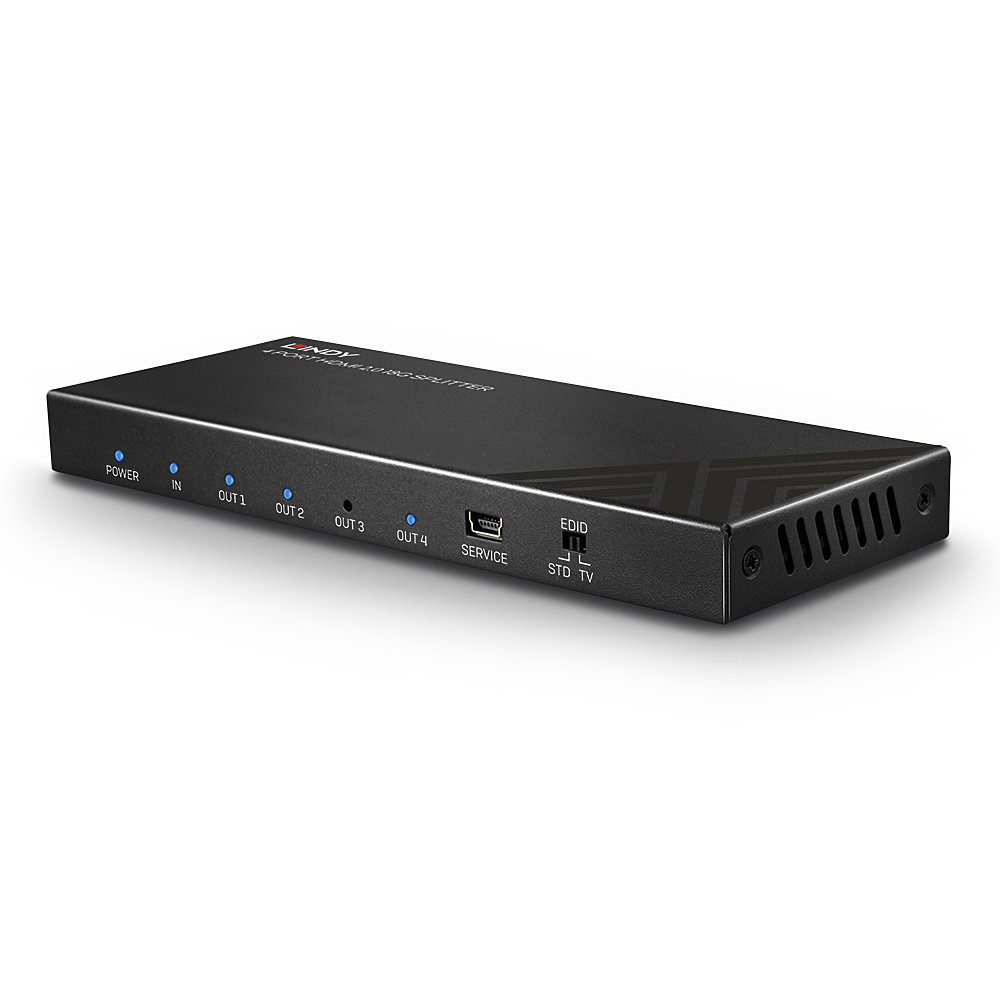

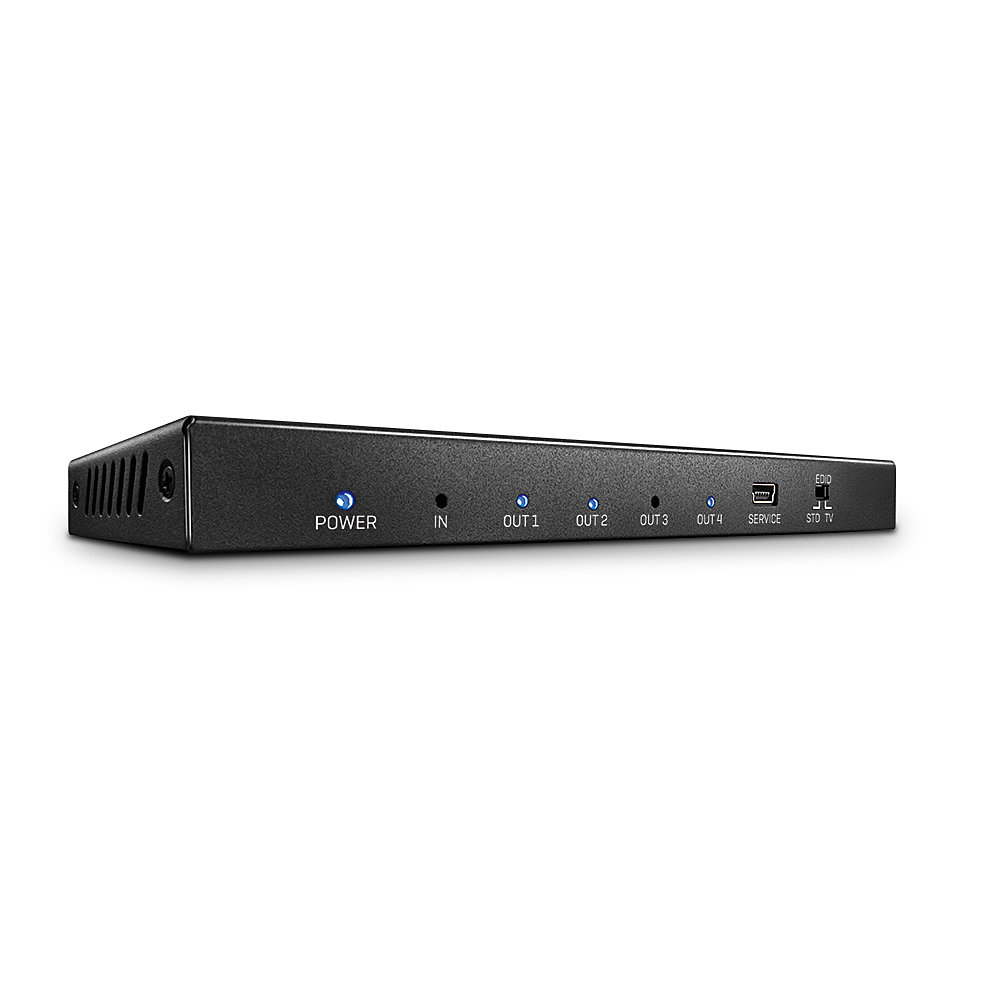

4 Port HDMI 18G Splitter
Model 38236EAN 4002888382366
30 specifications
- Weight373 g
- ColourBlack
- Video ports quantity5
- AC input voltage5 V
- Width163 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 373 g
- Colour
- Black
- Video ports quantity
- 5
- AC input voltage
- 5 V
- Width
- 163 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Lindy
- Category
- Video Splitter
- Model
- 38236
- Part number
- 38236
- EAN / UPC
- 4002888382366
- Also known as
- Lindy 4 Port HDMI 18G Splitter
Specifications
30 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 5 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.0 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, REACH, California Proposition 65 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Input current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163 mm |
| Depth | 63 mm |
| Height | 16 mm |
| Weight | 373 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 248 mm |
| Package depth | 55 mm |
| Package height | 183 mm |
| Package weight | 526 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
