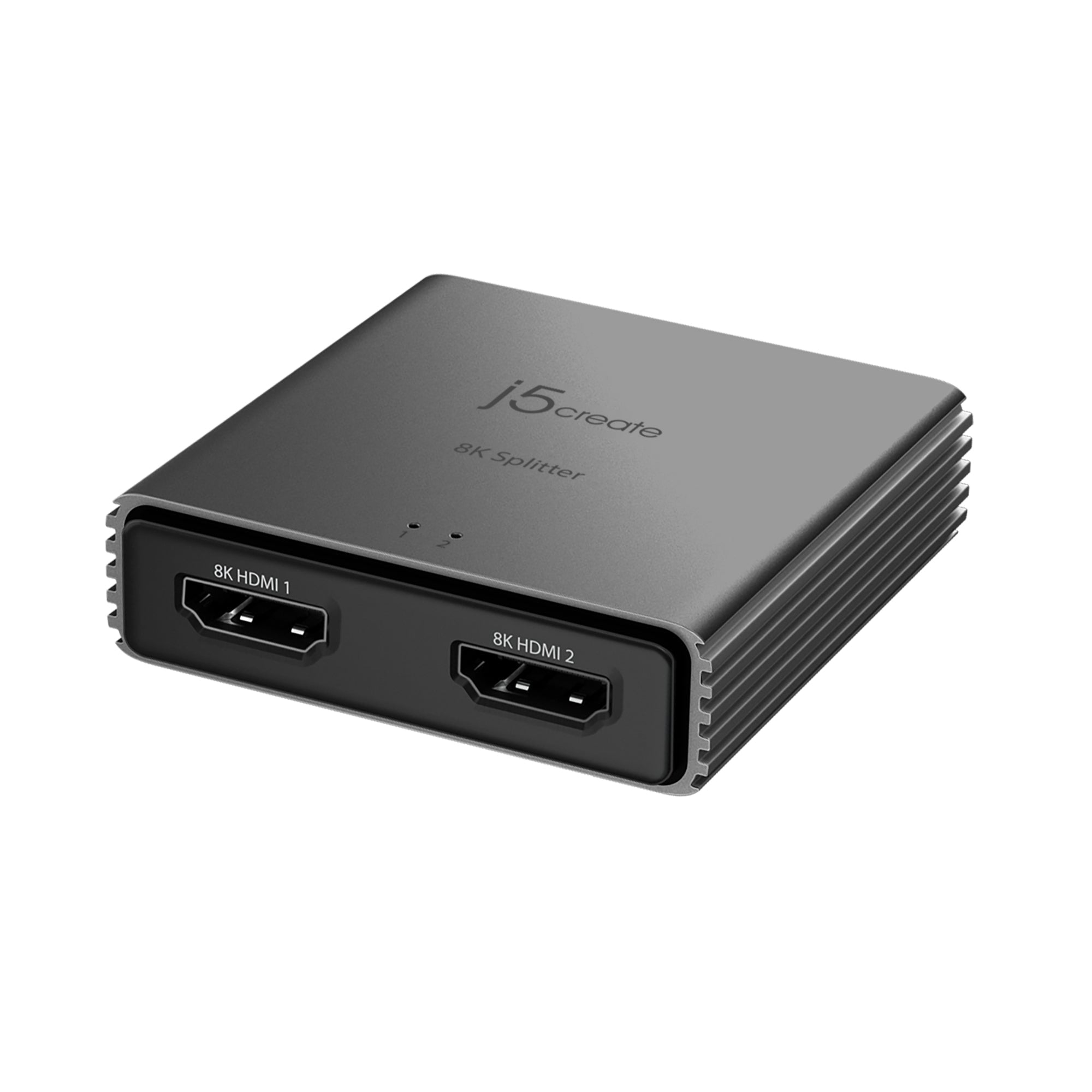

JDSH812 video splitter HDMI 2x HDMI
Model JDSH812EAN 4712795088786
23 specifications
- Weight45 g
- ColourGrey
- Video ports quantity1
- Width57.4 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 45 g
- Colour
- Grey
- Video ports quantity
- 1
- Width
- 57.4 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- j5create
- Category
- Video Splitter
- Model
- JDSH812
- Part numbers
- JDSH812, JDSH812-N
- EAN / UPC
- 4712795088786
- Also known as
- j5create JDSH812 video splitter HDMI 2x HDMI
Specifications
23 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 1 |
| Video port type | HDMI |
| Video out | 2x HDMI |
Features
| Specification | Value |
|---|---|
| Product colour | Grey |
| Housing material | Aluminium |
| Maximum resolution | 7680 x 4320 pixels |
| HD type | 8K Ultra HD |
| Maximum refresh rate | 240 Hz |
| HDCP version | 1.4/2.2/2.3 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma Pro (HLG Pro), Dolby Vision |
| Audio decoders | DTS-HD, Dolby TrueHD, DTS, Dolby AC3, DSD |
| Number of displays supported | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57.4 mm |
| Depth | 56.5 mm |
| Height | 16 mm |
| Weight | 45 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|

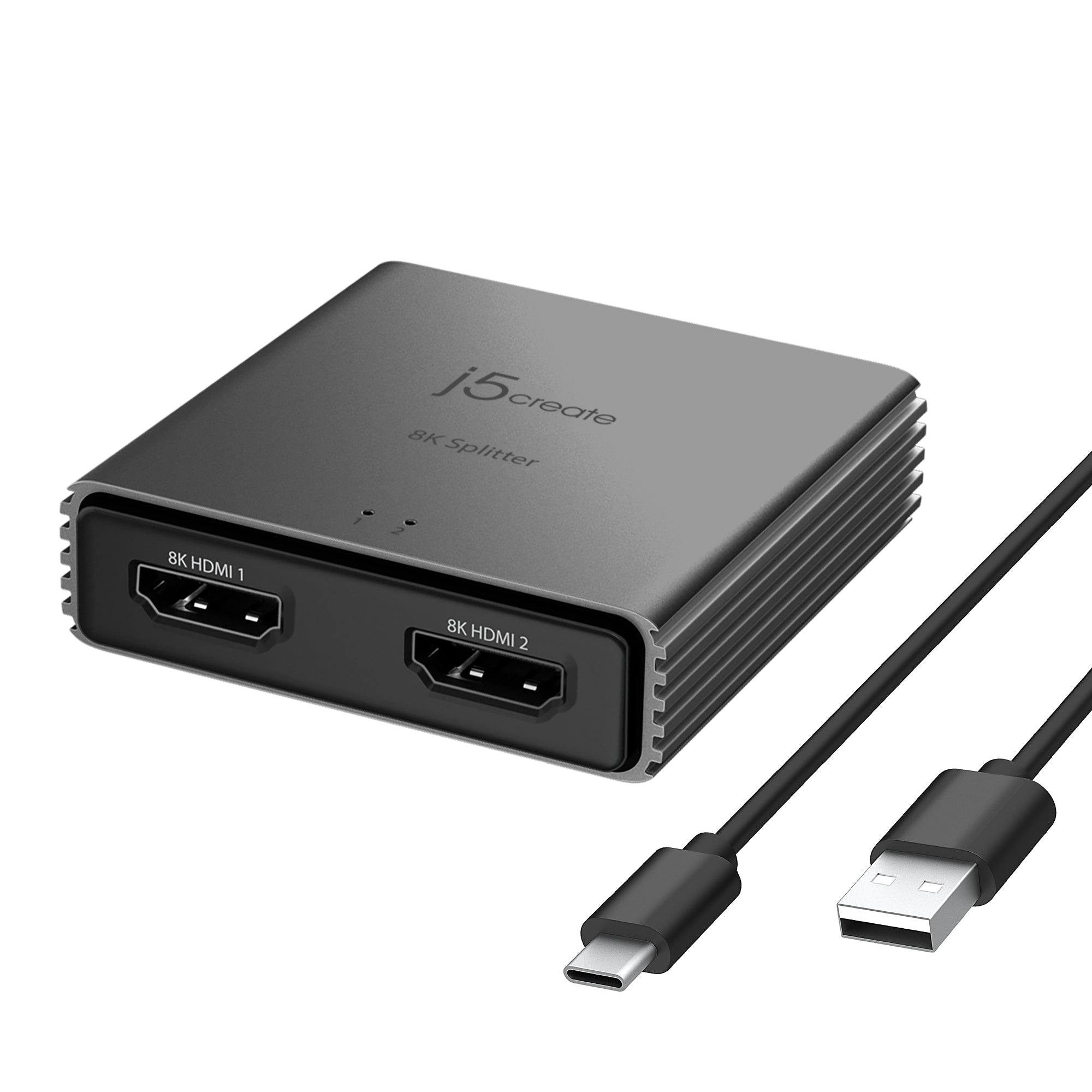

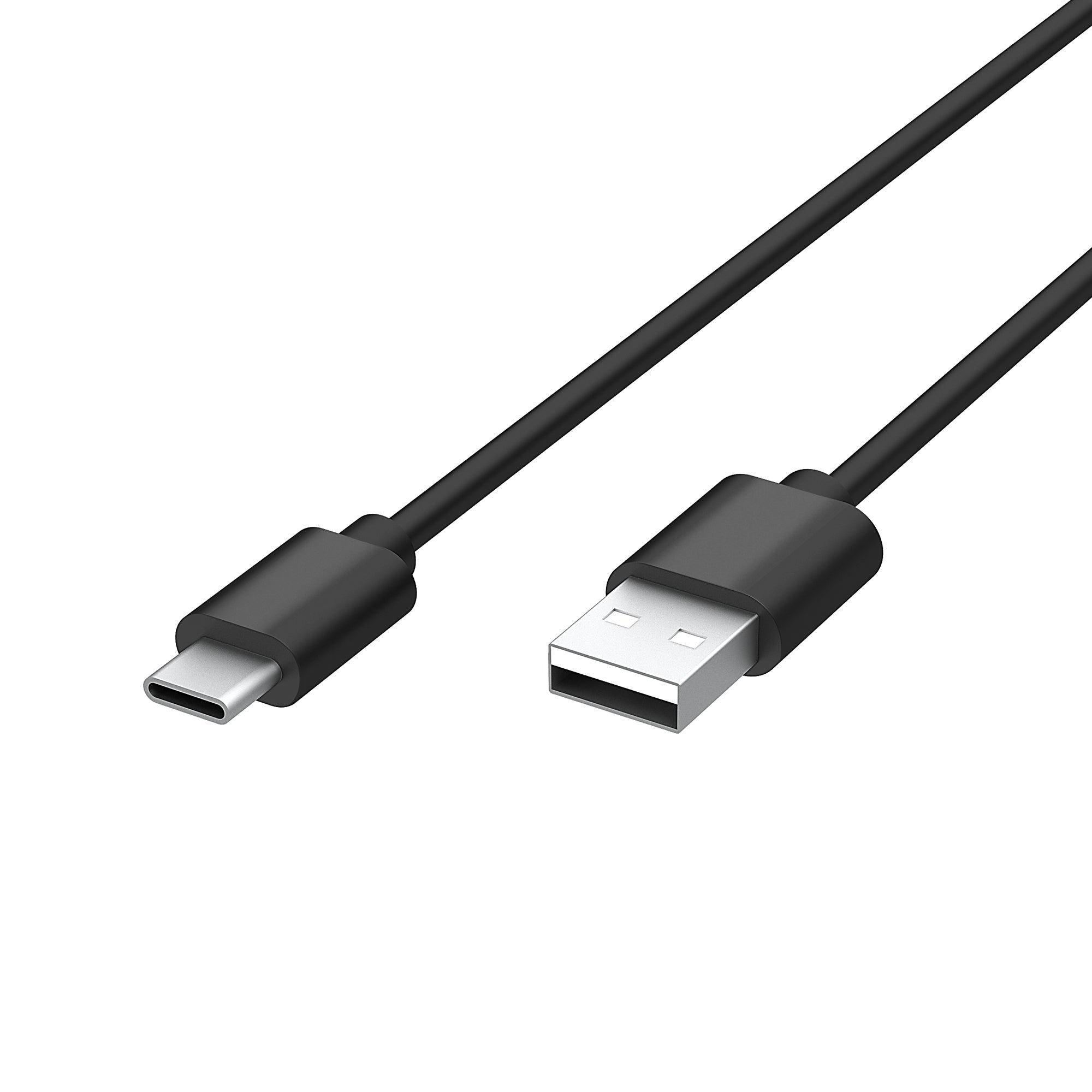

| Cables included | USB Type-A to DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
