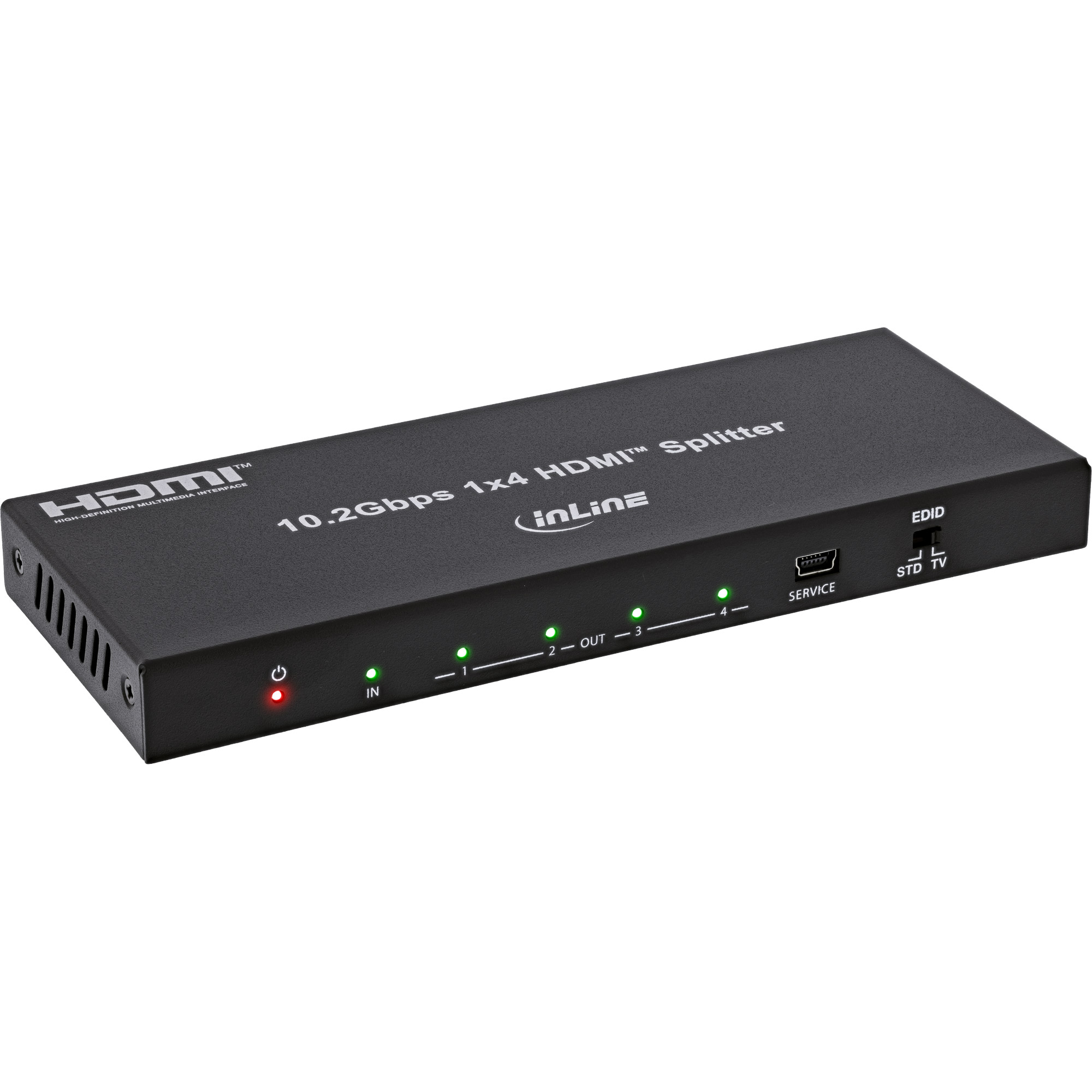

57887B video splitter HDMI 4x HDMI
Model 57887BEAN 4043718348848
39 specifications
- Weight256 g
- Video ports quantity1
- Maximum resolution3840 x 2160 pixels
- AC input voltage100 - 240 V
- Width64 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 256 g
- Video ports quantity
- 1
- Maximum resolution
- 3840 x 2160 pixels
- AC input voltage
- 100 - 240 V
- Width
- 64 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- InLine
- Category
- Video Splitter
- Model
- 57887B
- Part number
- 57887B
- EAN / UPC
- 4043718348848
- Also known as
- InLine 57887B video splitter HDMI 4x HDMI
Specifications
39 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 1 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 1.4 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| 3D | Yes |
| Colour depth | 12 bit |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.4 |
| Extended display identification data (EDID) | Yes |
| Data transfer rate | 10.2 Gbit/s |
| Audio decoders | Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, DSD |
| HDCP | Yes |
| Dolby technologies | Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio |
| LED indicators | Power, Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (max) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 64 mm |
| Depth | 164 mm |
| Height | 17 mm |
| Dimensions (WxDxH) | 64 x 164 x 17 mm |
| Weight | 256 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 123 mm |
| Package depth | 213 mm |
| Package height | 60 mm |
| Package weight | 432 g |
| Package volume | 1600 cm³ |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Packaging content | 1 x HDMI splitter 1 x power supply (DC 5 V / 1 A) 1 x user manual (German/English) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
