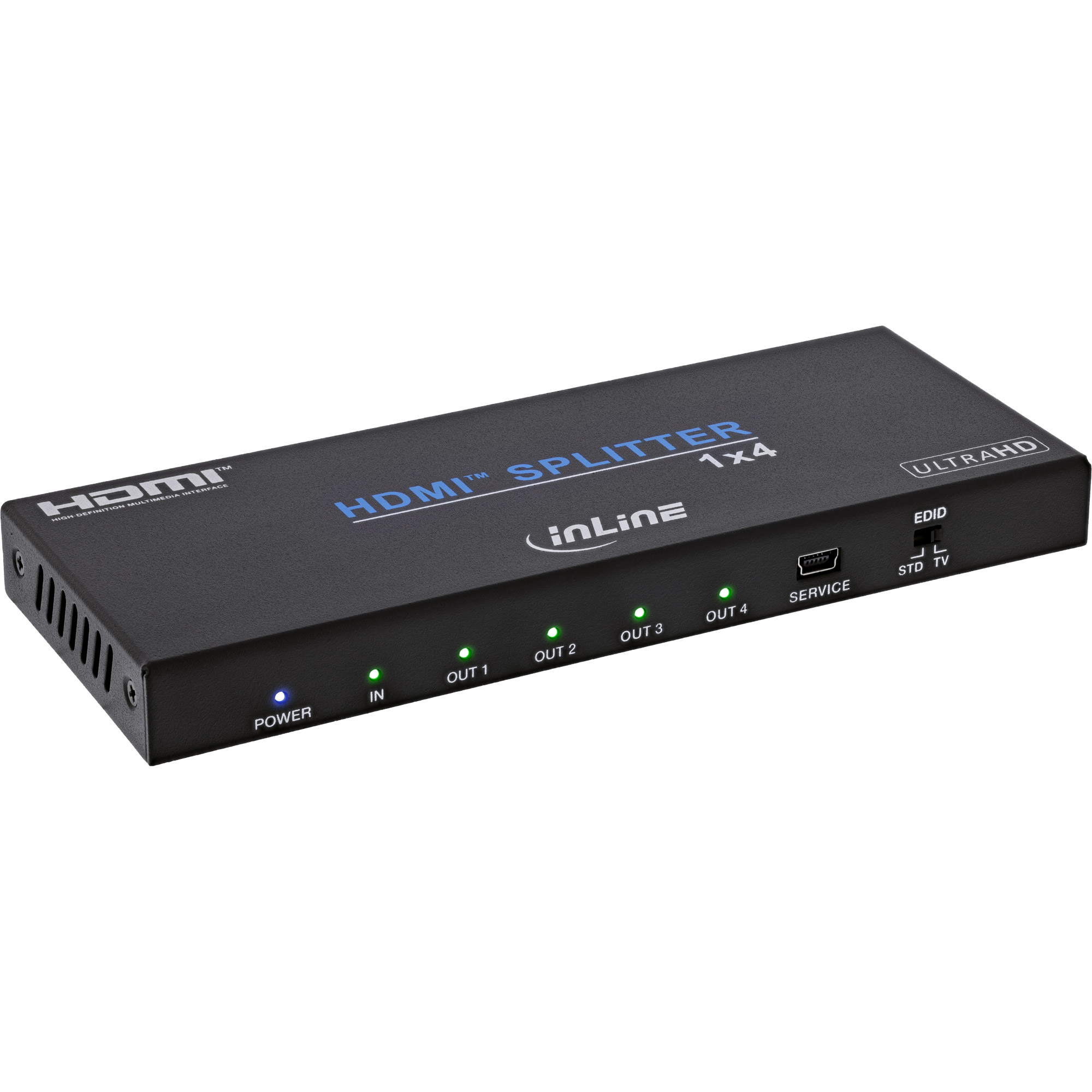

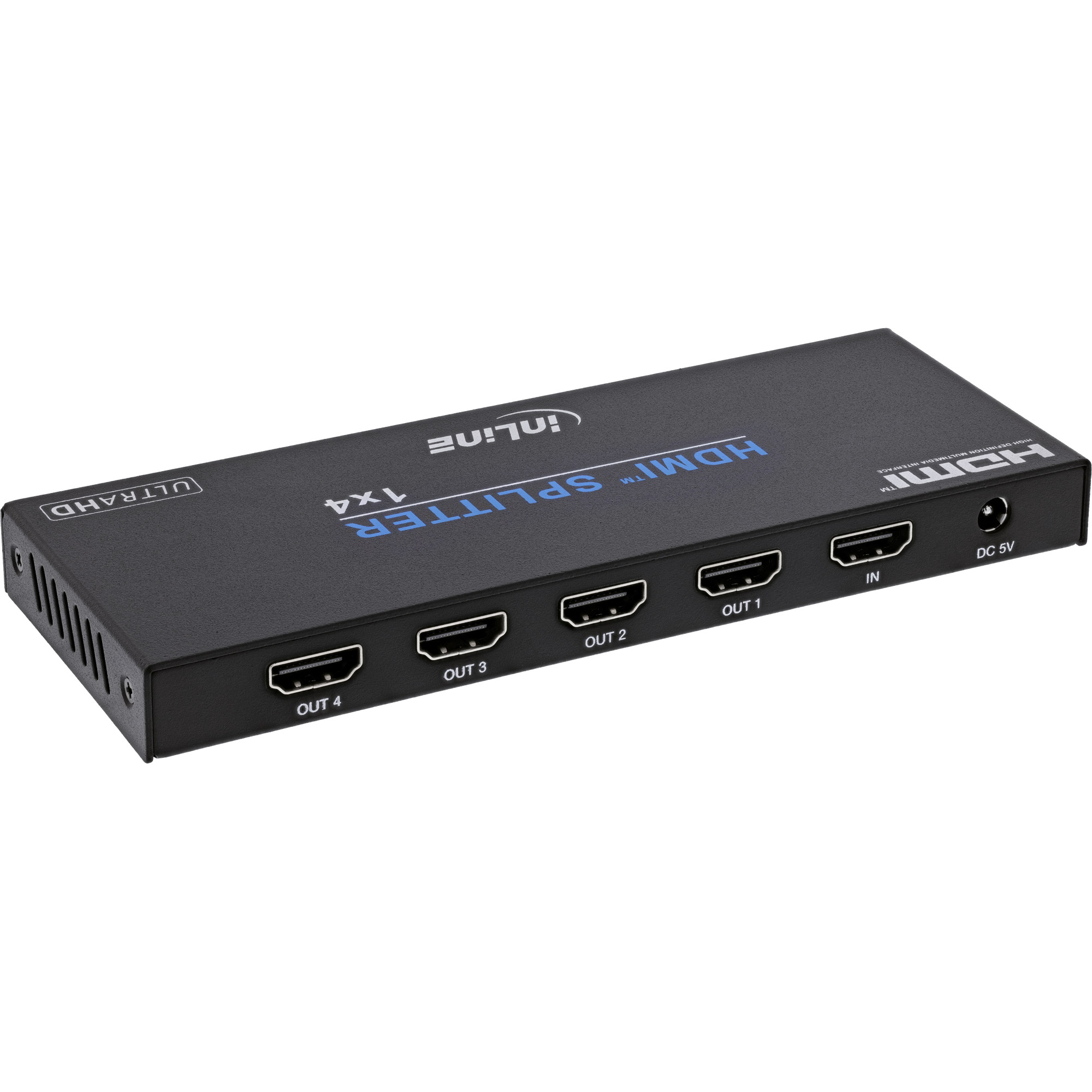

57887A video splitter HDMI 4x HDMI
Model 57887AEAN 4043718348831
41 specifications
- Weight252 g
- ColourBlack
- Video ports quantity1
- AC input voltage100 - 240 V
- Width63 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 252 g
- Colour
- Black
- Video ports quantity
- 1
- AC input voltage
- 100 - 240 V
- Width
- 63 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- InLine
- Category
- Video Splitter
- Model
- 57887A
- Part number
- 57887A
- EAN / UPC
- 4043718348831
- Also known as
- InLine 57887A video splitter HDMI 4x HDMI
Specifications
41 specifications in 8 groups

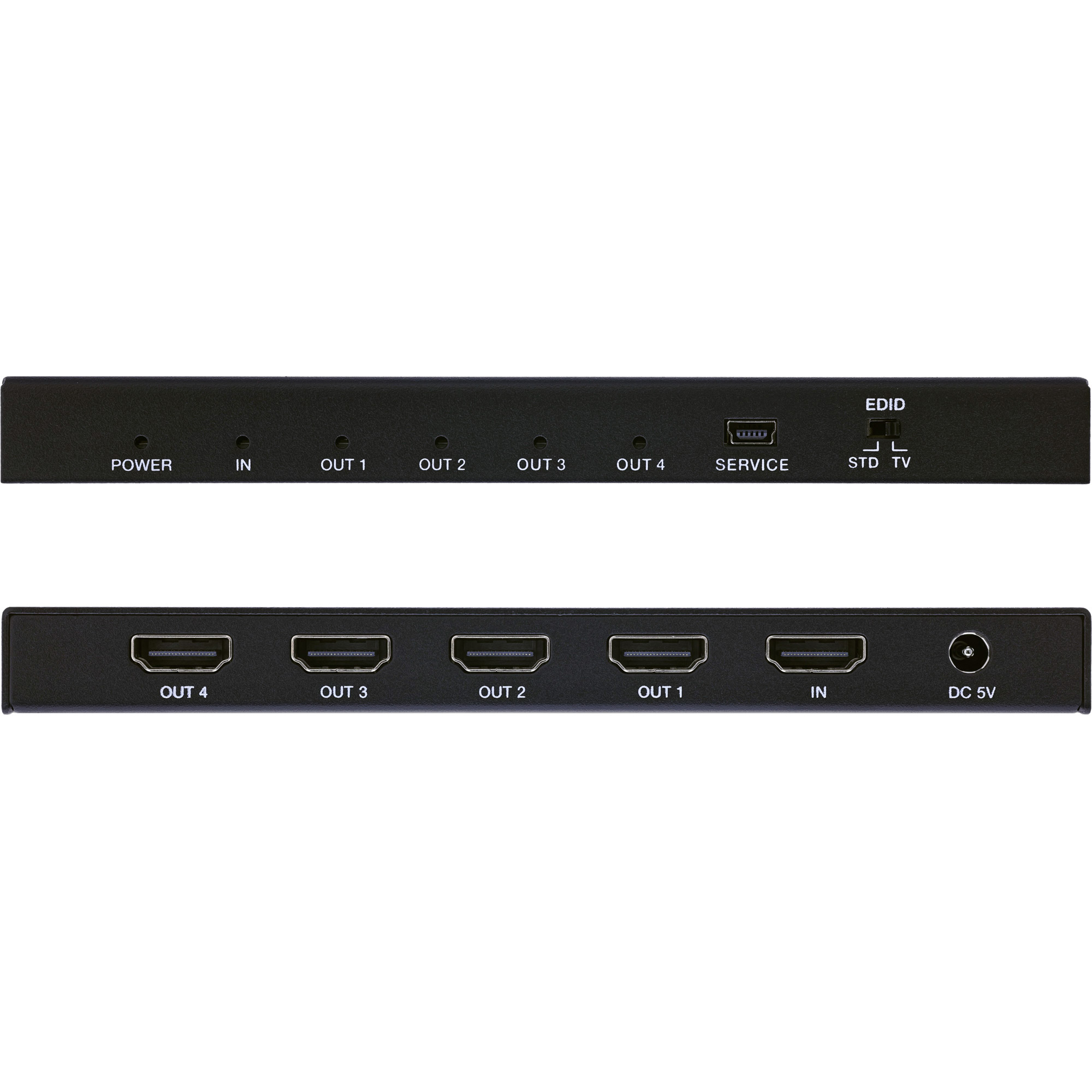

Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 1 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.0b |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 3840 x 2160 pixels |
| 3D | Yes |
| Colour depth | 8 bit |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Data transfer rate | 18 Gbit/s |
| Audio decoders | Dolby TrueHD, DTS-HD Master Audio |
| HDCP | Yes |
| Dolby technologies | Dolby TrueHD, DTS-HD Master Audio |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (max) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 63 mm |
| Depth | 163 mm |
| Height | 16 mm |
| Dimensions (WxDxH) | 63 x 163 x 16 mm |
| Weight | 252 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 150 mm |
| Package depth | 215 mm |
| Package height | 55 mm |
| Package weight | 431 g |
| Package volume | 1800 cm³ |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |

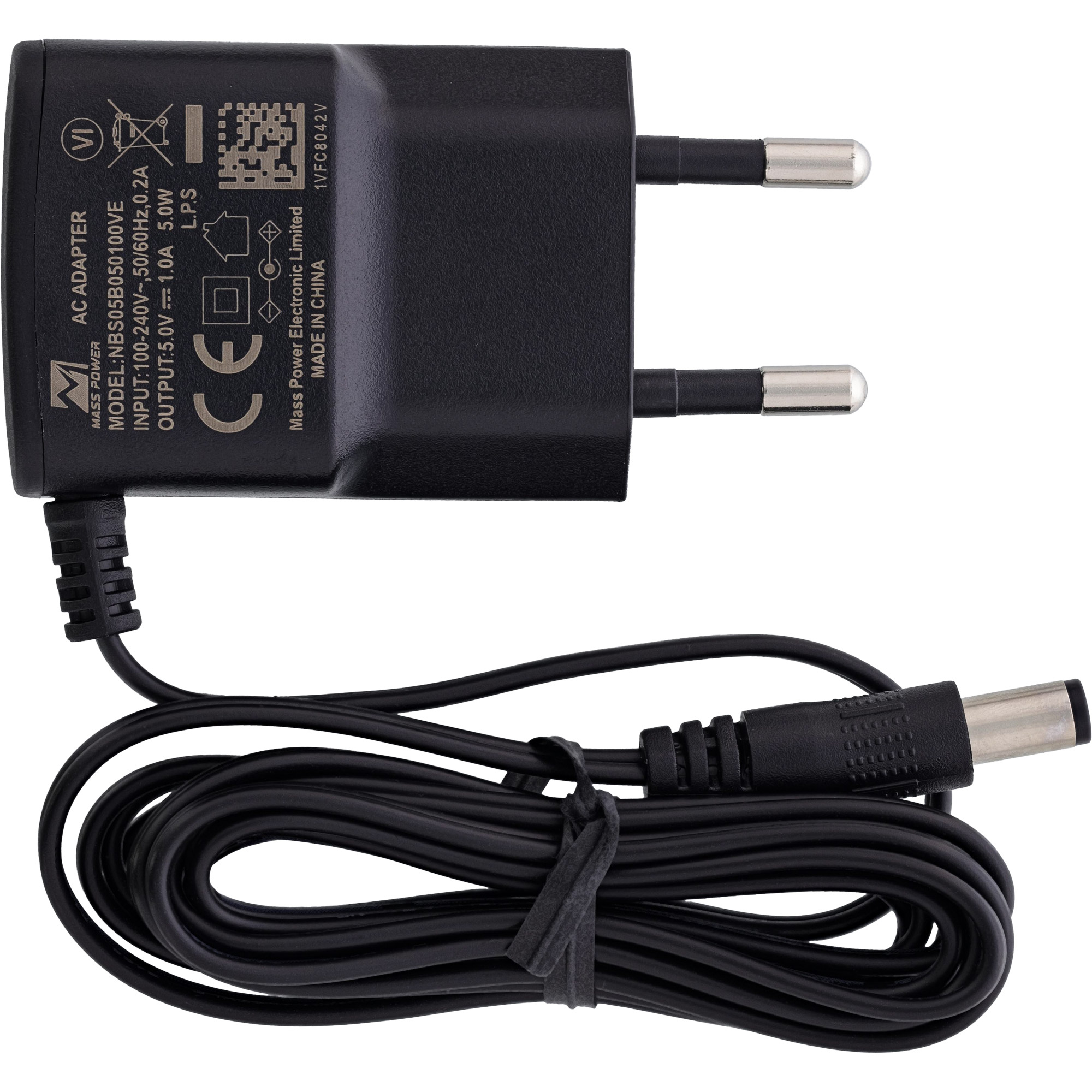

| Packaging content | 1 x 1x4 HDMI splitter 1 x power supply (DC 5.0 V / 1.0 A) 1 x user manual (German/English) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Similar products
All video splitters
Philips by Signify

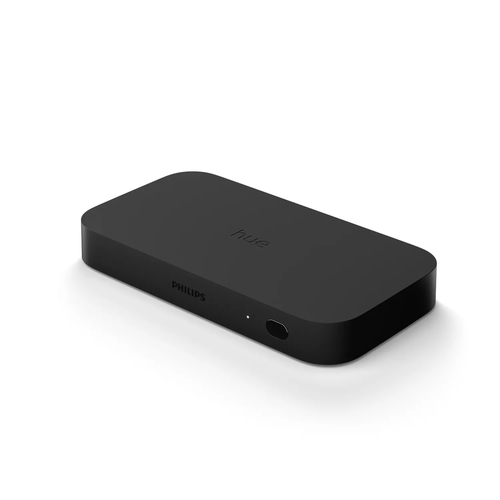

Philips 8718699707248 video splitter HDMI
Model 8718699707248
- Weight
- 455 g
- Colour
- Black
- Video ports quantity
- 4
Philips by Signify

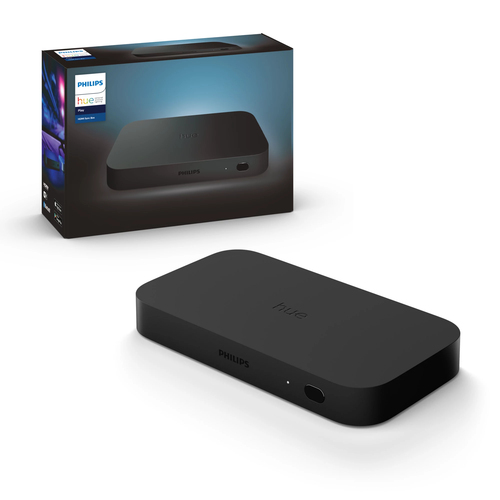

Philips 6922341916991 video splitter 4x HDMI
Model 6922341916991
- Weight
- 455 g
- Colour
- Black
- Video ports quantity
- 4

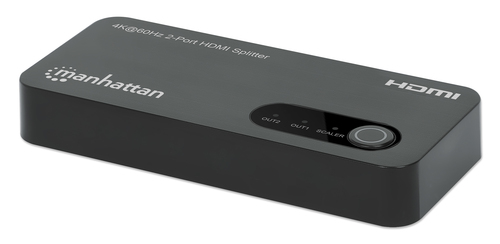

Manhattan
4K@60Hz 2-Port HDMI Splitter Splits One HDMI Input to Two HDMI Outputs (1x2)
Model 207614
- Weight
- 47 g
- Colour
- Black
- Video ports quantity
- 2
ATEN

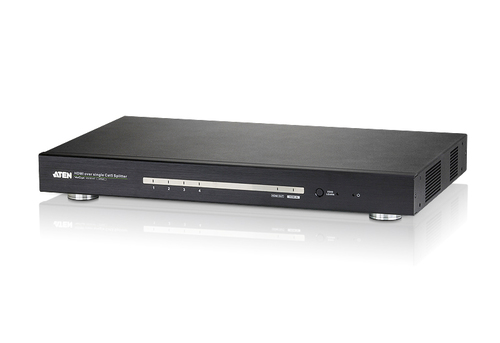

8-Port HDMI CAT5e/6 Splitter over Single Cat Cable / 4K / RS232 / HDBaseT
