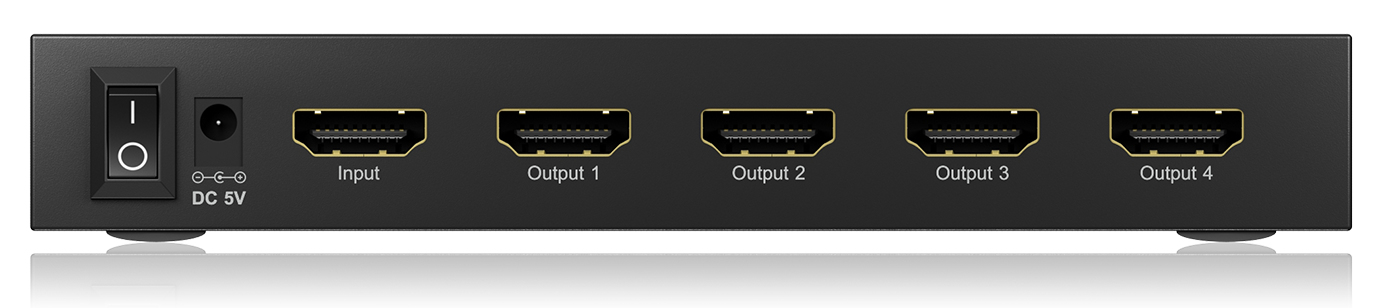

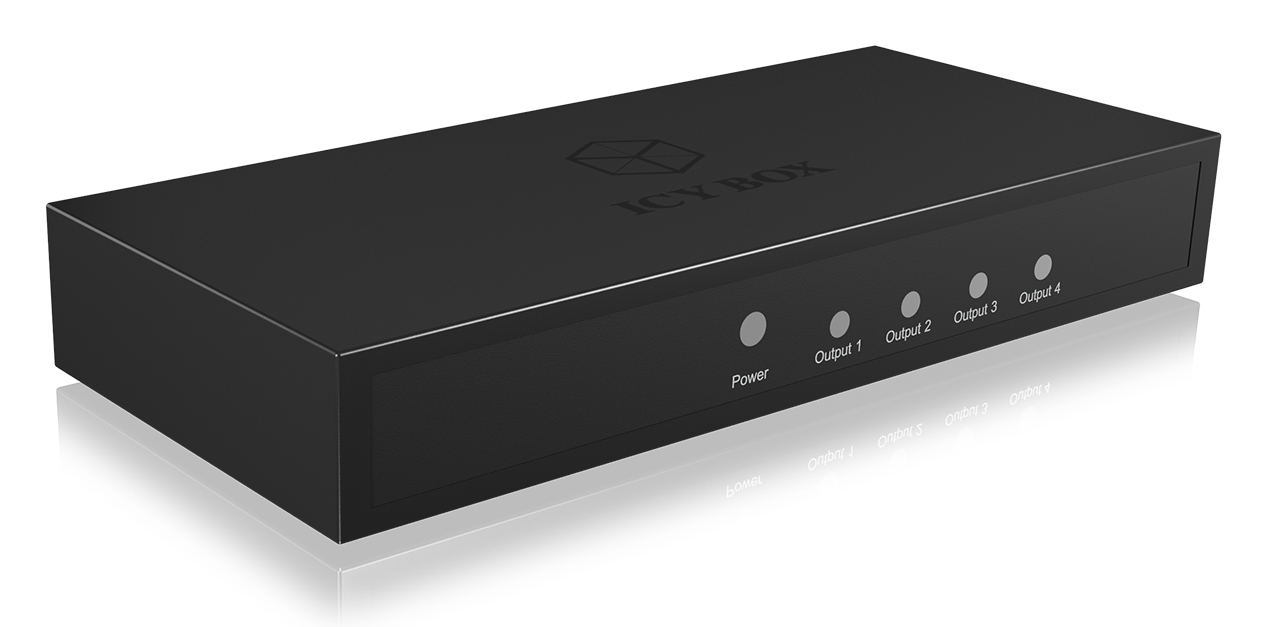

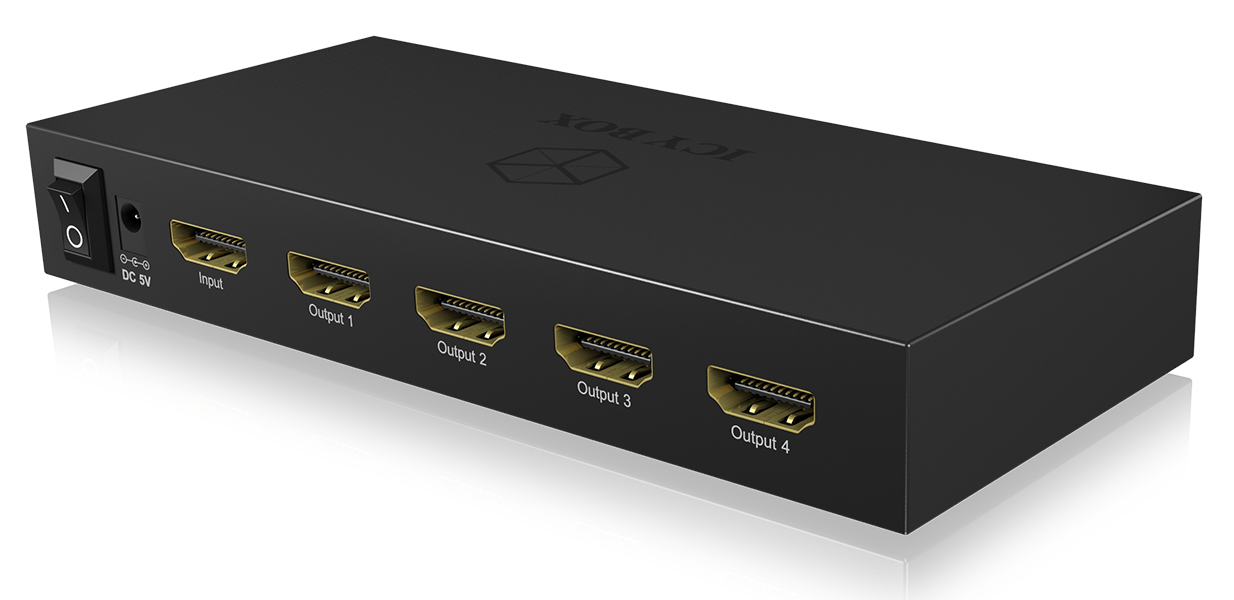

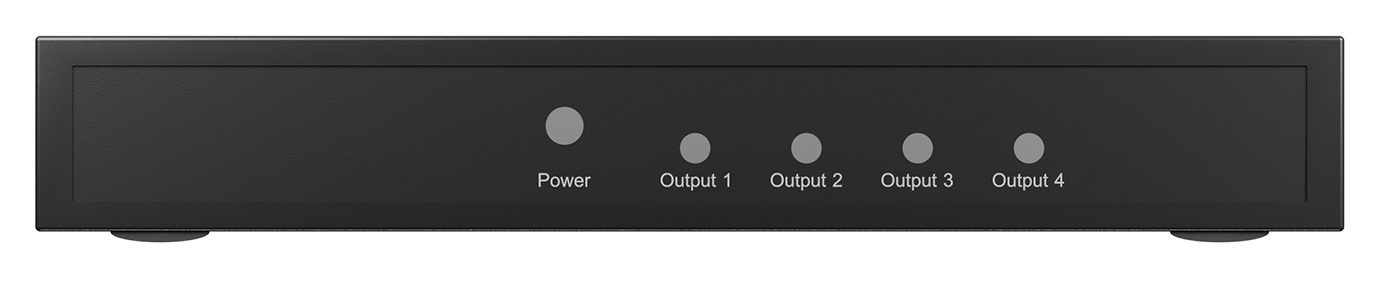

IB-SPL1041 HDMI 4x HDMI
Model IB-SPL1041Part no. 60220EAN 4250078165590
30 specifications
- Weight281 g
- ColourBlack
- Video ports quantity5
- AC input voltage5 V
- Dimensions (WxDxH)155 x 70 x 23 mm
Overview
- Weight
- 281 g
- Colour
- Black
- Video ports quantity
- 5
- AC input voltage
- 5 V
- Dimensions (WxDxH)
- 155 x 70 x 23 mm
- Brand
- ICY BOX
- Category
- Video Splitter
- Model
- IB-SPL1041
- Part number
- 60220
- EAN / UPC
- 4250078165590
- Also known as
- ICY BOX IB-SPL1041 HDMI 4x HDMI
Specifications
30 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 5 |
| Video port type | HDMI |
| Video in | HDMI |
| Video out | 4x HDMI |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Full HD | Yes |
| Colour depth | 36 bit |
| Maximum refresh rate | 60 Hz |
| Cable length | 0.85 m |
| HDCP | Yes |
| LED indicators | Activity, Power |
| Power LED | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 720p, 1080p, 2160p |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Input current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 155 x 70 x 23 mm |
| Weight | 281 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 205 mm |
| Package depth | 185 mm |
| Package height | 55 mm |
| Package weight | 490 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 500 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 10.8 kg |
| Products per master (outer) case | 20 pc(s) |
