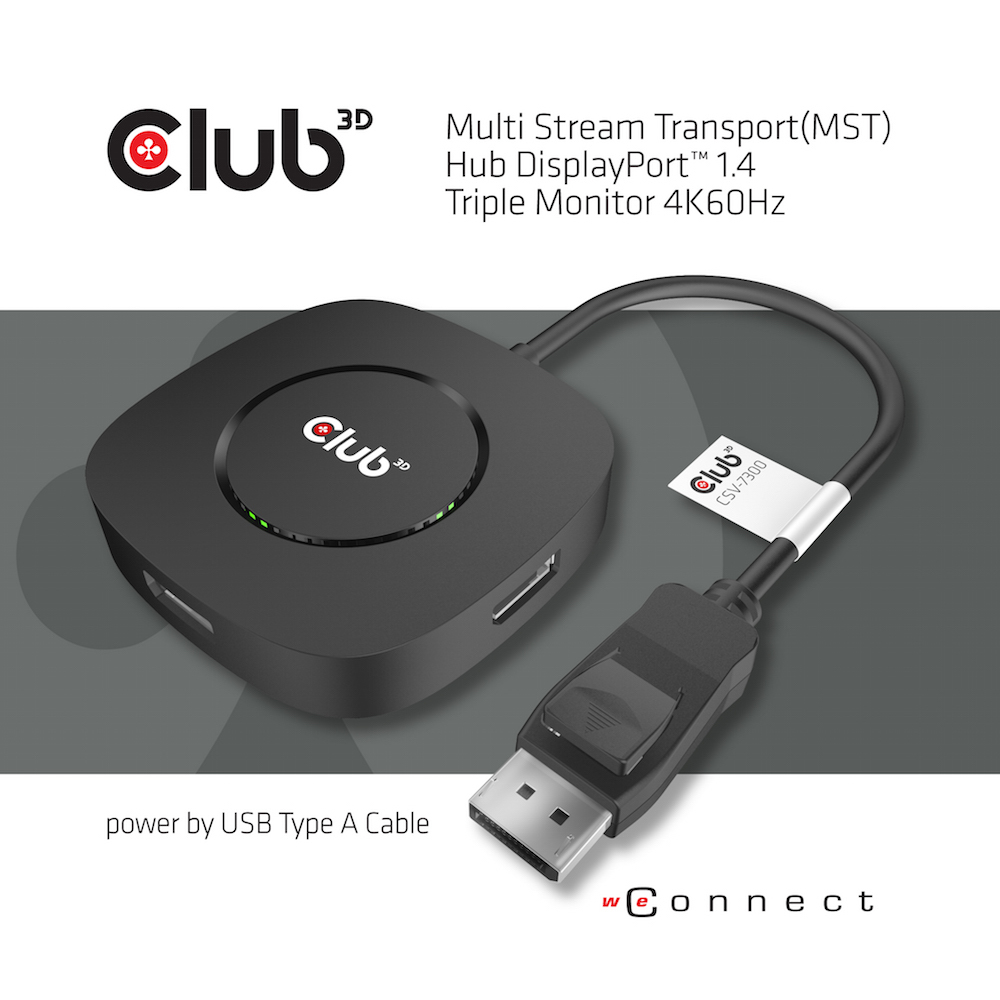

Multi Stream Transport(MST) Hub DisplayPort™ 1.4 Triple Monitor 4K60HZ
Model CSV-7300EAN 841615101597
33 specifications
- Weight68 g
- ColourBlack
- Video ports quantity3
- AC input voltage5 V
- Width79 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 68 g
- Colour
- Black
- Video ports quantity
- 3
- AC input voltage
- 5 V
- Width
- 79 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- CLUB3D
- Category
- Video Splitter
- Model
- CSV-7300
- Part number
- CSV-7300
- EAN / UPC
- 841615101597, 8719214471415
- Also known as
- CLUB3D Multi Stream Transport(MST) Hub DisplayPort™ 1.4 Triple Monitor 4K60HZ
Specifications
33 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 3 |
| Video port type | DisplayPort |
| Video out | 3x DisplayPort |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Thermoplastic elastomer (TPE) |

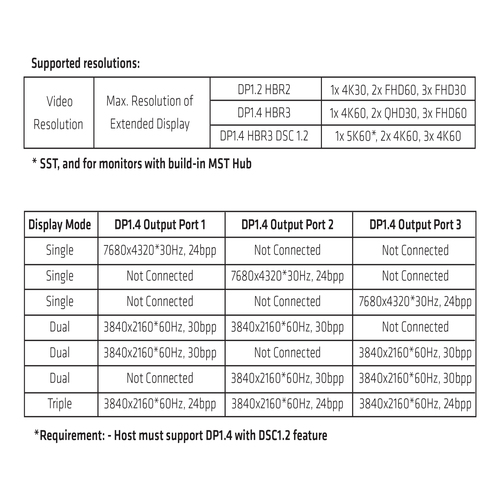

| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| LED indicators | Status |
| Plug and Play | Yes |
| Certification | FCC, CE EMI |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Input current | 2 A |
| USB powered | Yes |

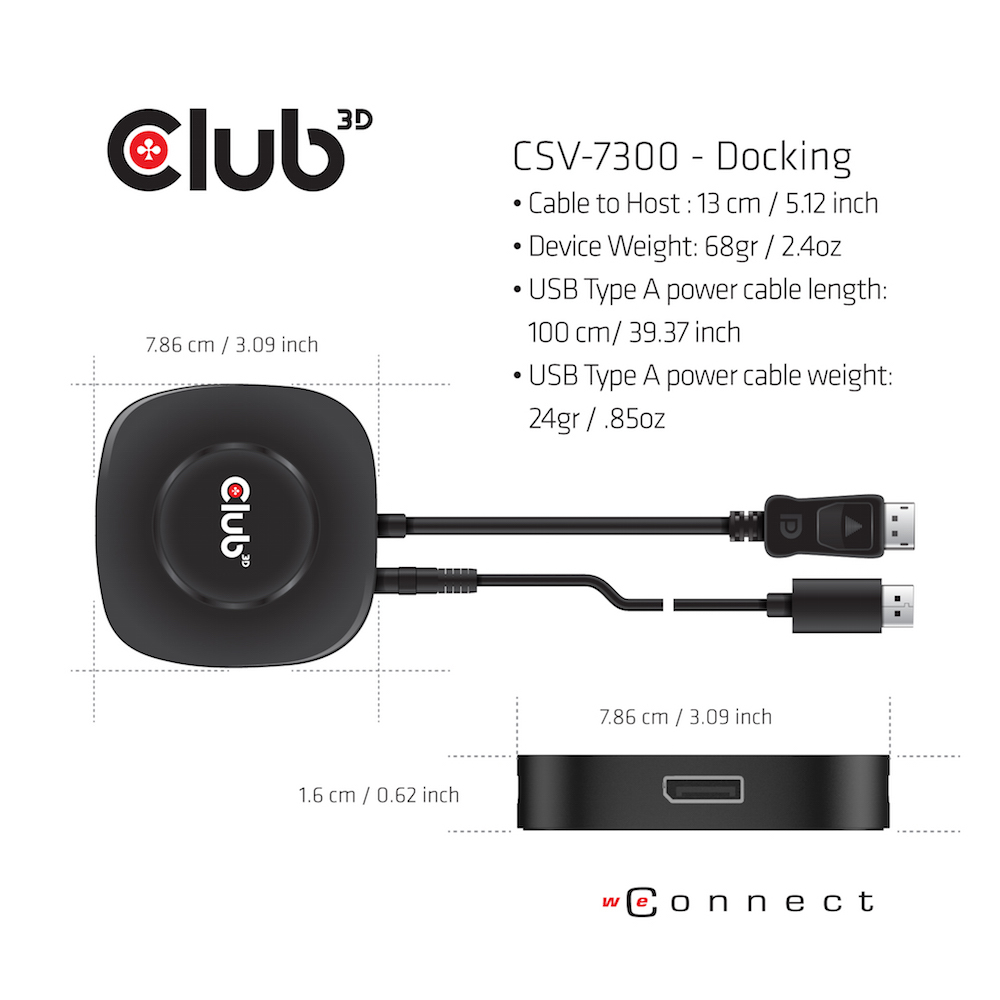

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 79 mm |
| Depth | 79 mm |
| Height | 17 mm |
| Weight | 68 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 145 mm |
| Package height | 45 mm |
| Package weight | 24 g |

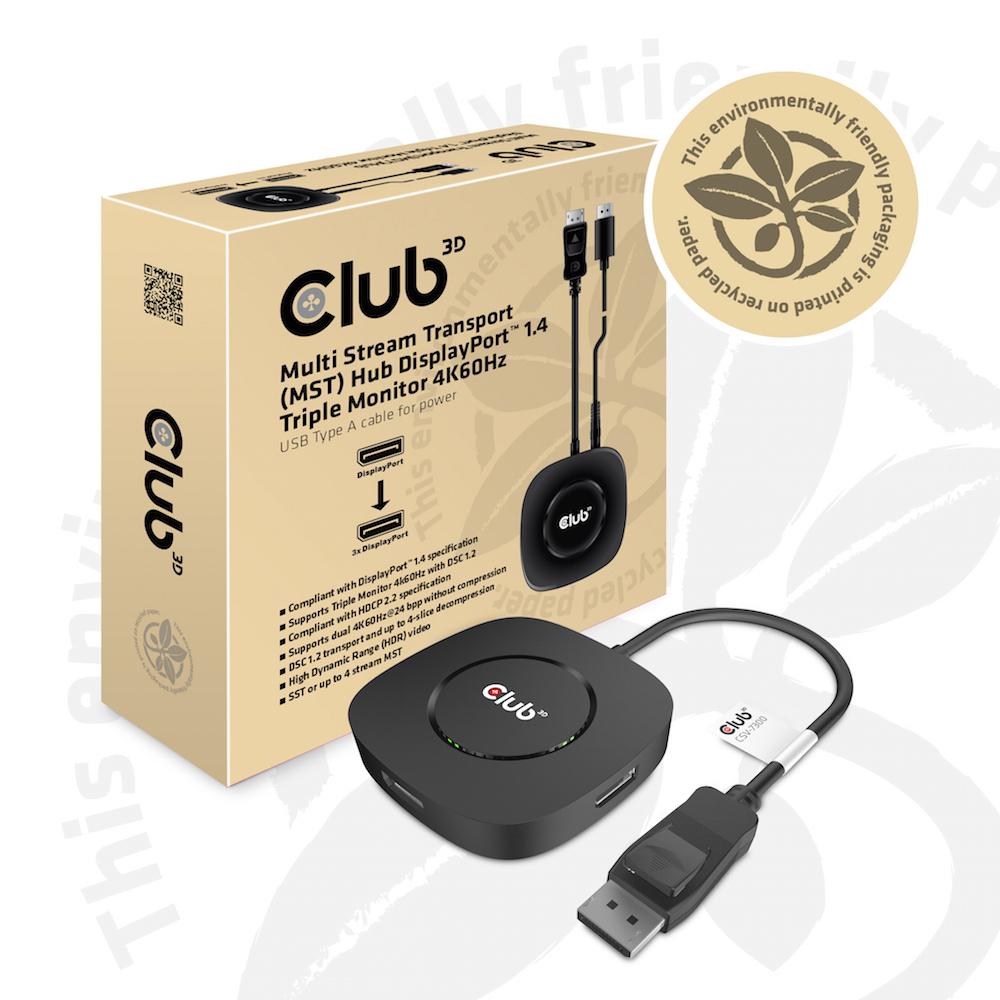

| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
| Cables included | USB |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
