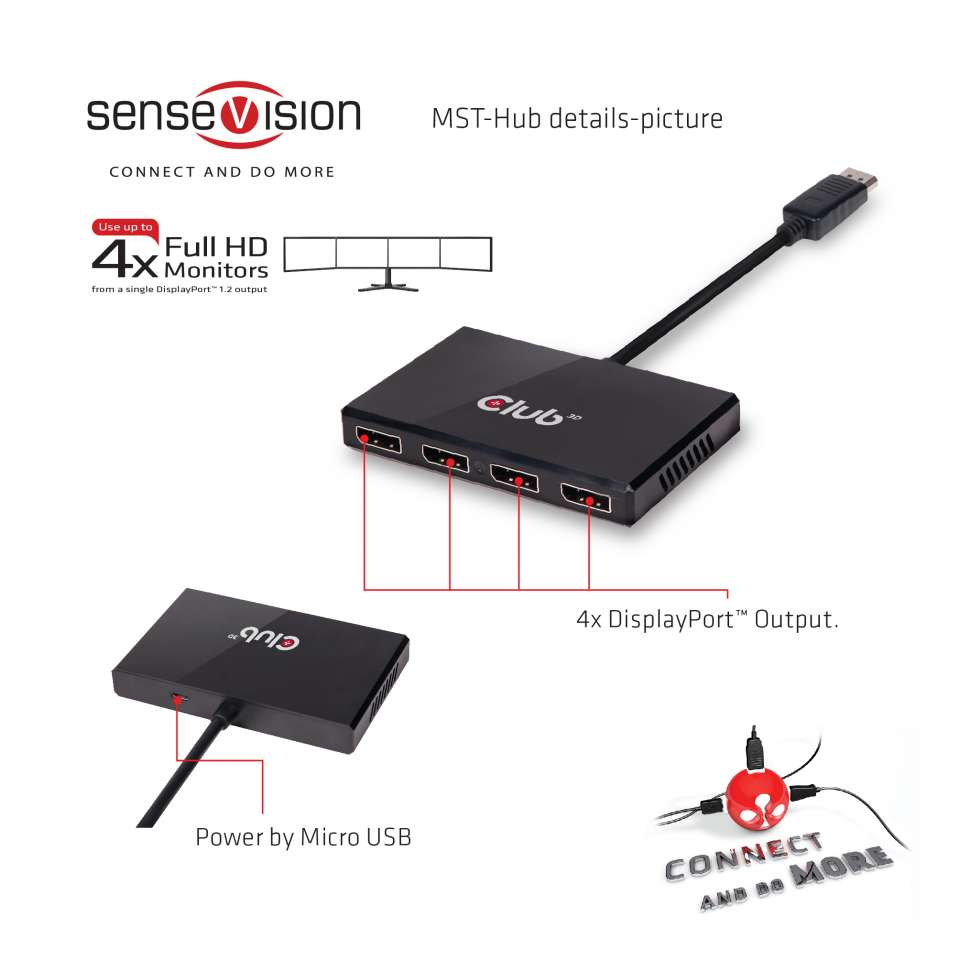

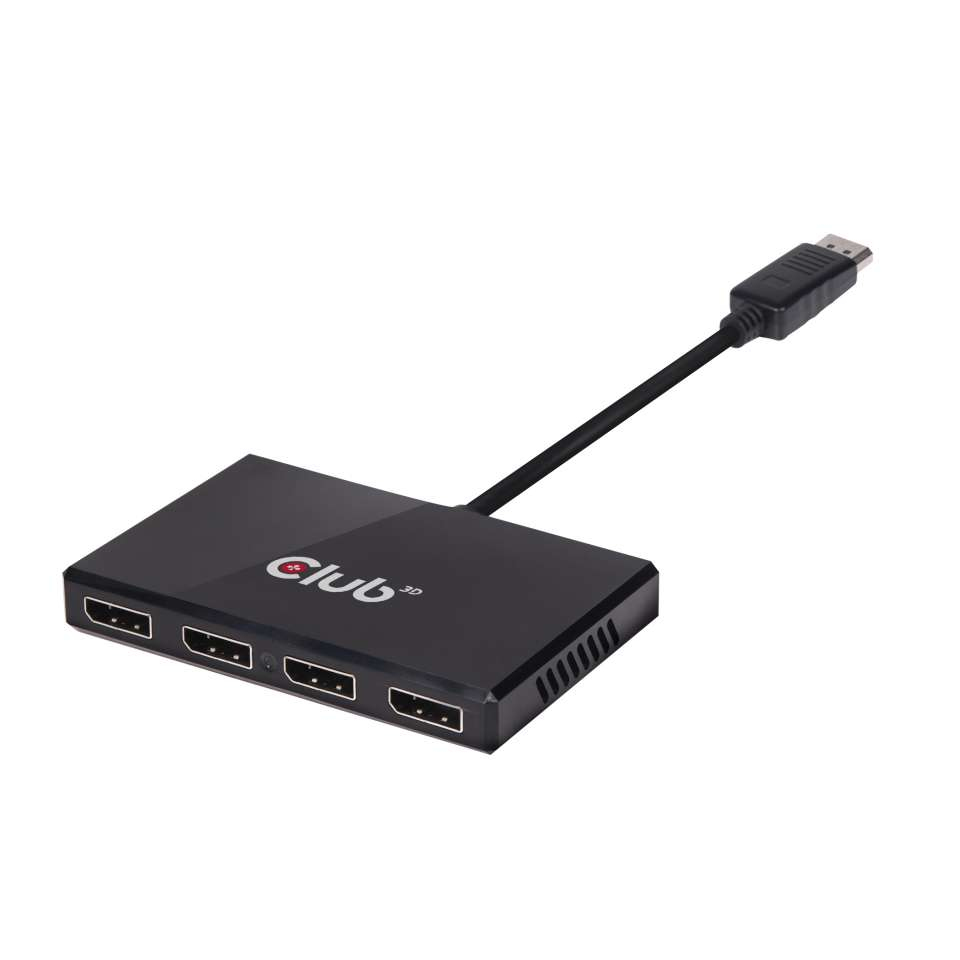

Multi Stream Transport Hub DisplayPort 1.2 Quad Monitor USB Powered
Model CSV-6400EAN 841615101085
34 specifications
- Weight134 g
- ColourBlack
- Video ports quantity4
- USB poweredYes
- Dimensions (WxDxH)65 x 104 x 14 mm
- Connection to system unitDisplayPort 1.2
Overview
- Weight
- 134 g
- Colour
- Black
- Video ports quantity
- 4
- USB powered
- Yes
- Dimensions (WxDxH)
- 65 x 104 x 14 mm
- Connection to system unit
- DisplayPort 1.2
- Brand
- CLUB3D
- Category
- Video Splitter
- Model
- CSV-6400
- Part number
- CSV-6400
- EAN / UPC
- 841615101085, 8719214470890
- Also known as
- CLUB3D Multi Stream Transport Hub DisplayPort 1.2 Quad Monitor USB Powered
Specifications
34 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 4 |
| Video port type | DisplayPort |
| Video out | 4x DisplayPort |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 1920 x 1080 pixels |
| Full HD | Yes |
| 3D | Yes |
| Maximum refresh rate | 60 Hz |
| Cable length | 0.13 m |
| HD-Ready | Yes |
| HDCP | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| Power LED | No |
| Certification | EMI CE, FCC, WEEE, ROHs |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 65 x 104 x 14 mm |
| Weight | 134 g |
Packaging data
| Specification | Value |
|---|---|
| Package length | 24 cm |
| Package width | 160 mm |
| Package depth | 18 mm |
| Package weight | 9 g |
| Package type | Polybag |
| Paper/cardboard packaging weight | 0 g |
| Plastic packaging weight | 11 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DisplayPort, USB |
| User guide | Yes |

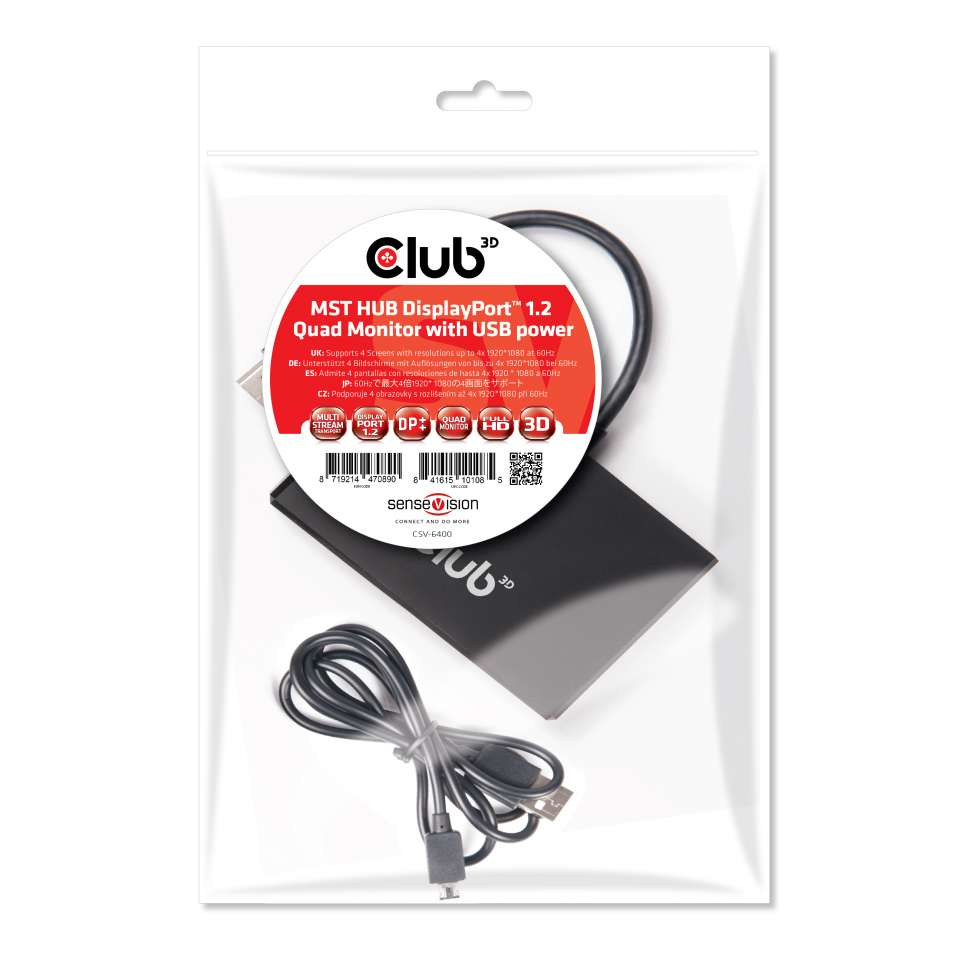

| Packaging content | • Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Quad Monitor USB Powered • USB to Micro USB Cable for power • Quick install guide |
Technical details
| Specification | Value |
|---|---|
| Connection to system unit | DisplayPort 1.2 |
| Technical features | Resolution Support up to: 4 x 1920 x 1080 at 60Hz |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8473 3020 |
| Products per master (outer) case | 5 pc(s) |
