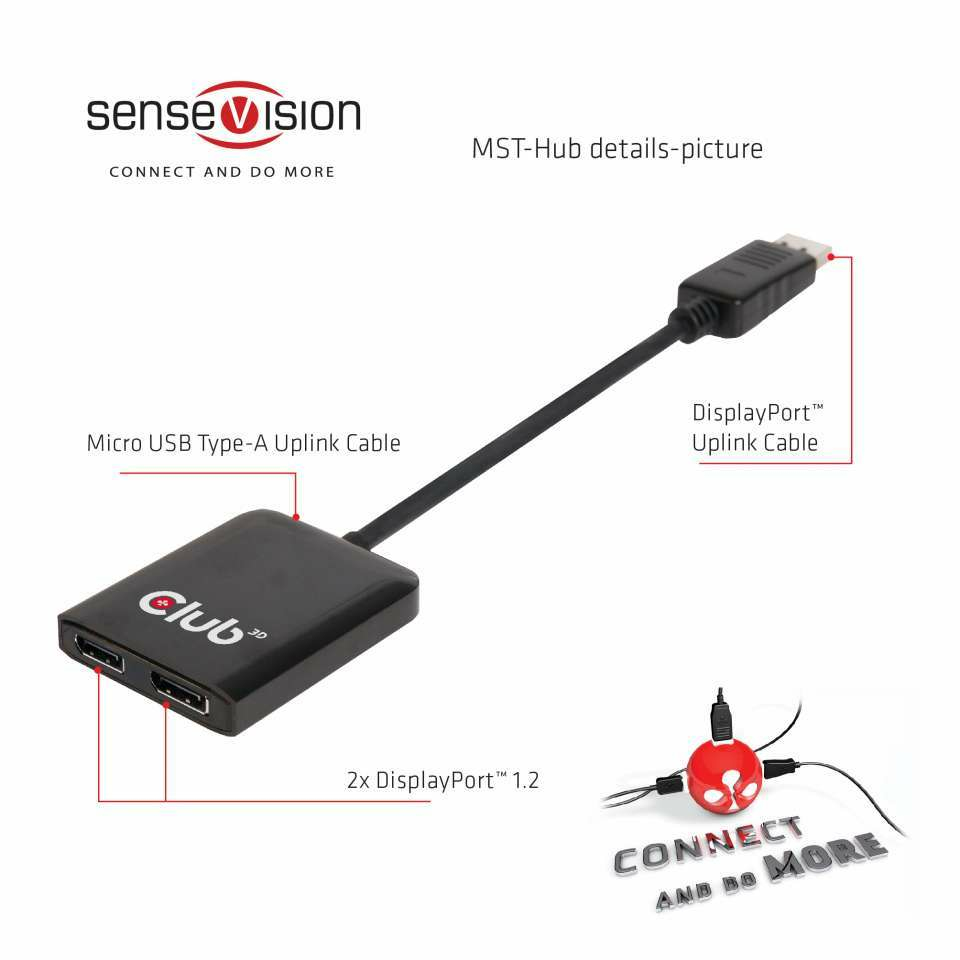

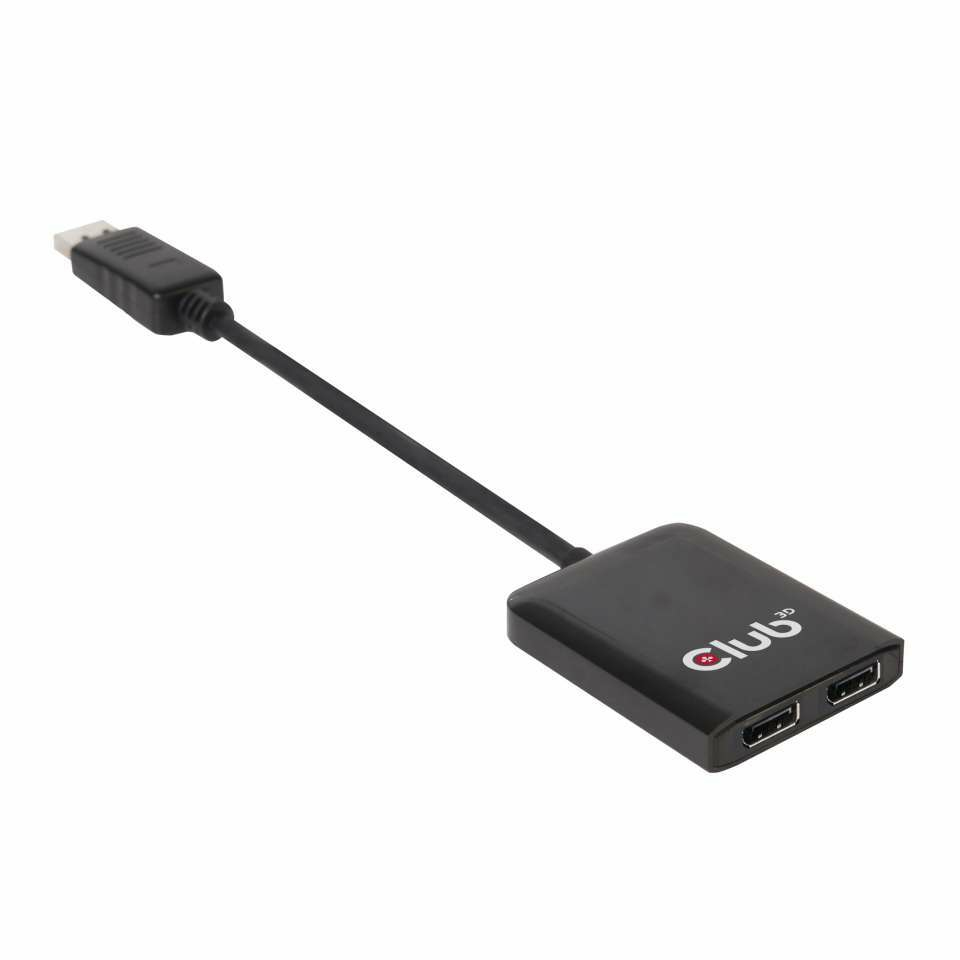

Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor
Model CSV-6200EAN 841615101092
35 specifications
- Weight54 g
- ColourBlack
- Video ports quantity2
- AC input voltage5 V
- Dimensions (WxDxH)244 x 49 x 11 mm
- Connection to PCYes
Overview
- Weight
- 54 g
- Colour
- Black
- Video ports quantity
- 2
- AC input voltage
- 5 V
- Dimensions (WxDxH)
- 244 x 49 x 11 mm
- Connection to PC
- Yes
- Brand
- CLUB3D
- Category
- Video Splitter
- Model
- CSV-6200
- Part number
- CSV-6200
- EAN / UPC
- 841615101092, 8719214470906
- Also known as
- CLUB3D Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor
Specifications
35 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | DisplayPort |
| Video in | Displayport 1.2 |
| Video out | 2x Displayport |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| Full HD | Yes |
| 3D | Yes |
| Maximum refresh rate | 60 Hz |
| Cable length | 0.2 m |
| HD-Ready | Yes |
| HDCP | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| Certification | EMI CE, FCC, ROHs, WEEE |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Wind |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Input current | 2 A |
| USB powered | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 244 x 49 x 11 mm |
| Weight | 54 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package length | 16 cm |
| Package width | 240 mm |
| Package depth | 18 mm |
| Package weight | 9 g |
| Package type | Polybag |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Micro-USB |
| Manual | Yes |

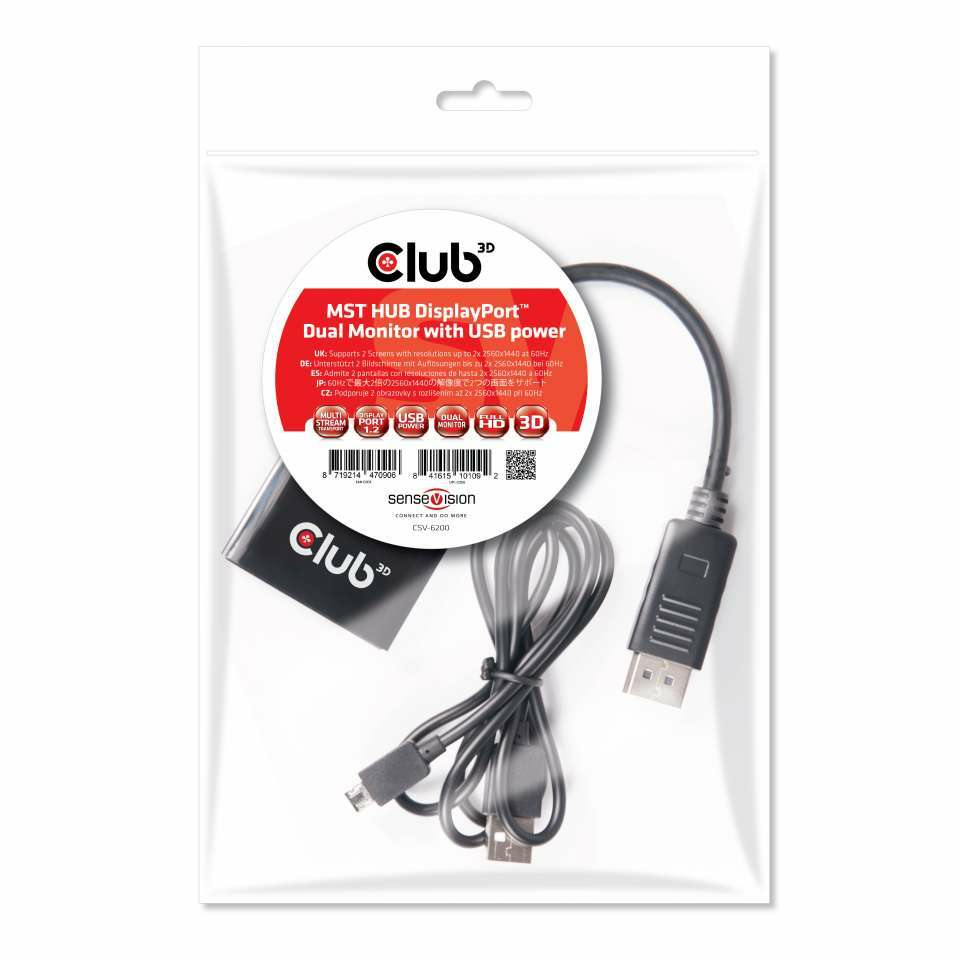

| Packaging content | -Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Dual Monitor USB Powered -USB to Micro USB Cable for power -Quick install guide |
Technical details
| Specification | Value |
|---|---|
| Connection to PC | Yes |
| Technical features | Resolutions up to: 2 x 3840 x 2160 at 30Hz or 2 x 2560 x 1440 at 60Hz |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 5 pc(s) |
