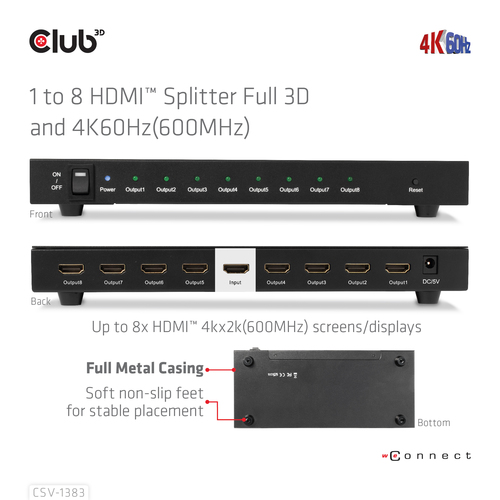

1 to 8 HDMI™ Splitter Full 3D and 4K60Hz(600MHz)
Model CSV-1383EAN 8719214472771
36 specifications
- Weight770 g
- ColourBlack
- Video ports quantity9
- Ethernet LANNo
- Width258 mm
Overview
- Weight
- 770 g
- Colour
- Black
- Video ports quantity
- 9
- Ethernet LAN
- No
- Width
- 258 mm
- Brand
- CLUB3D
- Category
- Video Splitter
- Model
- CSV-1383
- Part number
- CSV-1383
- EAN / UPC
- 8719214472771
- Also known as
- CLUB3D 1 to 8 HDMI™ Splitter Full 3D and 4K60Hz(600MHz)
Specifications
36 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 9 |
| Video port type | HDMI |
| Video out | 8x HDMI |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| Rack mounting | No |
| HDCP | Yes |
| Easy to install | Yes |
| LED indicators | Power, Status |
| Number of displays supported | 8 |
| Plug and Play | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 258 mm |
| Depth | 113 mm |
| Height | 35 mm |
| Weight | 770 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 350 mm |
| Package depth | 130 mm |
| Package height | 55 mm |
| Package type | Box |
| Paper/cardboard packaging weight | 137 g |
| Plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8473 3020 |
