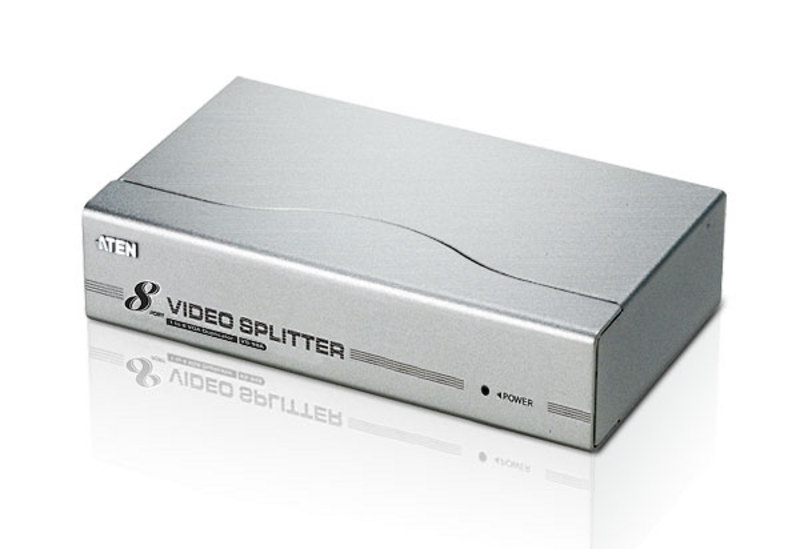

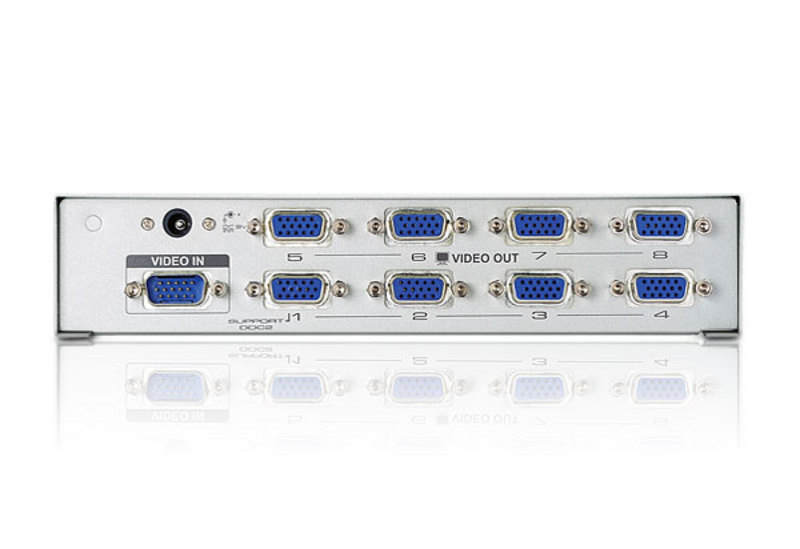

VS98A-AT-E video splitter VGA 8x VGA
Model VS98A-AT-E
21 specifications
- Weight690 g
- ColourSilver
- Video ports quantity8
- Ethernet LANNo
- Power consumption (typical)3.6 W
- Width200 mm
Overview
- Weight
- 690 g
- Colour
- Silver
- Video ports quantity
- 8
- Ethernet LAN
- No
- Power consumption (typical)
- 3.6 W
- Width
- 200 mm
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS98A-AT-E
- Part number
- VS98A-AT-E
- Also known as
- ATEN VS98A-AT-E video splitter VGA 8x VGA
Specifications
21 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 8 |
| Video port type | VGA |
| Video out | 8x VGA |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Maximum resolution | 1600 x 1200 pixels |
| 3D | No |
| Maximum operating distance | 65 m |
| Bandwidth | 350 MHz |
| Remote control included | No |
| HDCP | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3.6 W |
| USB powered | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 75 mm |
| Weight | 690 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
