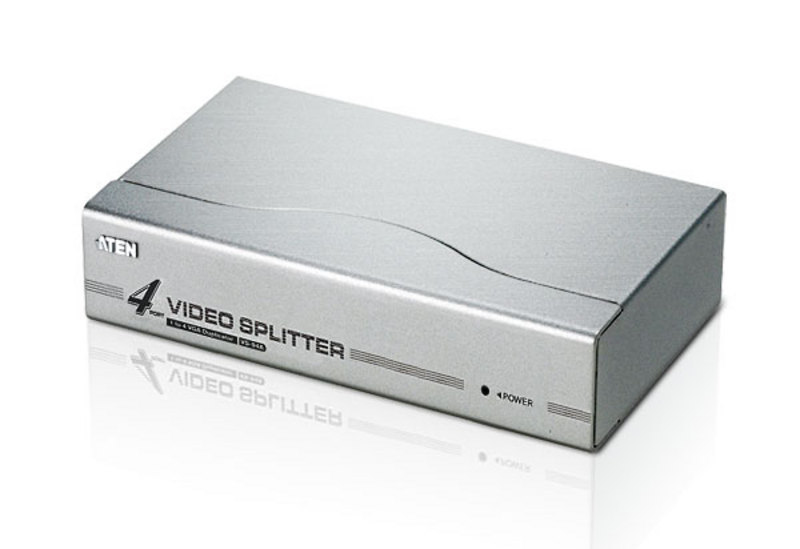

4-Port VGA Video Splitter (350 MHz)
Model VS94A-AT-GEAN 4710423770805
34 specifications
- Weight680 g
- ColourSilver
- Video ports quantity5
- AC input voltage9 V
- Width75.1 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 680 g
- Colour
- Silver
- Video ports quantity
- 5
- AC input voltage
- 9 V
- Width
- 75.1 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS94A-AT-G
- Part number
- VS94A-AT-G
- EAN / UPC
- 4710423770805
- Also known as
- ATEN 4-Port VGA Video Splitter (350 MHz)
Specifications
34 specifications in 8 groups

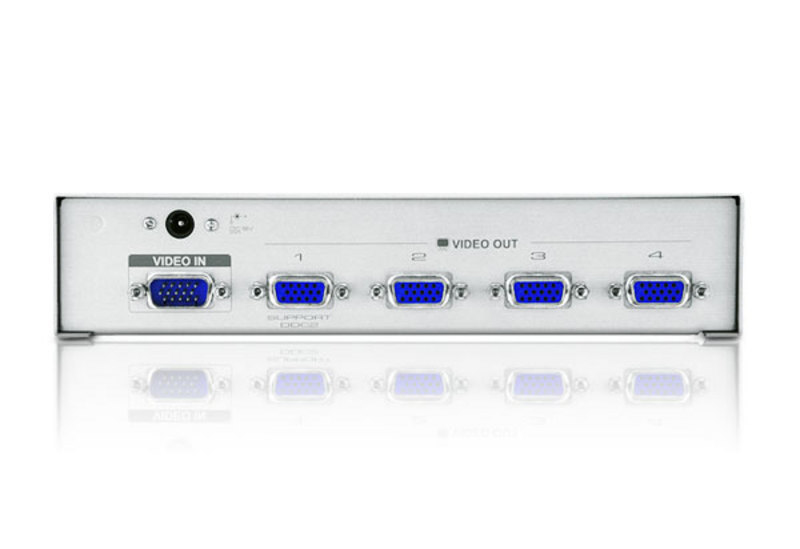

Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 5 |
| Video port type | VGA |
| Video out | 4x VGA |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| Maximum resolution | 1920 x 1440 pixels |
| Maximum operating distance | 30 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 350 MHz |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| AC input voltage | 9 V |
| Power consumption (typical) | 3.28 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75.1 mm |
| Depth | 78.7 mm |
| Height | 44 mm |
| Weight | 680 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 834 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 13.6 kg |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 17.5 kg |
| Products per master (outer) case | 20 pc(s) |
