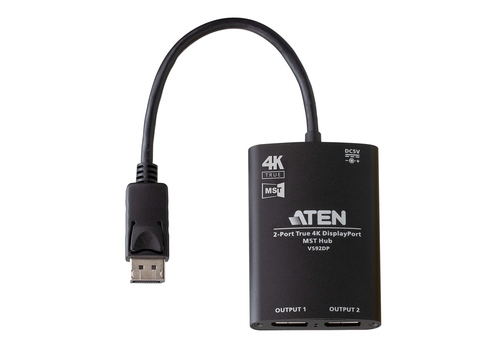

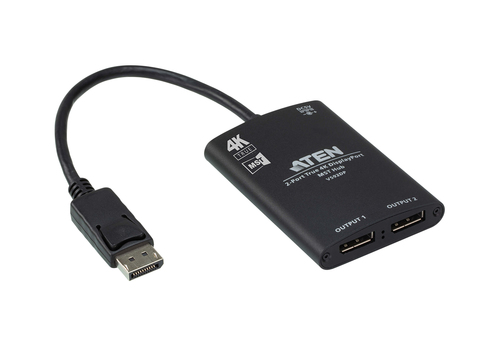

VS92DP-AT-E video splitter DisplayPort 2x DisplayPort
Model VS92DP-AT-EEAN 5715327001061
23 specifications
- Weight90 g
- ColourBlack
- Video ports quantity2
- Power consumption (max)2 W
- Width60 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 90 g
- Colour
- Black
- Video ports quantity
- 2
- Power consumption (max)
- 2 W
- Width
- 60 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS92DP-AT-E
- Part number
- VS92DP-AT-E
- EAN / UPC
- 5715327001061
- Also known as
- ATEN VS92DP-AT-E video splitter DisplayPort 2x DisplayPort
Specifications
23 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | DisplayPort |
| Video out | 2x DisplayPort |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.3 |
| Cable length | 0.15 m |
| HDCP | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 2 W |
| USB powered | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 88 mm |
| Height | 150 mm |
| Weight | 90 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
