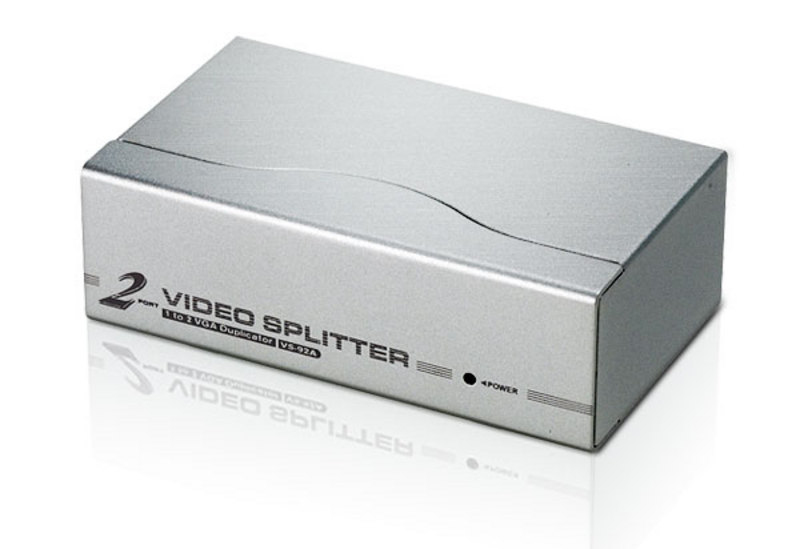

ATEN VS92A-A7-G video splitter VGA 2x VGA
Model VS92A-A7-GEAN 672792000249
24 specifications
- Weight420 g
- ColourSilver
- Video ports quantity2
- Ethernet LANNo
- Power consumption (typical)0.85 W
- Dimensions (WxDxH)130 x 75 x 45 mm
Overview
- Weight
- 420 g
- Colour
- Silver
- Video ports quantity
- 2
- Ethernet LAN
- No
- Power consumption (typical)
- 0.85 W
- Dimensions (WxDxH)
- 130 x 75 x 45 mm
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS92A-A7-G
- Part number
- VS92A-A7-G
- EAN / UPC
- 672792000249, 5711783794219
- Also known as
- ATEN VS92A-A7-G video splitter VGA 2x VGA
Specifications
24 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | VGA |
| Video out | 2x VGA |
| Ethernet LAN (RJ-45) ports | 0 |
| Audio ports quantity | 0 |
| Connector(s) | HDB-15 |
| Serial ports quantity | 0 |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Maximum resolution | 1920 x 1440 pixels |
| 3D | No |
| Maximum operating distance | 65 m |
| Bandwidth | 350 MHz |
| Remote control included | No |
| HDCP | No |
| Power LED | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 0.85 W |
| USB powered | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 130 x 75 x 45 mm |
| Weight | 420 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
