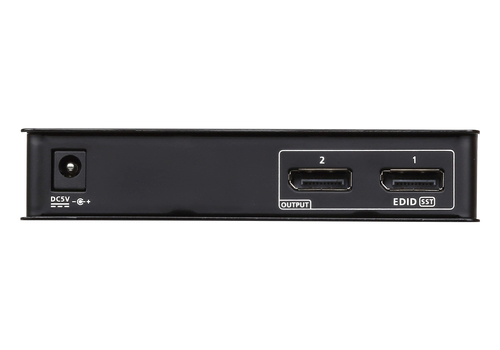

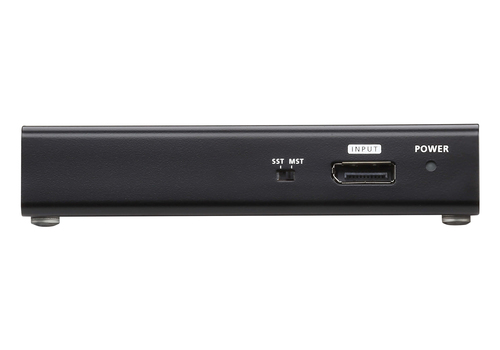

2-Port 4K DisplayPort 1.2a Splitter
Model VS192-AT-GEAN 4719264645242
34 specifications
- Weight390 g
- ColourBlack
- Video ports quantity2
- AC input voltage5 V
- Width80 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 390 g
- Colour
- Black
- Video ports quantity
- 2
- AC input voltage
- 5 V
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS192-AT-G
- Part number
- VS192-AT-G
- EAN / UPC
- 4719264645242
- Also known as
- ATEN 2-Port 4K DisplayPort 1.2a Splitter
Specifications
34 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | DisplayPort |
| Video out | 2x DisplayPort |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.3 |
| HDCP | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Power consumption (typical) | 1.185 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 125 mm |
| Height | 25 mm |
| Weight | 390 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 568 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 7.8 kg |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 12.4 kg |
| Products per master (outer) case | 20 pc(s) |
