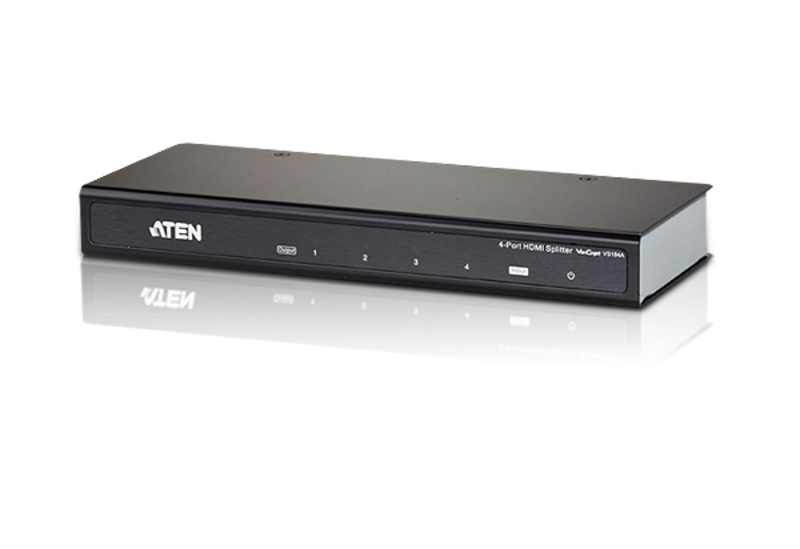

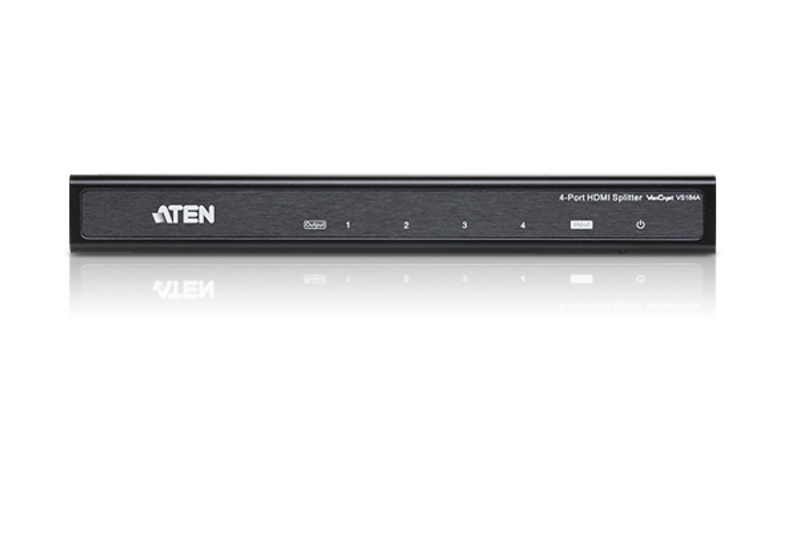

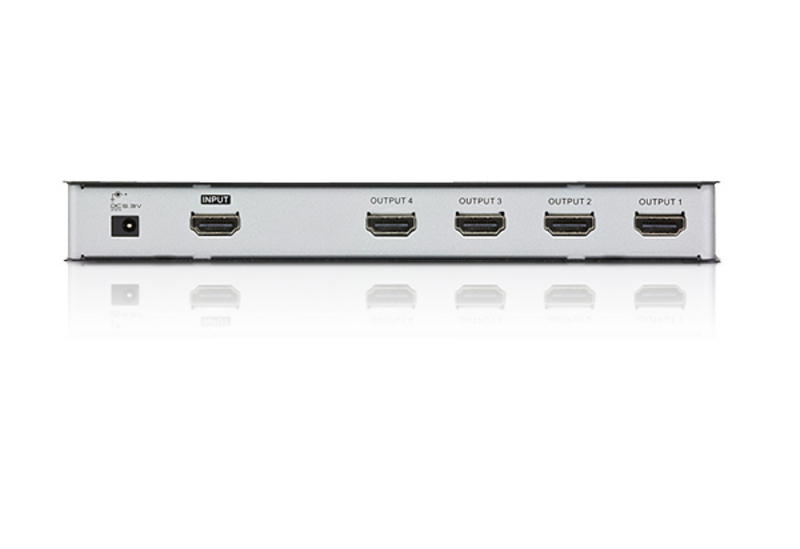

4-Port HDMI Audio/Video Splitter 4Kx2K
Model VS184A-AT-GEAN 2000001245675
41 specifications
- Weight703 g
- ColourBlack
- Video ports quantity5
- AC input voltage5 V
- Width80 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 703 g
- Colour
- Black
- Video ports quantity
- 5
- AC input voltage
- 5 V
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS184A-AT-G
- Part number
- VS184A-AT-G
- EAN / UPC
- 2000001245675, 4710423779938
- Also known as
- ATEN 4-Port HDMI Audio/Video Splitter 4Kx2K
Specifications
41 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 5 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Maximum operating distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 340 MHz |
| HDCP version | 1.4 |
| HDCP | Yes |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| LED indicators | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Power consumption (typical) | 6.02 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 200 mm |
| Height | 25 mm |
| Weight | 703 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 825 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | HDMI |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 14.1 kg |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 17.3 kg |
| Products per master (outer) case | 20 pc(s) |
