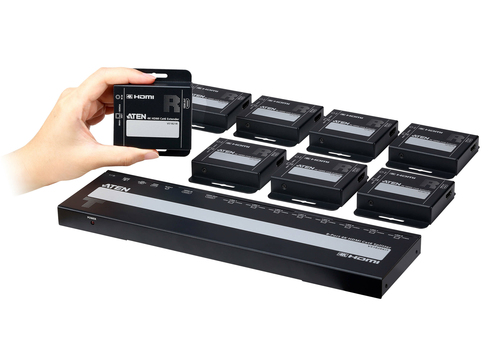

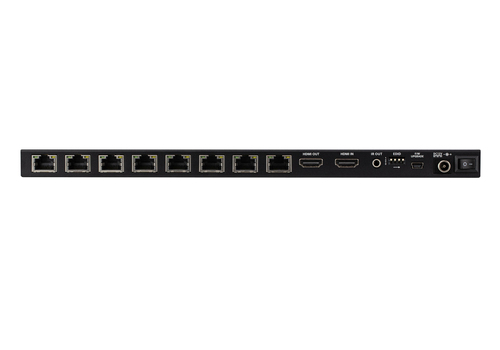

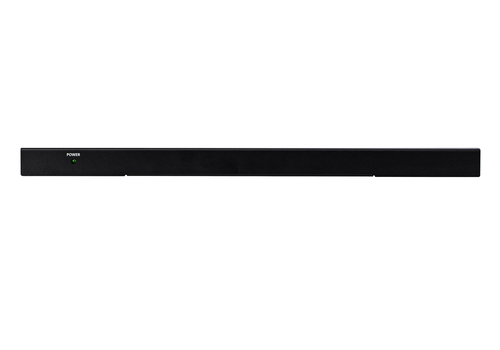

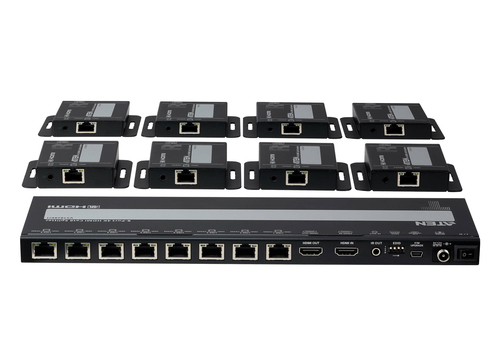

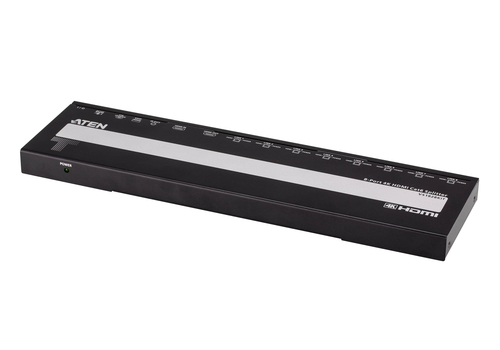

VS1828KIT-AT-G video splitter HDMI 2x HDMI
Model VS1828KIT-AT-GEAN 4710469348945
35 specifications
- ColourBlack
- Video ports quantity3
- Power consumption (typical)19.2 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Colour
- Black
- Video ports quantity
- 3
- Power consumption (typical)
- 19.2 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS1828KIT-AT-G
- Part number
- VS1828KIT-AT-G
- EAN / UPC
- 4710469348945
- Also known as
- ATEN VS1828KIT-AT-G video splitter HDMI 2x HDMI
Specifications
35 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 3 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| Ethernet LAN (RJ-45) ports | 10 |
| Audio ports quantity | 3 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Maximum operating distance | 3 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 340 MHz |
| HDCP version | 1.4 |
| Extended display identification data (EDID) | Yes |
| Data transfer rate | 10.2 Gbit/s |
| HDCP | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 19.2 W |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 9 pc(s) |
| Package width | 360 mm |
| Package depth | 236 mm |
| Package height | 143 mm |
| Package weight | 2.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | IR |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85437090 |
| Master (outer) case net weight | 6.15 kg |
| Master (outer) case width | 402 mm |
| Master (outer) case length | 477 mm |
| Master (outer) case height | 287 mm |
| Master (outer) case gross weight | 7.5 kg |
| Country of origin | China |
