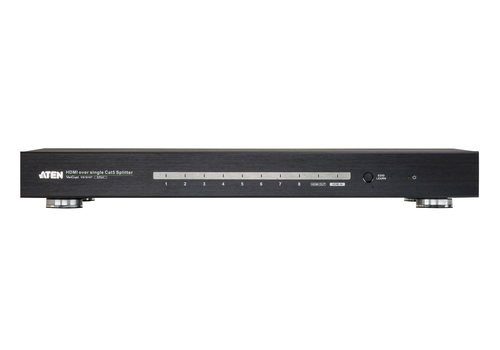

VS1818T video splitter HDMI
Model VS1818TEAN 672792005398
24 specifications
- Weight3.58 kg
- ColourBlack
- Video ports quantity2
- Ethernet LANYes
- Dimensions (WxDxH)261.1 x 432.4 x 44 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 3.58 kg
- Colour
- Black
- Video ports quantity
- 2
- Ethernet LAN
- Yes
- Dimensions (WxDxH)
- 261.1 x 432.4 x 44 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS1818T
- Part numbers
- VS1818T, VS1818T-AT-E
- EAN / UPC
- 672792005398, 700315914343, 6727920053988
- Also known as
- ATEN VS1818T video splitter HDMI
Specifications
24 specifications in 7 groups

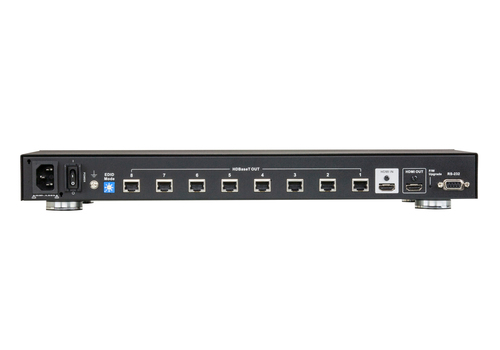

Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video in | HDMI |
| Video out | HDMI |
| Ethernet LAN (RJ-45) ports | 8 |
| Connector(s) | RS-232 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| Full HD | Yes |
| Power LED | Yes |
| Supported graphics resolutions | 4096 x 2160, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Cable types supported | Cat5 |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 261.1 x 432.4 x 44 mm |
| Weight | 3.58 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| User guide | Yes |
| Packaging content | Mounting Kit |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
