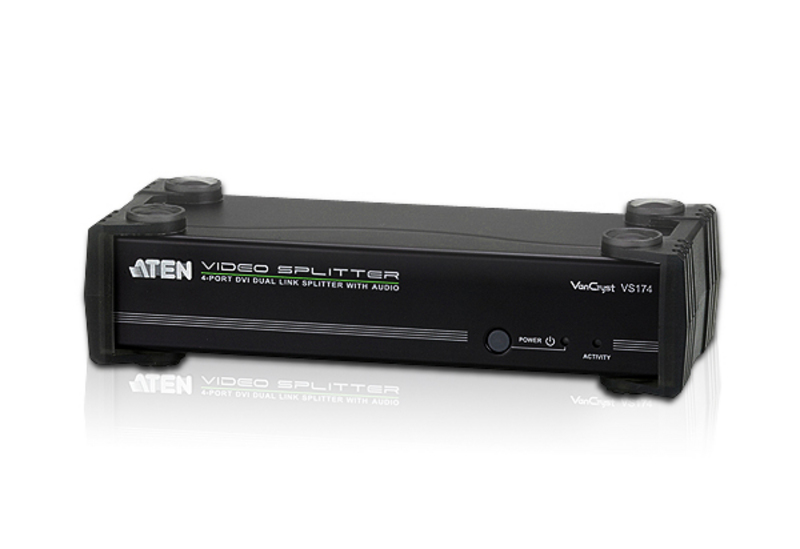

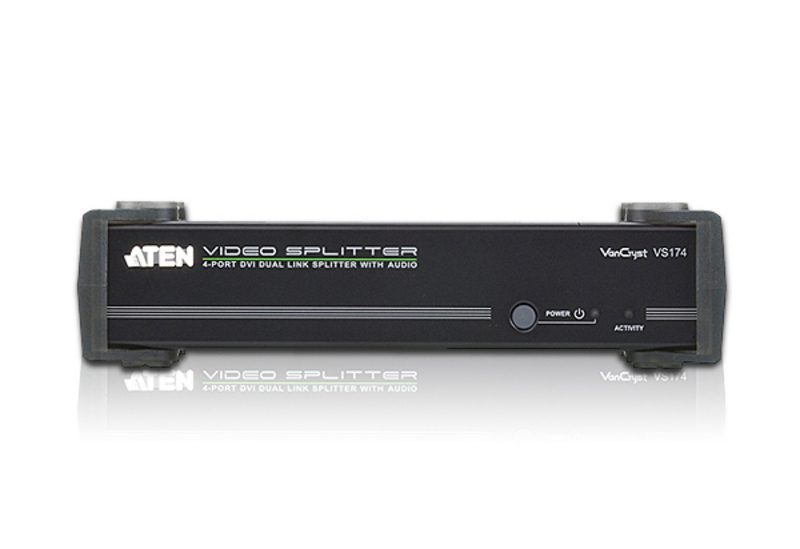

VS174-AT-U video splitter DVI 4x DVI-D
Model VS174-AT-U
20 specifications
- Weight730 g
- ColourBlack
- Video ports quantity5
- AC input voltage5.3 V
- Width88 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 730 g
- Colour
- Black
- Video ports quantity
- 5
- AC input voltage
- 5.3 V
- Width
- 88 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS174-AT-U
- Part number
- VS174-AT-U
- Also known as
- ATEN VS174-AT-U video splitter DVI 4x DVI-D
Specifications
20 specifications in 6 groups

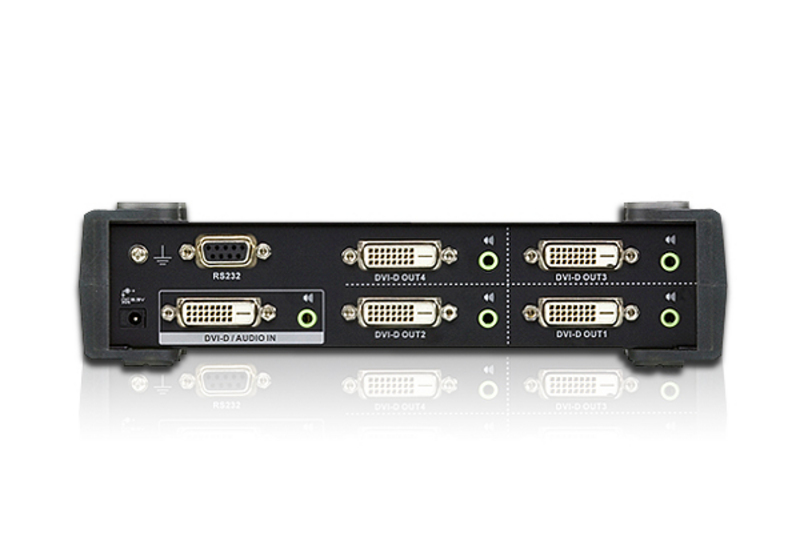

Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 5 |
| Video port type | DVI |
| Video out | 4x DVI-D |
| Audio ports quantity | 5 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 2560 x 1600 pixels |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5.3 V |
| Power consumption (typical) | 5.6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Depth | 210 mm |
| Height | 55.5 mm |
| Weight | 730 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
