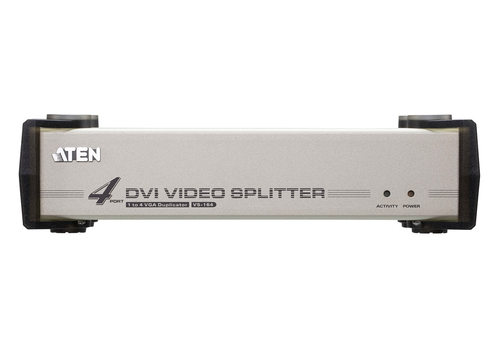

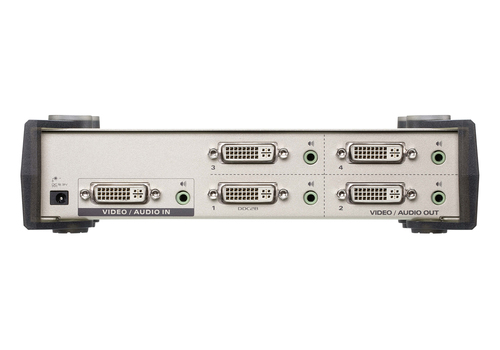

4-Port DVI Audio/Video Splitter
Model VS164-AT-GEAN 1320010269143
39 specifications
- Weight880 g
- ColourBlack, Silver
- Video ports quantity5
- AC input voltage5.3 V
- Width210 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 880 g
- Colour
- Black, Silver
- Video ports quantity
- 5
- AC input voltage
- 5.3 V
- Width
- 210 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS164-AT-G
- Part number
- VS164-AT-G
- EAN / UPC
- 1320010269143, 4710423773325
- Also known as
- ATEN 4-Port DVI Audio/Video Splitter
Specifications
39 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 5 |
| Video port type | DVI |
| Video out | 4x DVI-I |
| Audio ports quantity | 5 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Housing material | Metal |
| Maximum resolution | 1920 x 1200 pixels |
| HD type | Full HD |
| Maximum operating distance | 5 m |
| Bandwidth | 225 MHz |
| HDCP | Yes |
| LED indicators | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 2000, Windows XP |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5.3 V |
| Power consumption (typical) | 3.95 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 880 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 4.4 kg |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 5.43 kg |
| Products per master (outer) case | 5 pc(s) |
