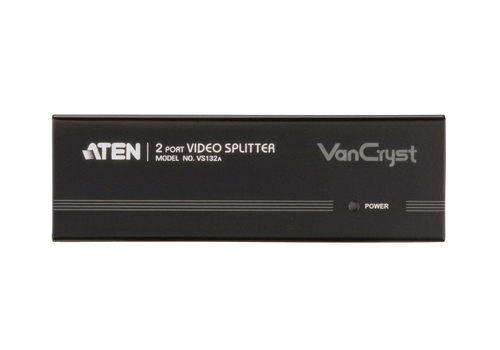

ATEN VS132A video splitter VGA 2x VGA
Model VS132AEAN 672792100611
19 specifications
- Weight420 g
- ColourBlack
- Video ports quantity3
- AC input voltage5 V
- Dimensions (WxDxH)130 x 75.1 x 44 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 420 g
- Colour
- Black
- Video ports quantity
- 3
- AC input voltage
- 5 V
- Dimensions (WxDxH)
- 130 x 75.1 x 44 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS132A
- Part number
- VS132A
- EAN / UPC
- 672792100611, 4344190302763
- Also known as
- ATEN VS132A video splitter VGA 2x VGA
Specifications
19 specifications in 7 groups

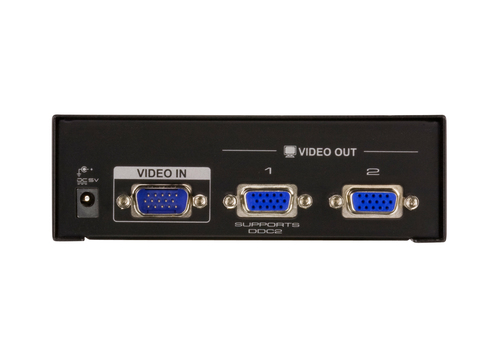

Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 3 |
| Video port type | VGA |
| Video in | 1 x HDB-15 Male (Blue) |
| Video out | 2x VGA |
| Audio ports quantity | 0 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 2048 x 1536 pixels |
| Maximum operating distance | 30 m |
| Bandwidth | 450 MHz |
| Supported graphics resolutions | 2048 x 1536 (QXGA) |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Power consumption (typical) | 0.78 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 130 x 75.1 x 44 mm |
| Weight | 420 g |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | 1x VS132A Video Splitter 1x Power Adapter 1x User Guide |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
