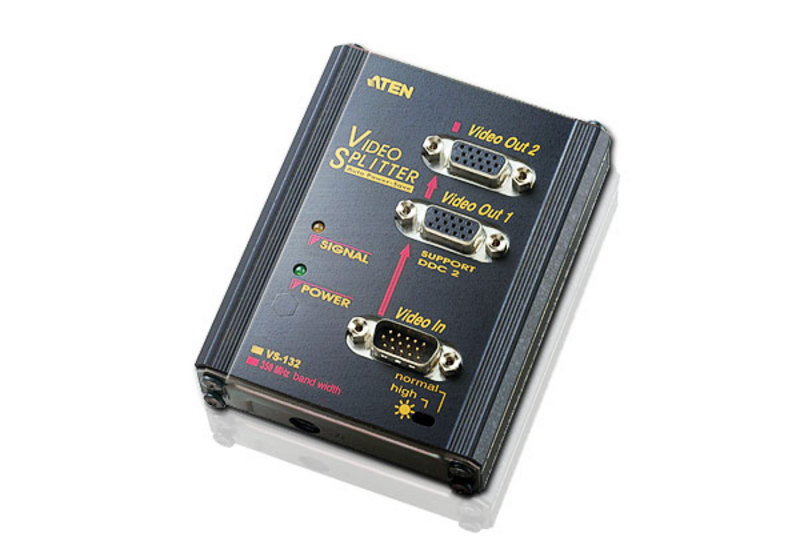

2-Port VGA Video Splitter (350 MHz)
Model VS132-AT-GEAN 4710423771130
33 specifications
- Weight270 g
- ColourBlack
- Video ports quantity3
- AC input voltage5.3 V
- Width79 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 270 g
- Colour
- Black
- Video ports quantity
- 3
- AC input voltage
- 5.3 V
- Width
- 79 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS132-AT-G
- Part number
- VS132-AT-G
- EAN / UPC
- 4710423771130
- Also known as
- ATEN 2-Port VGA Video Splitter (350 MHz)
Specifications
33 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 3 |
| Video port type | VGA |
| Video out | 2x VGA |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 1920 x 1440 pixels |
| Maximum operating distance | 65 m |
| Bandwidth | 350 MHz |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5.3 V |
| Power consumption (typical) | 42 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 79 mm |
| Depth | 103.6 mm |
| Height | 28.2 mm |
| Weight | 270 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 425 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 5.4 kg |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 9.14 kg |
| Products per master (outer) case | 20 pc(s) |
