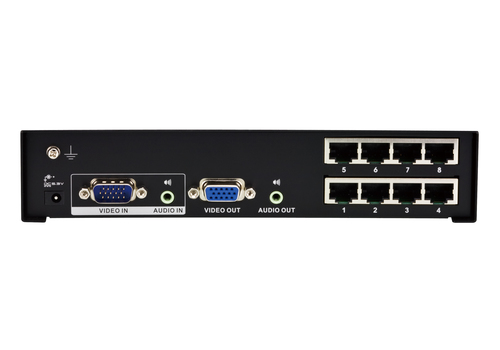

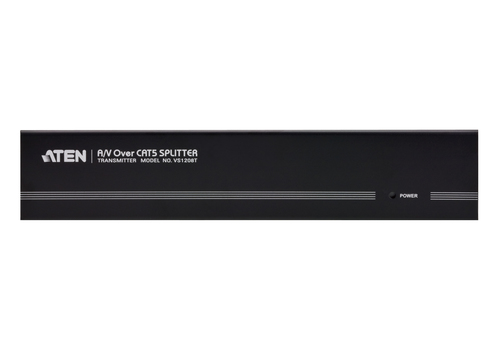

VS1208T-AT-U video splitter VGA
Model VS1208T-AT-U
27 specifications
- Weight640 g
- ColourBlack
- Video ports quantity2
- Ethernet LANYes
- Width75.1 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 640 g
- Colour
- Black
- Video ports quantity
- 2
- Ethernet LAN
- Yes
- Width
- 75.1 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS1208T-AT-U
- Part number
- VS1208T-AT-U
- Also known as
- ATEN VS1208T-AT-U video splitter VGA
Specifications
27 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | VGA |
| Video out | VGA |
| Ethernet LAN (RJ-45) ports | 8 |
| Audio ports quantity | 2 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum operating distance | 300 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 225 MHz |
| Rack mounting | Yes |
| LED indicators | Yes |
| Number of displays supported | 8 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Cable types supported | Cat5, Cat5e |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75.1 mm |
| Depth | 200 mm |
| Height | 42 mm |
| Weight | 640 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
