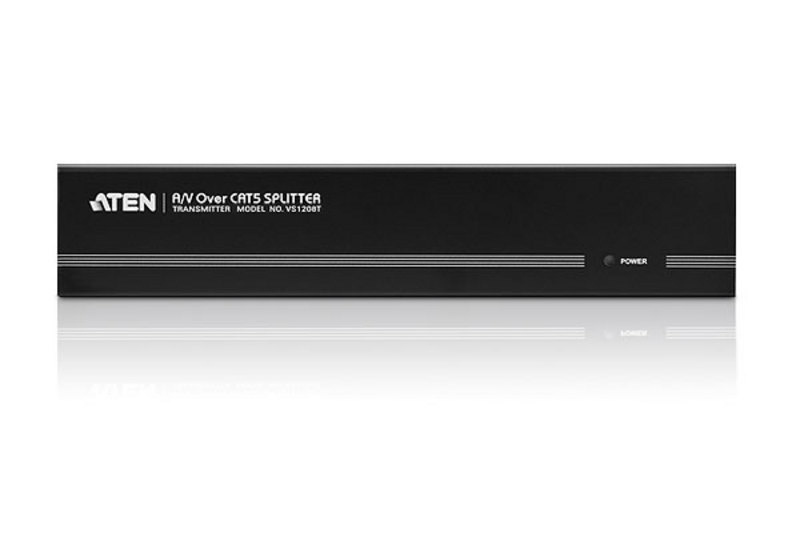

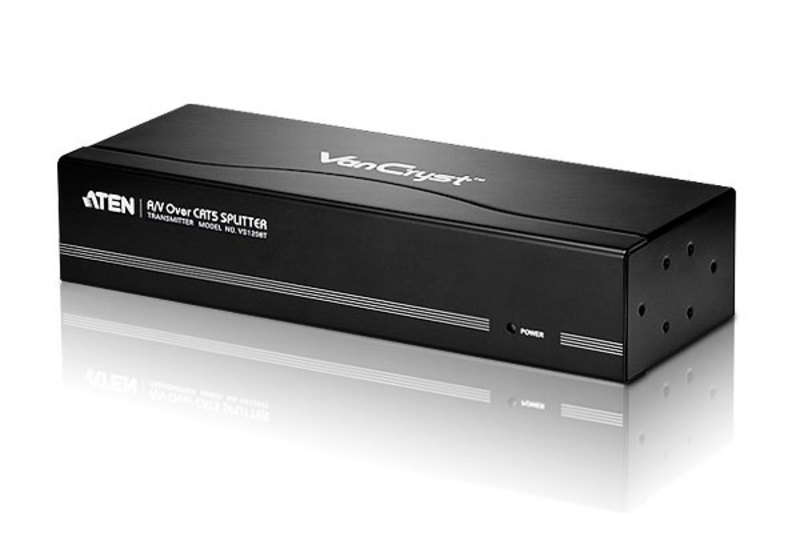

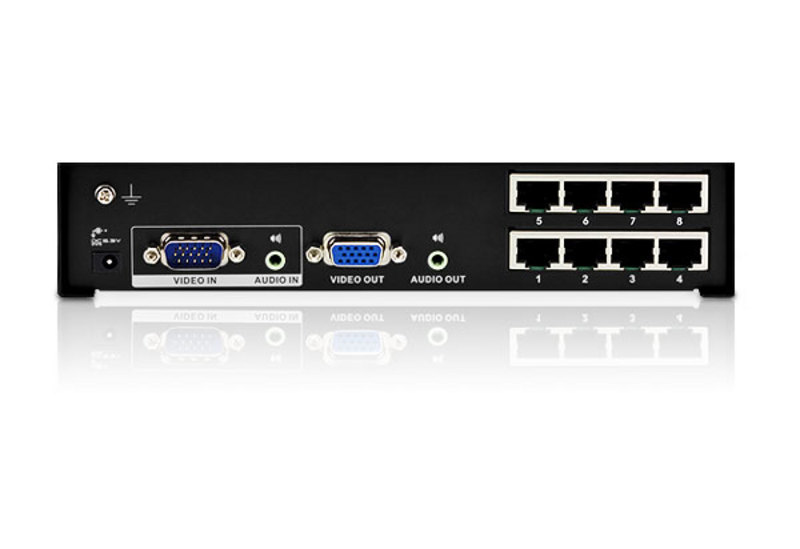

8-Port VGA Cat5e/6 Audio/Video Splitter
Model VS1208T-AT-GEAN 4710423777262
40 specifications
- Weight1.02 kg
- ColourBlack
- Video ports quantity2
- Cable types supportedCat5, Cat5e
- AC input voltage5.3 V
- Width75.1 mm
Overview
- Weight
- 1.02 kg
- Colour
- Black
- Video ports quantity
- 2
- Cable types supported
- Cat5, Cat5e
- AC input voltage
- 5.3 V
- Width
- 75.1 mm
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS1208T-AT-G
- Part number
- VS1208T-AT-G
- EAN / UPC
- 4710423777262, 6727920026012
- Also known as
- ATEN 8-Port VGA Cat5e/6 Audio/Video Splitter
Specifications
40 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | VGA |
| Video out | VGA |
| Ethernet LAN (RJ-45) ports | 8 |
| Audio ports quantity | 2 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum operating distance | 300 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 225 MHz |
| Rack mounting | Yes |
| LED indicators | Yes |
| Number of displays supported | 8 |
Network
| Specification | Value |
|---|---|
| Cable types supported | Cat5, Cat5e |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5.3 V |
| Power consumption (typical) | 7.04 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75.1 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 1.02 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 1.13 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 5.1 kg |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 6.1 kg |
| Products per master (outer) case | 5 pc(s) |
