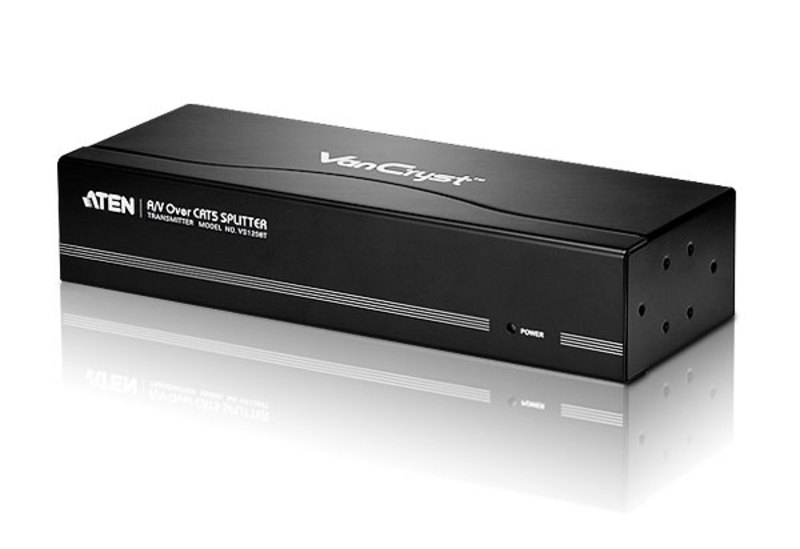

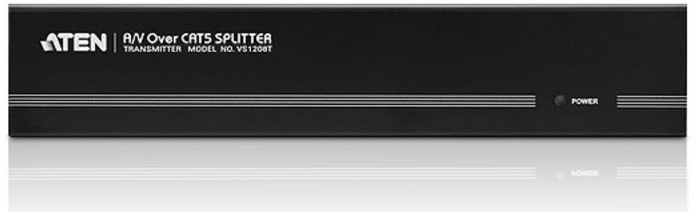

VS1208T-AT-E video splitter VGA
Model VS1208T-AT-E
18 specifications
- Weight640 g
- ColourBlack
- Video ports quantity2
- Cable types supportedCat5e
- AC input voltage5 V
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 640 g
- Colour
- Black
- Video ports quantity
- 2
- Cable types supported
- Cat5e
- AC input voltage
- 5 V
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS1208T-AT-E
- Part number
- VS1208T-AT-E
- Also known as
- ATEN VS1208T-AT-E video splitter VGA
Specifications
18 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | VGA |
| Video out | VGA |
| Ethernet LAN (RJ-45) ports | 8 |
| Audio ports quantity | 2 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum operating distance | 300 m |
| Bandwidth | 225 MHz |
| Plug and Play | Yes |
Network
| Specification | Value |
|---|---|
| Cable types supported | Cat5e |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Power consumption (typical) | 1.64 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 640 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
