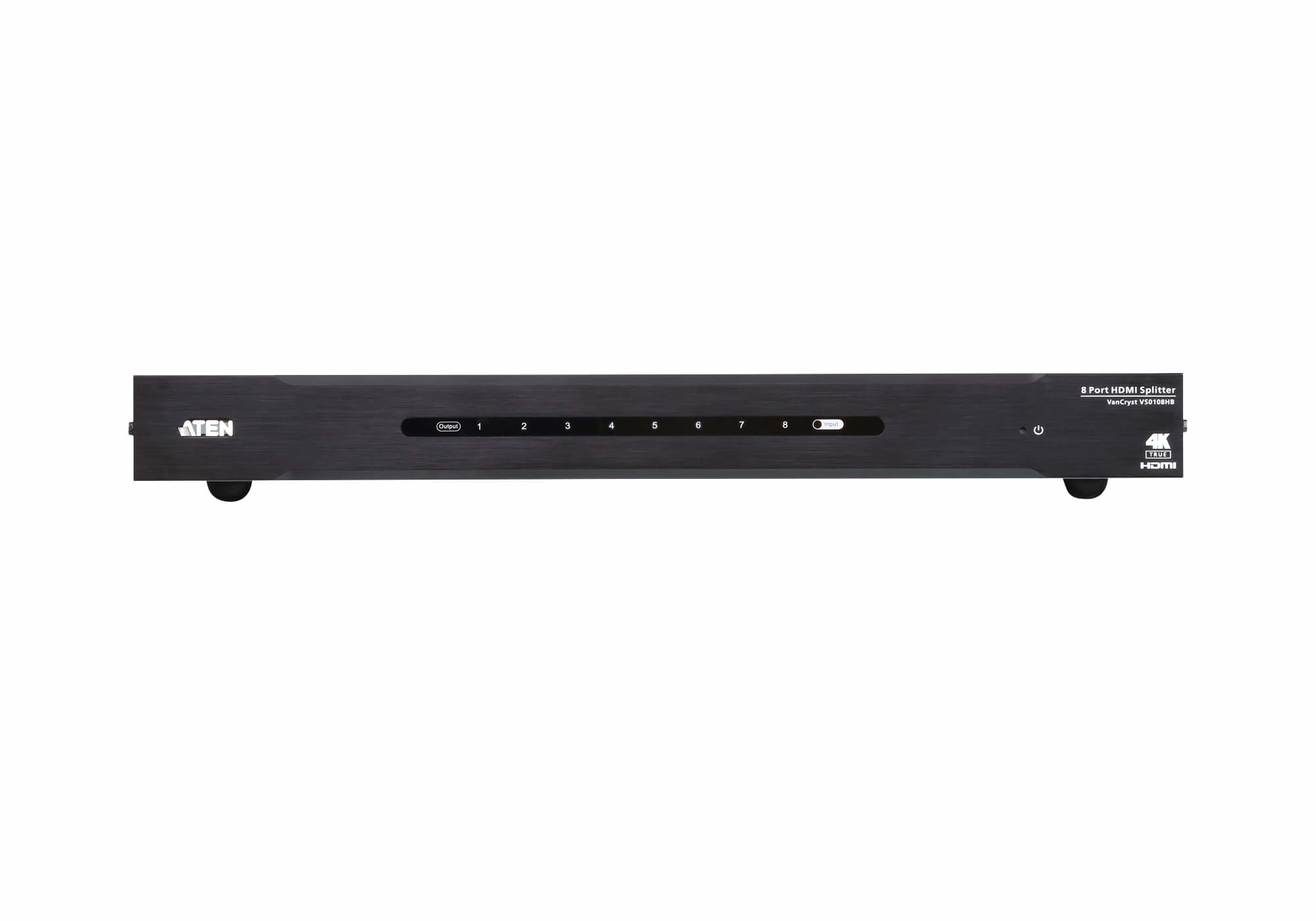

ATEN VS0108HB video splitter HDMI 8x HDMI
Model VS0108HBEAN 672792008375
31 specifications
- Weight2.18 kg
- ColourBlack
- Video ports quantity9
- Output voltage5 V
- Dimensions (WxDxH)437.2 x 157.8 x 44 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 2.18 kg
- Colour
- Black
- Video ports quantity
- 9
- Output voltage
- 5 V
- Dimensions (WxDxH)
- 437.2 x 157.8 x 44 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS0108HB
- Part numbers
- VS0108HB, VS0108HB-AT-G, VS0108HB-AT-E
- EAN / UPC
- 672792008375, 4719264646423
- Also known as
- ATEN VS0108HB video splitter HDMI 8x HDMI
Specifications
31 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 9 |
| Video port type | HDMI |
| Video out | 8x HDMI |
| HDMI version | 2.0 |

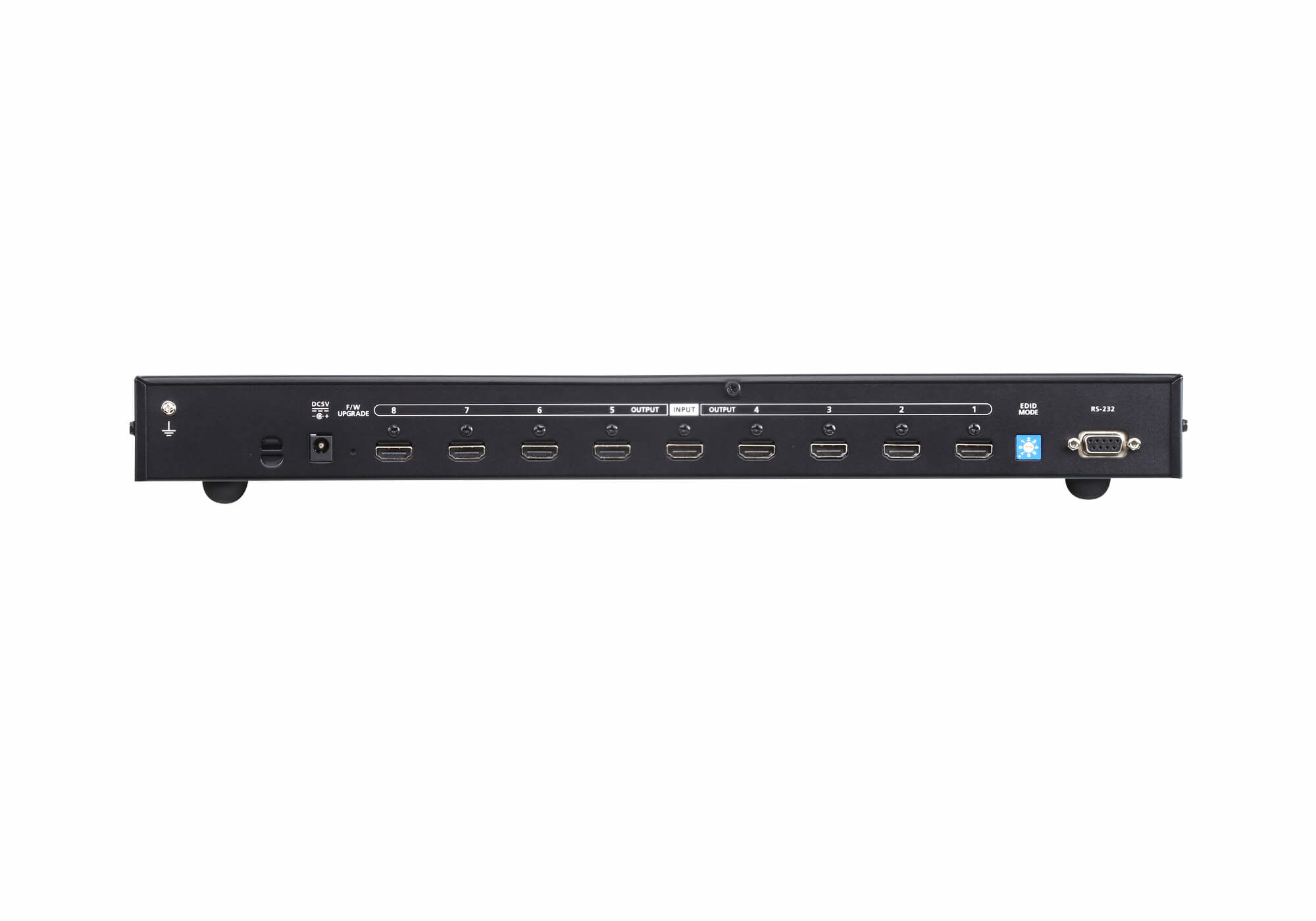

| Connector(s) | RS-232, HDMI |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| Maximum operating distance | 3 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 600 MHz |
| Rack mounting | Yes |
| HDCP | Yes |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| LED indicators | Yes |
| Plug and Play | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Certification | RoHS |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Power consumption (typical) | 11.95 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 437.2 x 157.8 x 44 mm |
| Weight | 2.18 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
