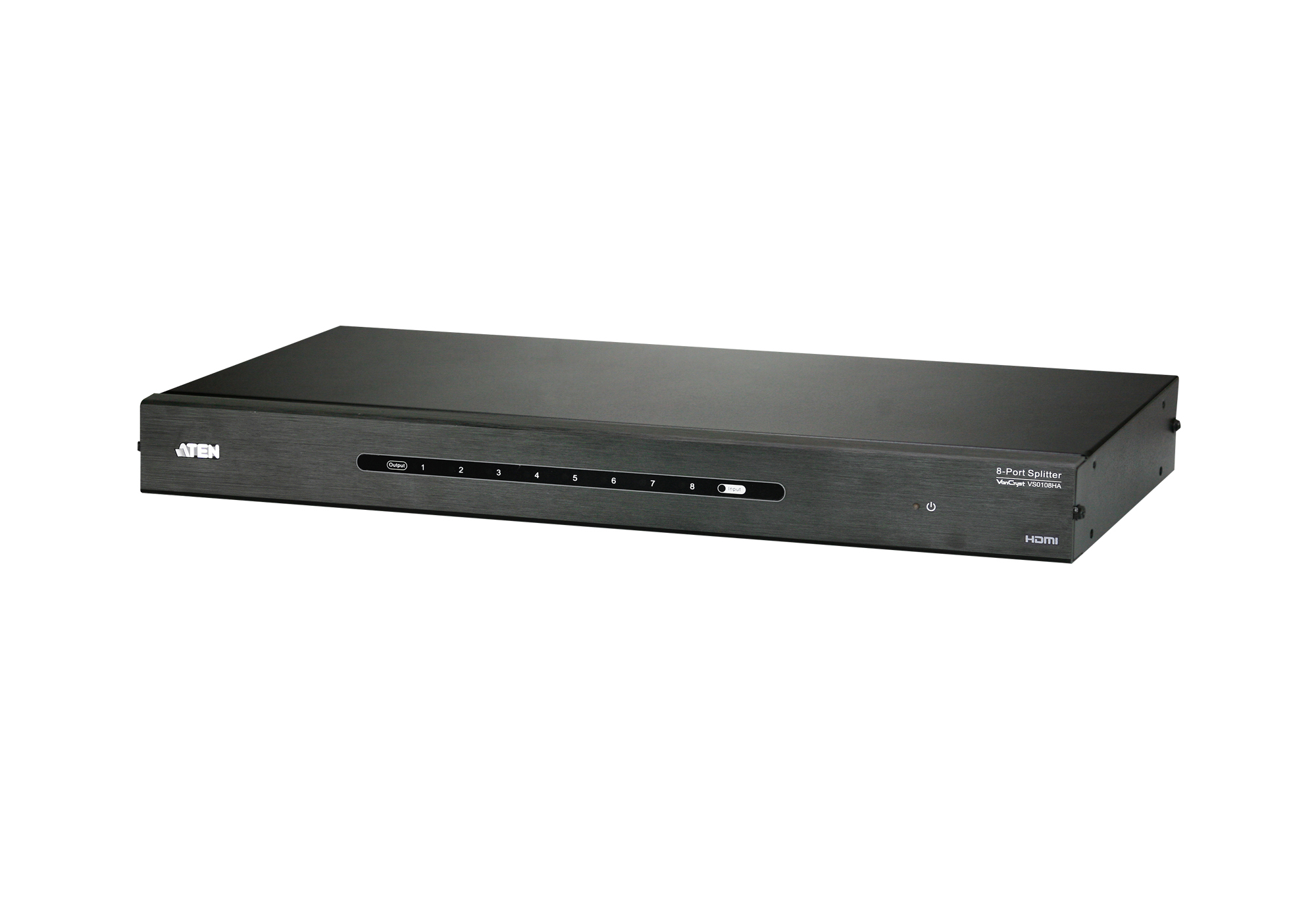

VS0108HA video splitter HDMI 8x HDMI
Model VS0108HAEAN 672792004384
24 specifications
- Weight1.74 kg
- ColourBlack
- Video ports quantity8
- AC input voltage5 V
- Dimensions (WxDxH)157.8 x 437.2 x 44 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 1.74 kg
- Colour
- Black
- Video ports quantity
- 8
- AC input voltage
- 5 V
- Dimensions (WxDxH)
- 157.8 x 437.2 x 44 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS0108HA
- Part number
- VS0108HA
- EAN / UPC
- 672792004384, 700315914305, 6727920043842
- Also known as
- ATEN VS0108HA video splitter HDMI 8x HDMI
Specifications
24 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 8 |
| Video port type | HDMI |
| Video in | 1x HDMI |
| Video out | 8x HDMI |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| Full HD | Yes |
| HDCP | Yes |
| Power LED | Yes |
| Supported graphics resolutions | 4096 x 2160, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Certification | RoHS |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Power consumption (typical) | 14.84 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 157.8 x 437.2 x 44 mm |
| Weight | 1.74 kg |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
| Packaging content | Mounting Kit Power Adapter |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
