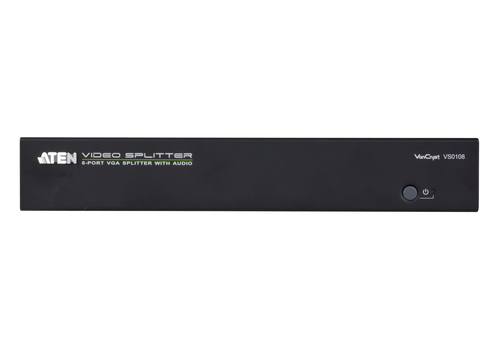

VS0108 video splitter VGA 8x VGA
Model VS0108EAN 4710423778870
22 specifications
- Weight870 g
- ColourBlack
- Video ports quantity8
- Ethernet LANNo
- AC input voltage5.3 V
- Dimensions (WxDxH)76.1 x 260 x 42 mm
Overview
- Weight
- 870 g
- Colour
- Black
- Video ports quantity
- 8
- Ethernet LAN
- No
- AC input voltage
- 5.3 V
- Dimensions (WxDxH)
- 76.1 x 260 x 42 mm
- Brand
- ATEN
- Category
- Video Splitter
- Model
- VS0108
- Part numbers
- VS0108, VS0108-AT-E
- EAN / UPC
- 4710423778870
- Also known as
- ATEN VS0108 video splitter VGA 8x VGA
Specifications
22 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 8 |
| Video port type | VGA |
| Video out | 8x VGA |
| Audio ports quantity | 8 |

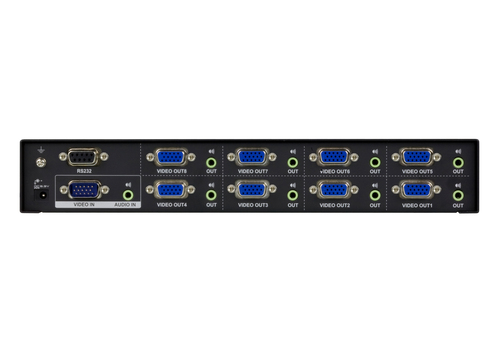

| Connector(s) | 8 x HDB-15/M, 1 x DB-9/F, Mini Stereo Jack |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 1920 x 1440 pixels |
| Bandwidth | 400 MHz |
| Power LED | Yes |
| Supported graphics resolutions | 1920 x 1440 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5.3 V |
| Power consumption (typical) | 2.3 W |
| USB powered | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 76.1 x 260 x 42 mm |
| Weight | 870 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
