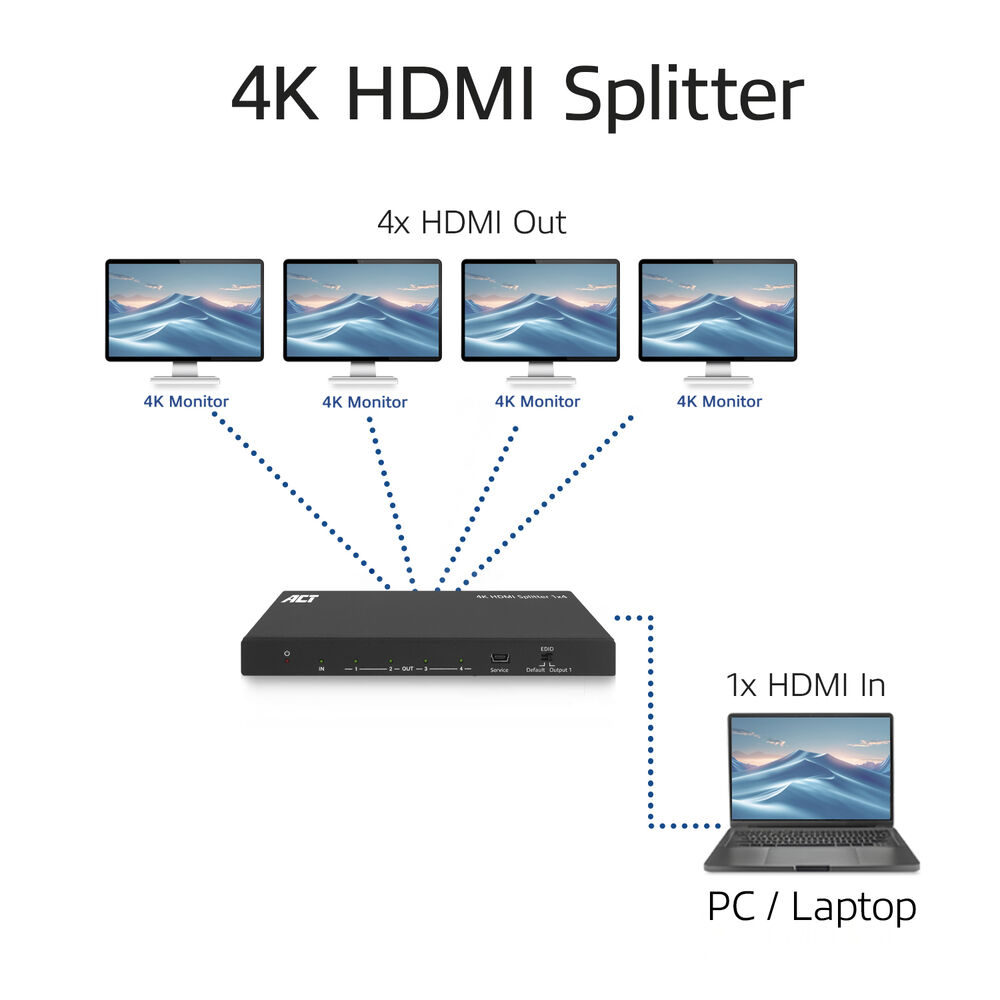

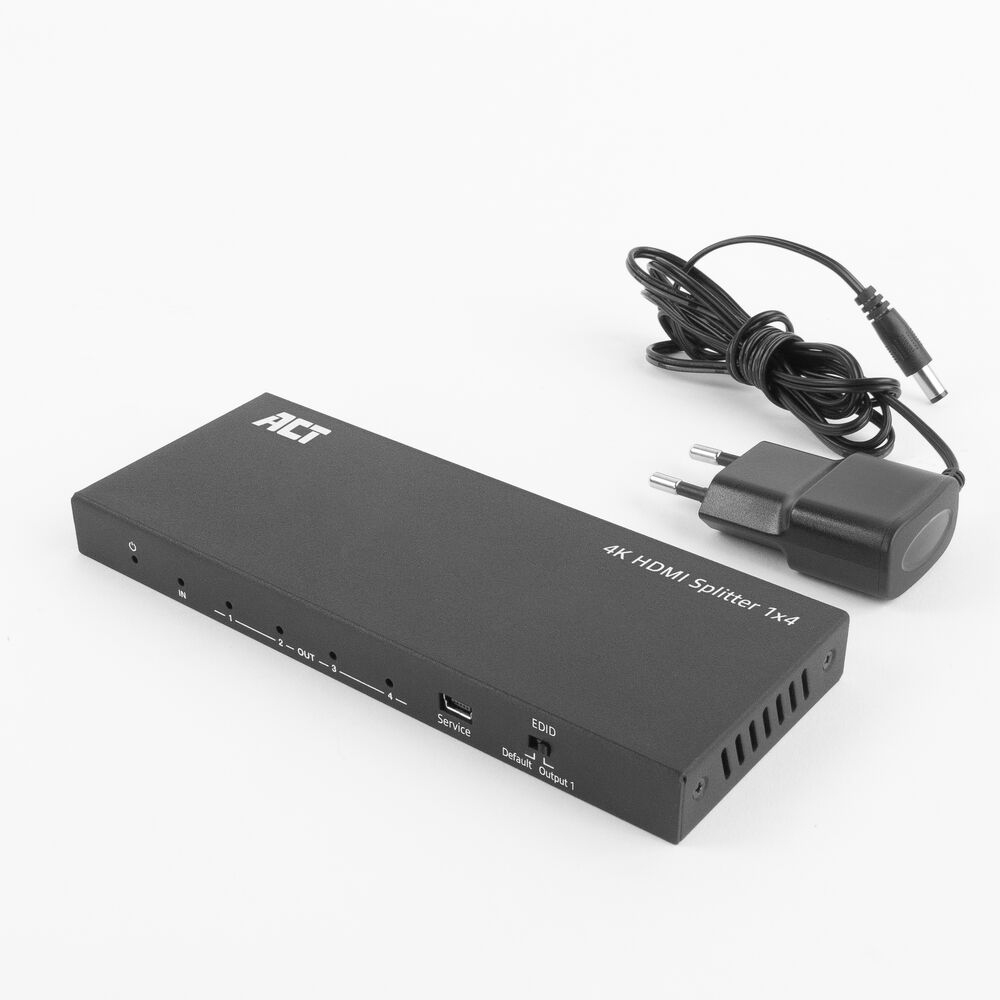

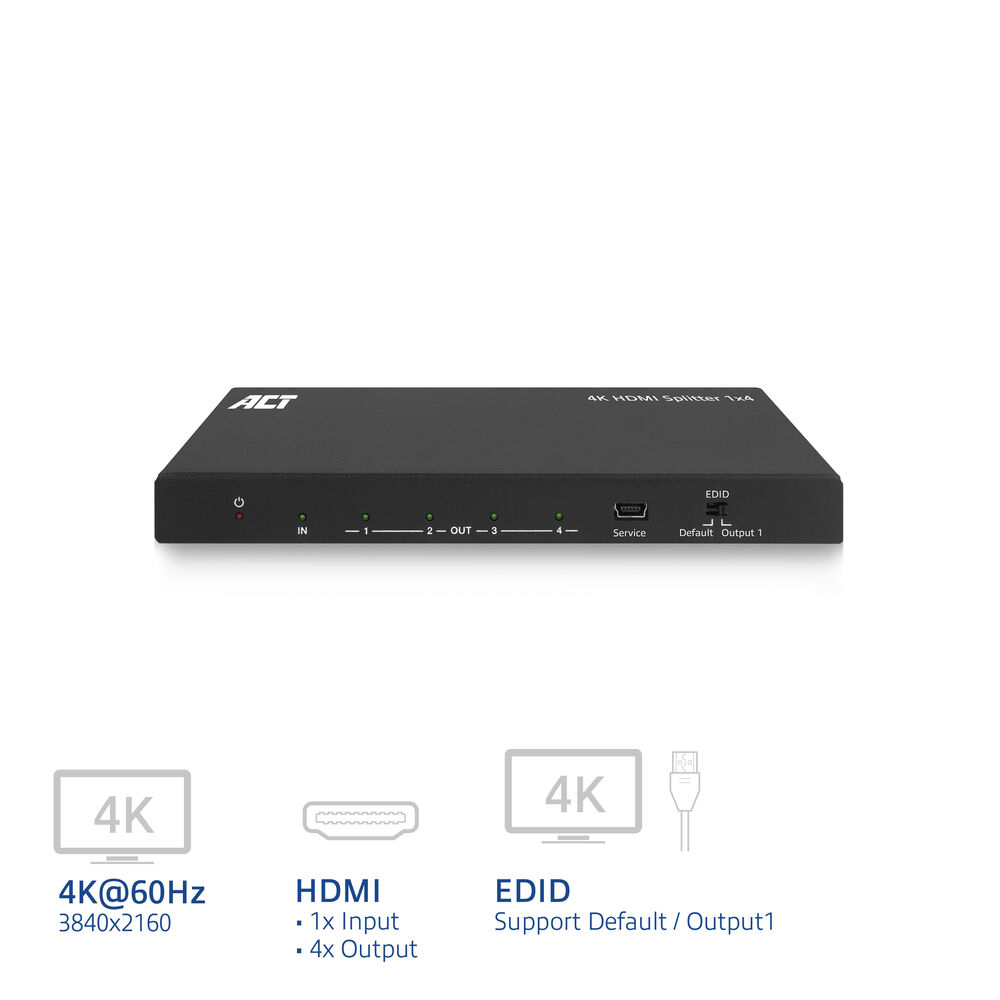

4K HDMI splitter
1 in 4 out, EDID support
Model AC7832EAN 8716065568479
20 specifications
- ColourBlack
- Video ports quantity5
- Output voltage5 V
- Width163 mm
Overview
- Colour
- Black
- Video ports quantity
- 5
- Output voltage
- 5 V
- Width
- 163 mm
- Brand
- ACT
- Category
- Video Splitter
- Model
- AC7832
- Part number
- AC7832
- EAN / UPC
- 8716065568479
- Also known as
- ACT 4K HDMI splitter, 1 in 4 out, EDID support

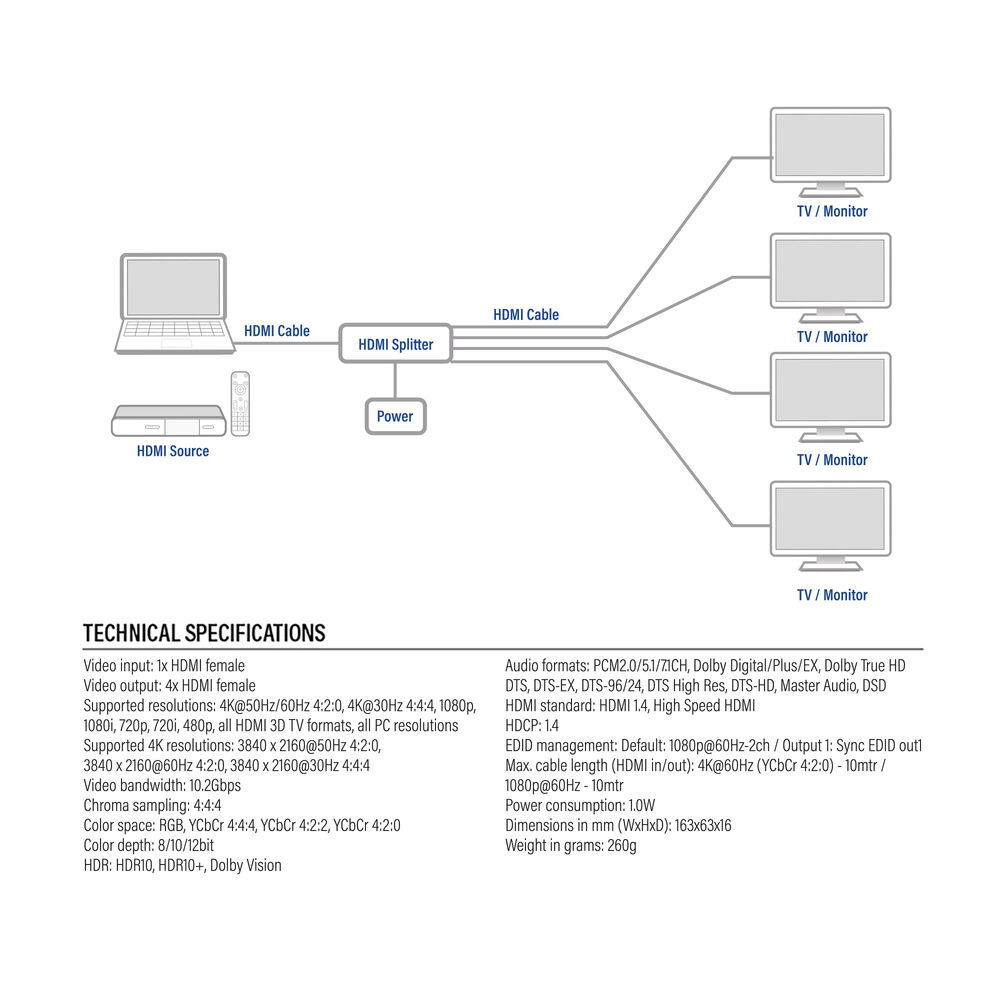

Specifications
20 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 5 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| HDCP version | 1.4 |

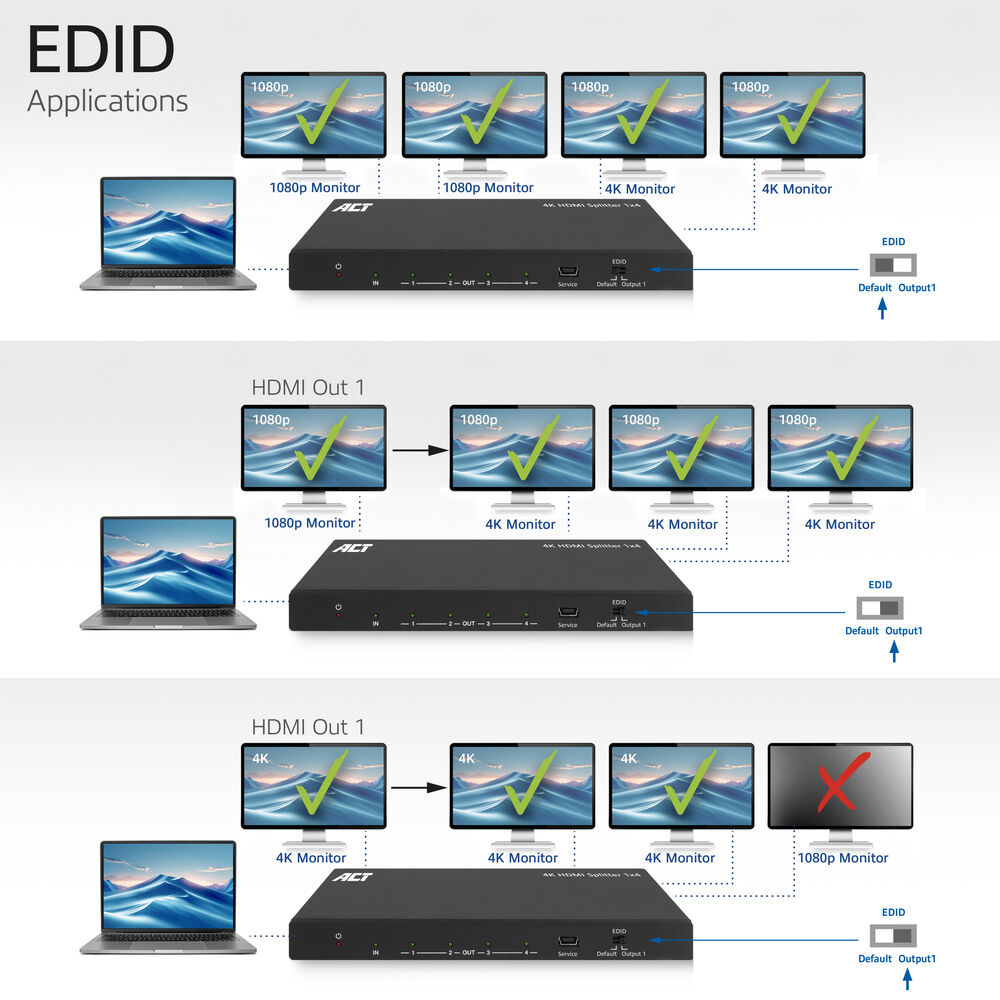

| Extended display identification data (EDID) | Yes |
| Data transfer rate | 10.2 Gbit/s |
| HDCP | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (typical) | 5 W |

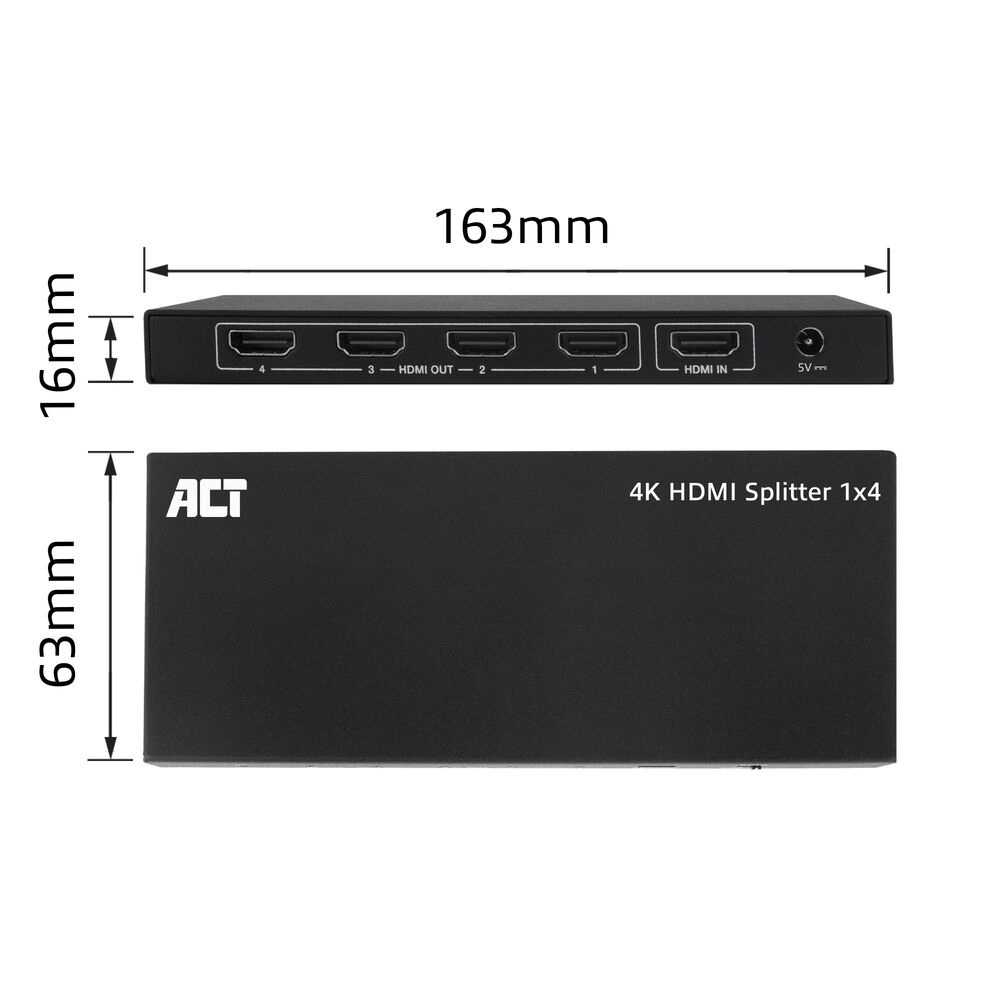

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163 mm |
| Depth | 63 mm |
| Height | 16 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
