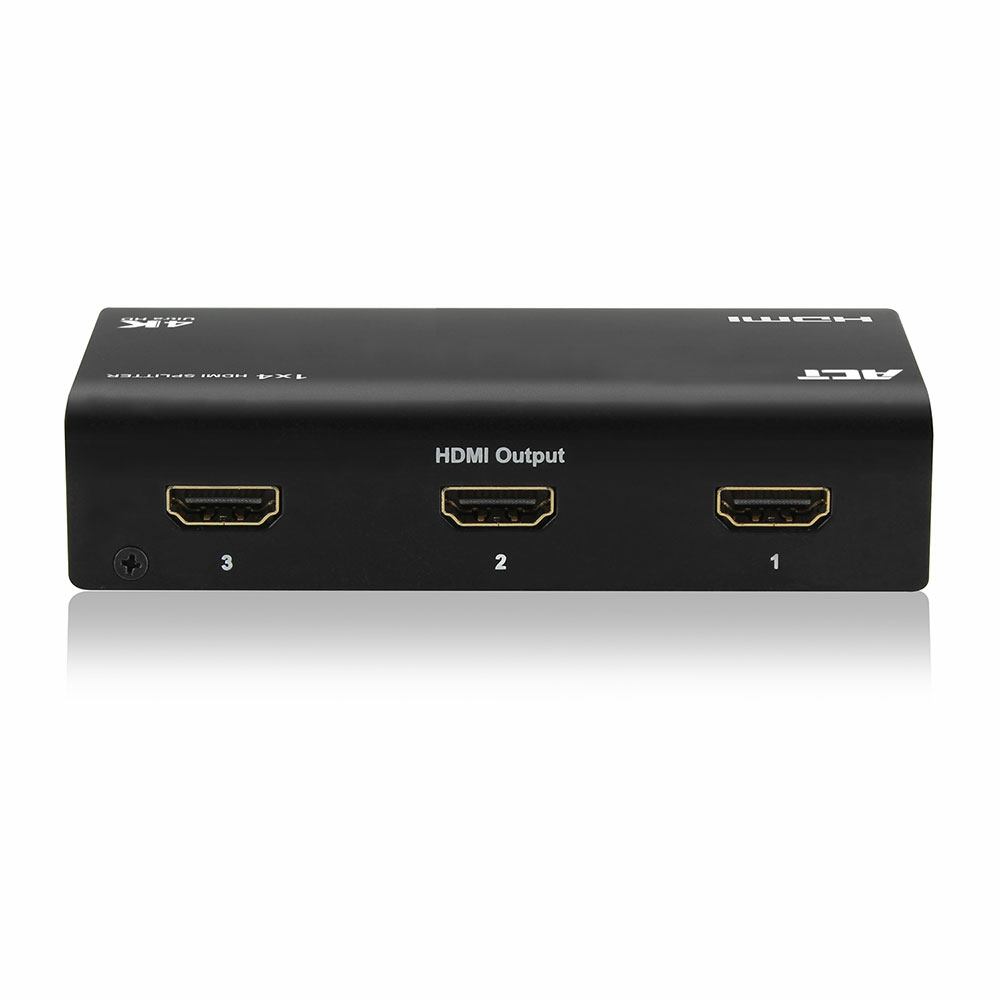

AC7830 1x 4 HDMI splitter, 3D and 4K support
Model AC7830EAN 8716065403527
26 specifications
- Weight385 g
- ColourBlack
- Video ports quantity5
- AC input voltage5 V
- Width203 mm
Overview
- Weight
- 385 g
- Colour
- Black
- Video ports quantity
- 5
- AC input voltage
- 5 V
- Width
- 203 mm
- Brand
- ACT
- Category
- Video Splitter
- Model
- AC7830
- Part number
- AC7830
- EAN / UPC
- 8716065403527
- Also known as
- ACT AC7830 1x 4 HDMI splitter, 3D and 4K support
Specifications
26 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 5 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 1.4a |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| 3D | Yes |
| Maximum refresh rate | 30 Hz |
| HDCP | Yes |
| Dolby technologies | DTS-HD Master Audio, Dolby Digital, Dolby TrueHD |

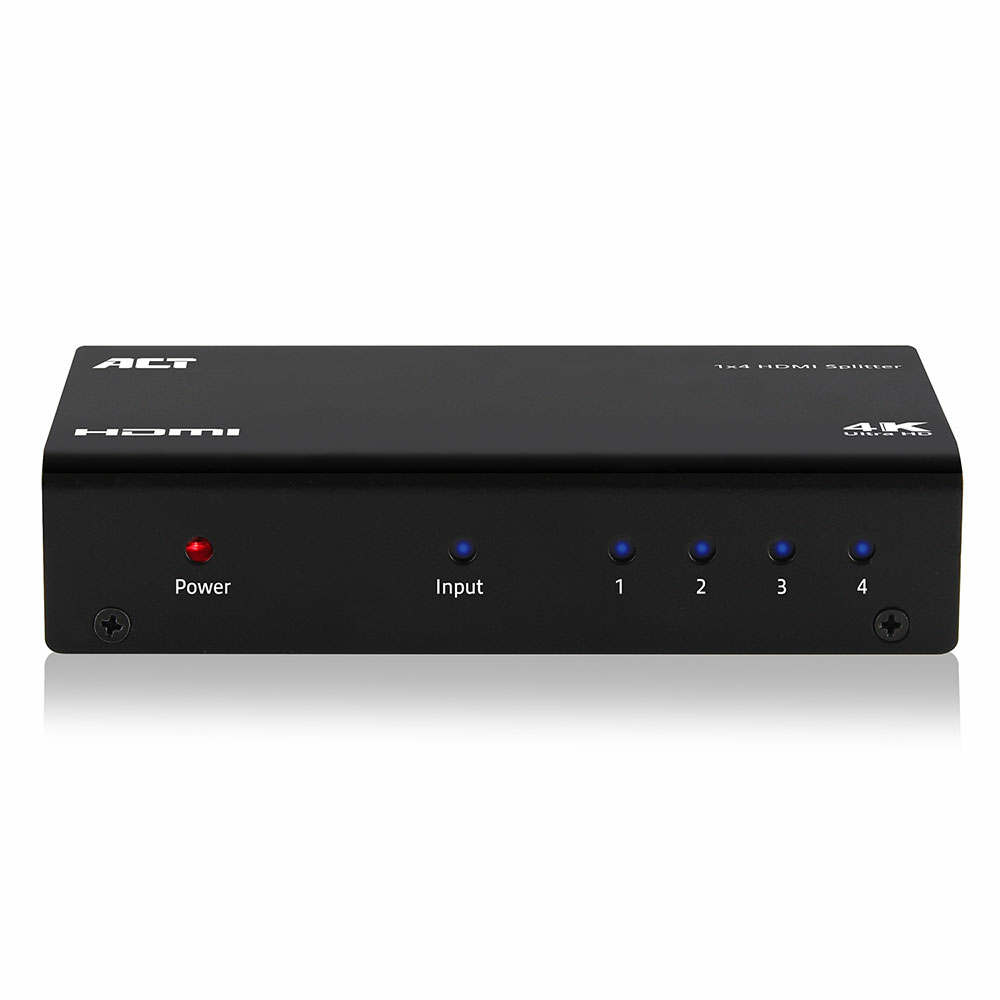

| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (typical) | 3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 203 mm |
| Depth | 150 mm |
| Height | 52 mm |
| Weight | 385 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 203 mm |
| Package depth | 52 mm |
| Package height | 150 mm |
| Package weight | 430 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
