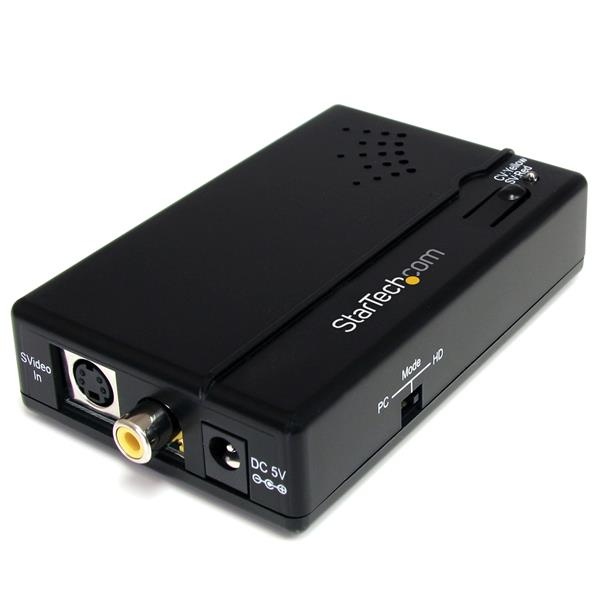

Composite and S-Video to HDMI Converter with Audio
Model VID2HDCONEAN 971501066324
31 specifications
- Weight79 g
- ColourBlack
- Converter typeActive video converter
- Maximum video resolution1600 x 1200 pixels
- Host interfaceComposite, S-Video
- External power adapterYes
Overview
- Weight
- 79 g
- Colour
- Black
- Converter type
- Active video converter
- Maximum video resolution
- 1600 x 1200 pixels
- Host interface
- Composite, S-Video
- External power adapter
- Yes
- Brand
- StarTech.com
- Category
- Video Signal Converter
- Model
- VID2HDCON
- Part number
- VID2HDCON
- EAN / UPC
- 971501066324, 012300519397, 012304322788, 065030845274 +11 more
- Also known as
- StarTech.com Composite and S-Video to HDMI Converter with Audio
Specifications
31 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Converter type | Active video converter |
| Product colour | Black |
| Housing material | Plastic |
| Certification | CE, FCC, REACH |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1600 x 1200 pixels |
| Video resolutions | 1024 x 768,1280 x 1024,1600 x 1200 |
| Analog signal format system | NTSC, PAL |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | Composite, S-Video |
| Output interface | HDMI |
| 3.5 mm connector | Yes |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Input current | 0.3 A |
| Input voltage | 100 - 240 V |
| Operating current | 1.2 A |
| Operating voltage | 5 V |
| Power consumption (typical) | 2.5 W |
| Power plug type | Type M |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163 mm |
| Depth | 164 mm |
| Height | 34 mm |
| Weight | 79 g |
Packaging data
| Specification | Value |
|---|---|
| Included power plug types | ANZ, EU, JP, NA, UK |
| Package width | 155 mm |
| Package depth | 124 mm |
| Package height | 56 mm |
| Package weight | 310 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
