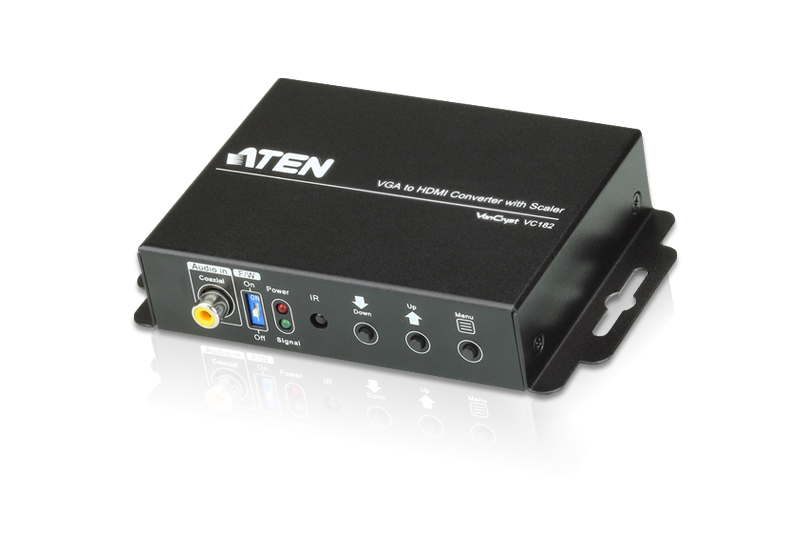

VC182-AT-G video signal converter
1920 x 1200 pixels
Model VC182-AT-GEAN 4054843760337
35 specifications
- Weight420 g
- ColourBlack
- InternalNo
- Maximum video resolution1920 x 1200 pixels
- Host interfaceVGA (D-Sub)
- Input voltage5 V
Overview
- Weight
- 420 g
- Colour
- Black
- Internal
- No
- Maximum video resolution
- 1920 x 1200 pixels
- Host interface
- VGA (D-Sub)
- Input voltage
- 5 V
- Brand
- ATEN
- Category
- Video Signal Converter
- Model
- VC182-AT-G
- Part number
- VC182-AT-G
- EAN / UPC
- 4054843760337, 6727920054046
- Also known as
- ATEN VC182-AT-G video signal converter 1920 x 1200 pixels
Specifications
35 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Metal |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1200 pixels |
| Video resolutions | 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1400 x 1050,1600 x 1200,1680 x 1050,1920 x 1080 |
| Supported video modes | 480i, 480p, 1080i, 1080p |
| Supported aspect ratios | 4:3, 16:10 |
| Bandwidth | 165 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | VGA (D-Sub) |
| Output interface | HDMI |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 1.56 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 83 mm |
| Height | 28 mm |
| Weight | 420 g |
Packaging data
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Quantity | 1 |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 590 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 2.1 kg |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.37 kg |
| Products per master (outer) case | 5 pc(s) |
