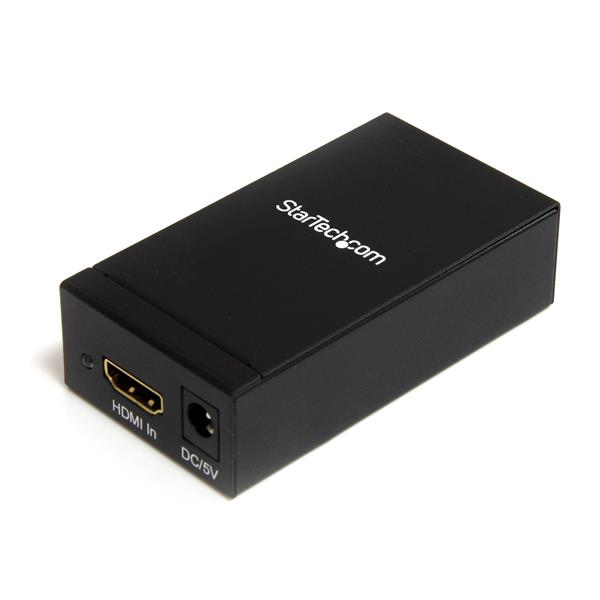

HDMI or DVI to DisplayPort Active Converter
Model HDMI2DPEAN 5054484330288
33 specifications
- Weight109 g
- ColourBlack
- Converter typeActive video converter
- Maximum video resolution1920 x 1200 pixels
- Audio output channels5.1 channels
- Host interfaceHDMI
Overview
- Weight
- 109 g
- Colour
- Black
- Converter type
- Active video converter
- Maximum video resolution
- 1920 x 1200 pixels
- Audio output channels
- 5.1 channels
- Host interface
- HDMI
- Brand
- StarTech.com
- Category
- Video Signal Converter
- Model
- HDMI2DP
- Part number
- HDMI2DP
- EAN / UPC
- 5054484330288, 044112842813, 065030841498, 112840388023 +10 more
- Also known as
- StarTech.com HDMI or DVI to DisplayPort Active Converter
Specifications
33 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Converter type | Active video converter |
| LED indicators | Power |
| Product colour | Black |
| Housing material | Steel |
| Certification | CE, FCC, RoHS |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1200 pixels |
| Maximum refresh rate | 60 Hz |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| Audio support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

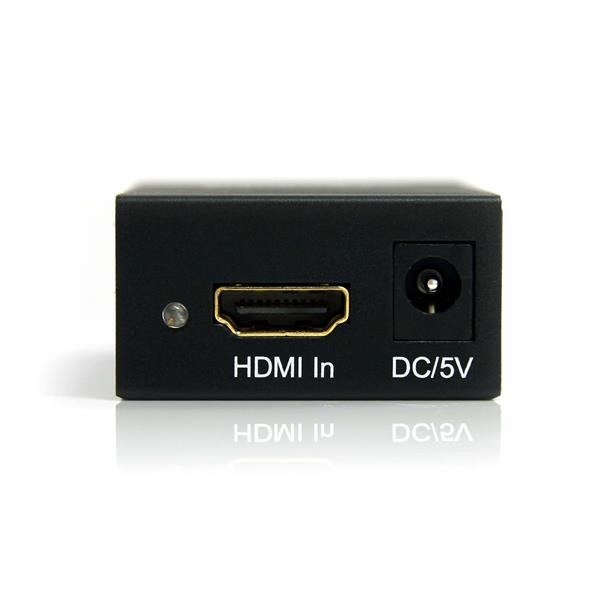

| Host interface | HDMI |

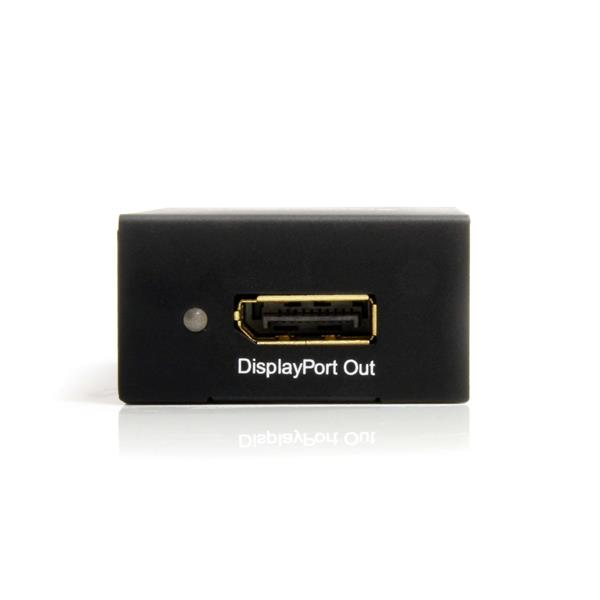

| Output interface | DisplayPort |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Input current | 0.5 A |
| Input voltage | 100 - 240 V |
| Operating current | 2 A |
| Operating voltage | 5 V |
| Power consumption (typical) | 5 W |
| Power plug type | Type N |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43 mm |
| Depth | 82 mm |
| Height | 23 mm |
| Weight | 109 g |
Packaging data
| Specification | Value |
|---|---|

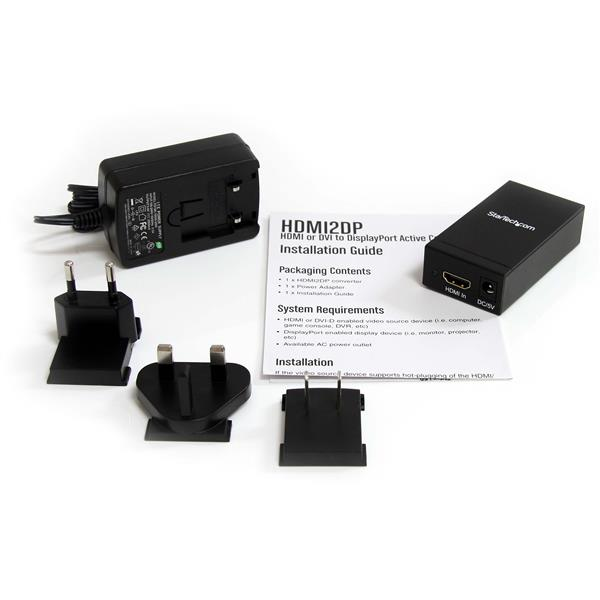

| AC adapter included | Yes |
| Included power plug types | EU, NA, UK |
| Manual | Yes |
| Package width | 227 mm |
| Package depth | 156 mm |
| Package height | 54 mm |
| Package weight | 392 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
