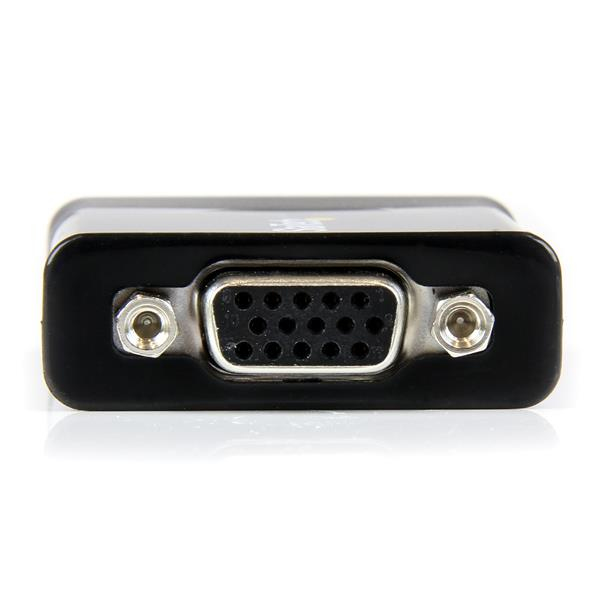

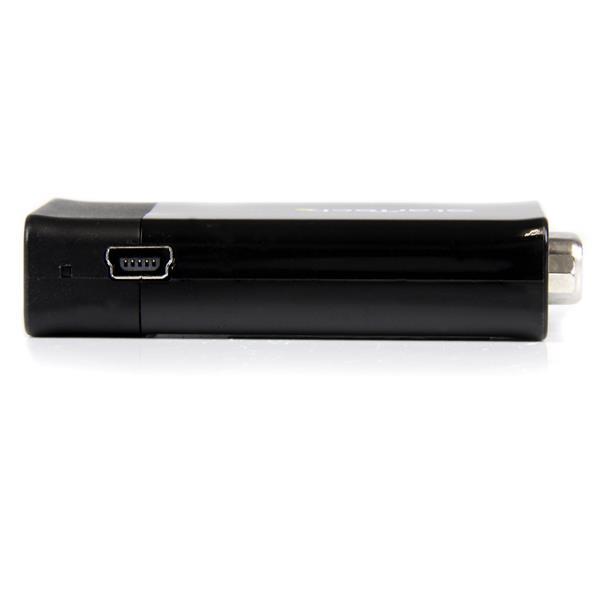

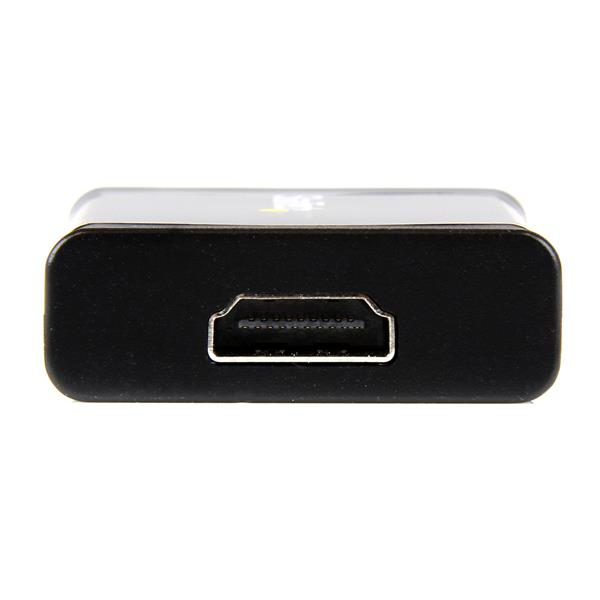

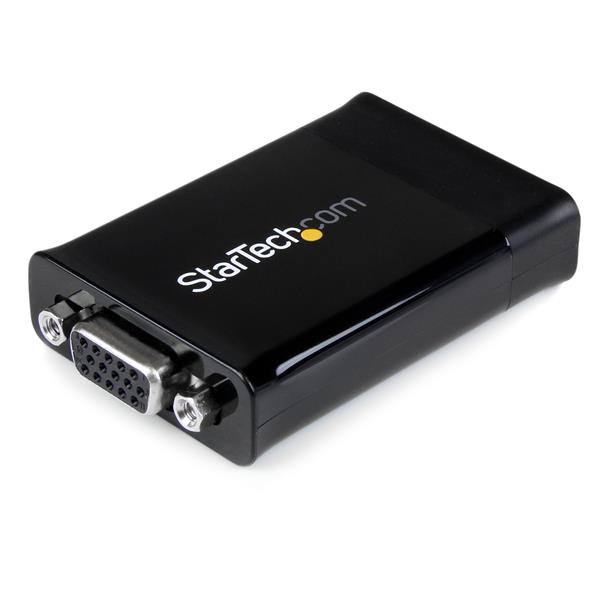

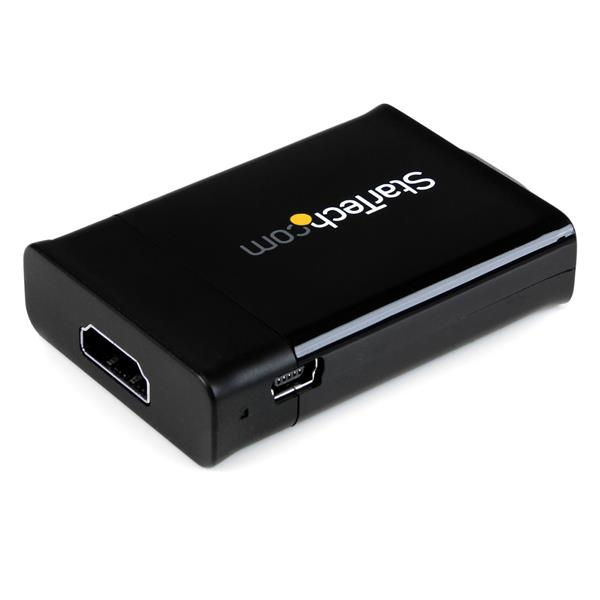

Micro HDMI or HDMI to VGA Adapter
1920x1200
Model MCHD2VGAEAN 065030845991
29 specifications
- Weight38 g
- ColourBlack
- Converter typeActive video converter
- Maximum video resolution1920 x 1200 pixels
- Host interfaceHDMI
- External power adapterYes
Overview
- Weight
- 38 g
- Colour
- Black
- Converter type
- Active video converter
- Maximum video resolution
- 1920 x 1200 pixels
- Host interface
- HDMI
- External power adapter
- Yes
- Brand
- StarTech.com
- Category
- Video Signal Converter
- Model
- MCHD2VGA
- Part number
- MCHD2VGA
- EAN / UPC
- 065030845991, 533555984025, 6213759755600
- Also known as
- StarTech.com Micro HDMI or HDMI to VGA Adapter - 1920x1200
Specifications
29 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Converter type | Active video converter |
| Product colour | Black |
| Housing material | Plastic |
| Certification | CE, FCC, REACH |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1200 pixels |
| Video resolutions | 1600 x 1200,1920 x 1080,1920 x 1200 |
| Supported video modes | 1080p, 480p, 720p |
| Maximum refresh rate | 60 Hz |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | HDMI |
| Output interface | VGA |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Input voltage | 100 - 240 V |
| Operating current | 1 A |
| Operating voltage | 5 V |
| Power consumption (typical) | 1.75 W |
| USB powered | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 41 mm |
| Depth | 64 mm |
| Height | 14 mm |
| Weight | 38 g |
Packaging data
| Specification | Value |
|---|---|

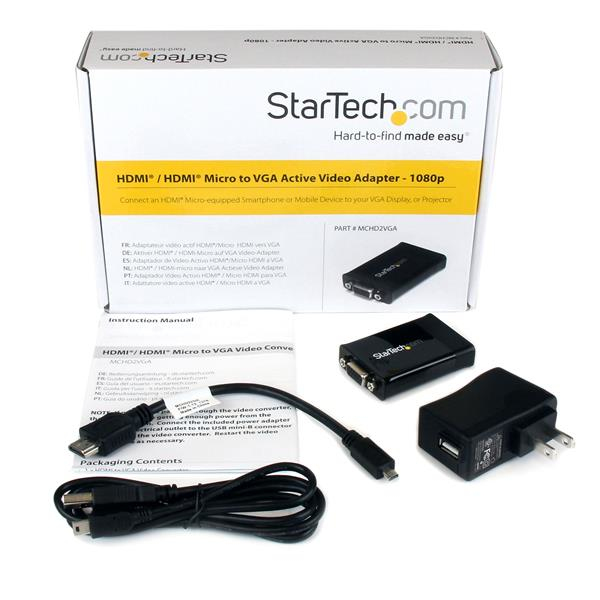

| Cables included | HDMI |
| AC adapter included | Yes |
| Package width | 150 mm |
| Package depth | 210 mm |
| Package height | 50 mm |
| Package weight | 284 g |
