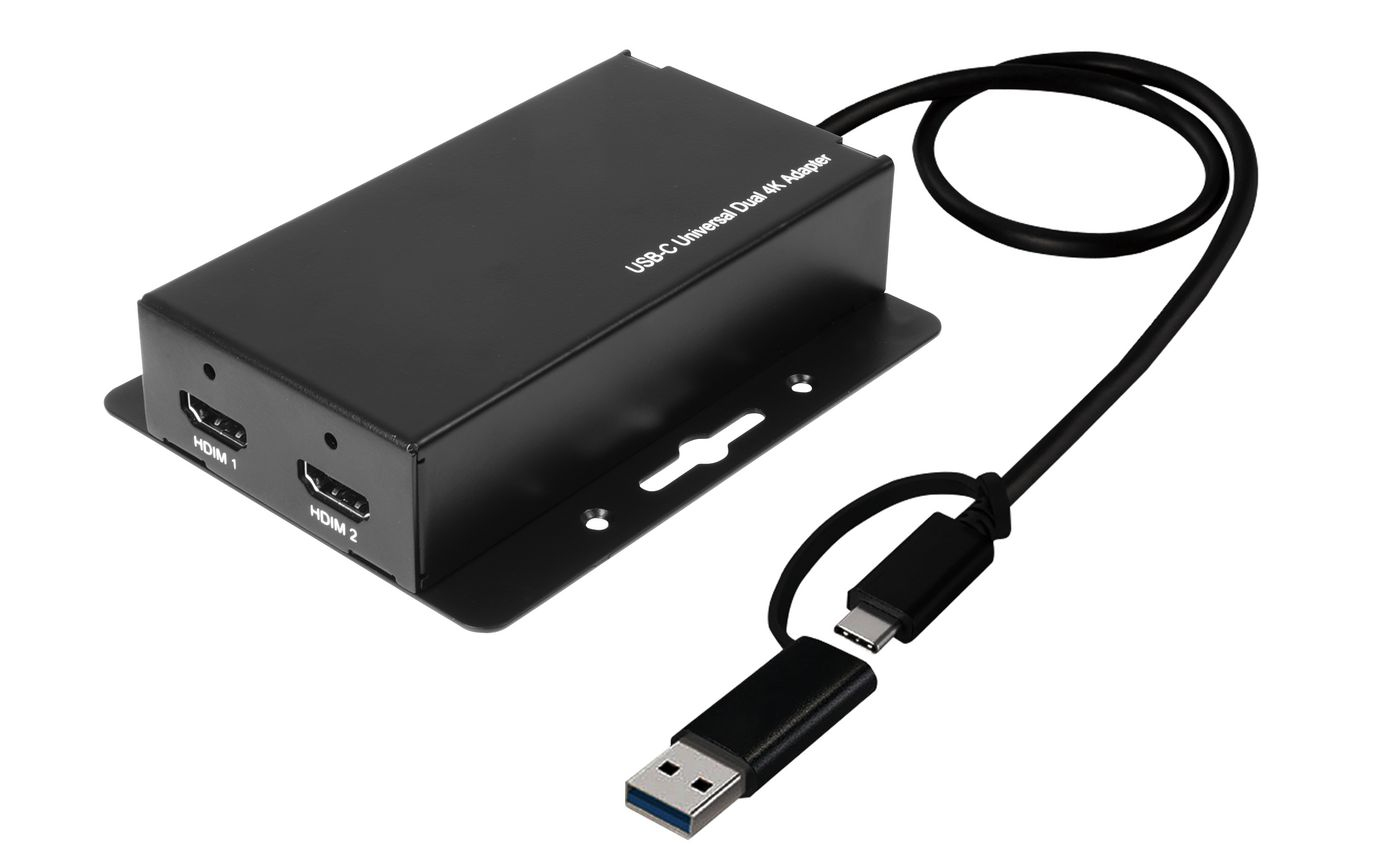

VLUSB3HDMIX2 video capturing device
Model VLUSB3HDMIX2EAN 5715063714324
31 specifications
- Weight75 g
- ColourBlack
- Audio supportYes
- Operating temperature (T-T)-5 - 55 °C
- Width102 mm
Overview
- Weight
- 75 g
- Colour
- Black
- Audio support
- Yes
- Operating temperature (T-T)
- -5 - 55 °C
- Width
- 102 mm
- Brand
- Vivolink
- Category
- Video Capturing Device
- Model
- VLUSB3HDMIX2
- Part number
- VLUSB3HDMIX2
- EAN / UPC
- 5715063714324
- Also known as
- Vivolink VLUSB3HDMIX2 video capturing device
Specifications
31 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Internal | No |
| HD type | 4K Ultra HD |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Housing material | Metal |
| Plug and Play | Yes |
Audio
| Specification | Value |
|---|---|
| Audio support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB ports quantity | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0 |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 102 mm |
| Depth | 61 mm |
| Height | 13 mm |
| Weight | 75 g |
Other features
| Specification | Value |
|---|---|
| Power requirements | USB3.0 |
| Dimensions (WxDxH) | 113 x 60 x 15 mm |
| Maximum resolution | 3840 x 2160 pixels |
| Video in | USB 3.0 |
| Video out | HDMI 4K60 |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-A to USB Type-C |
| User guide | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 153 g |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
