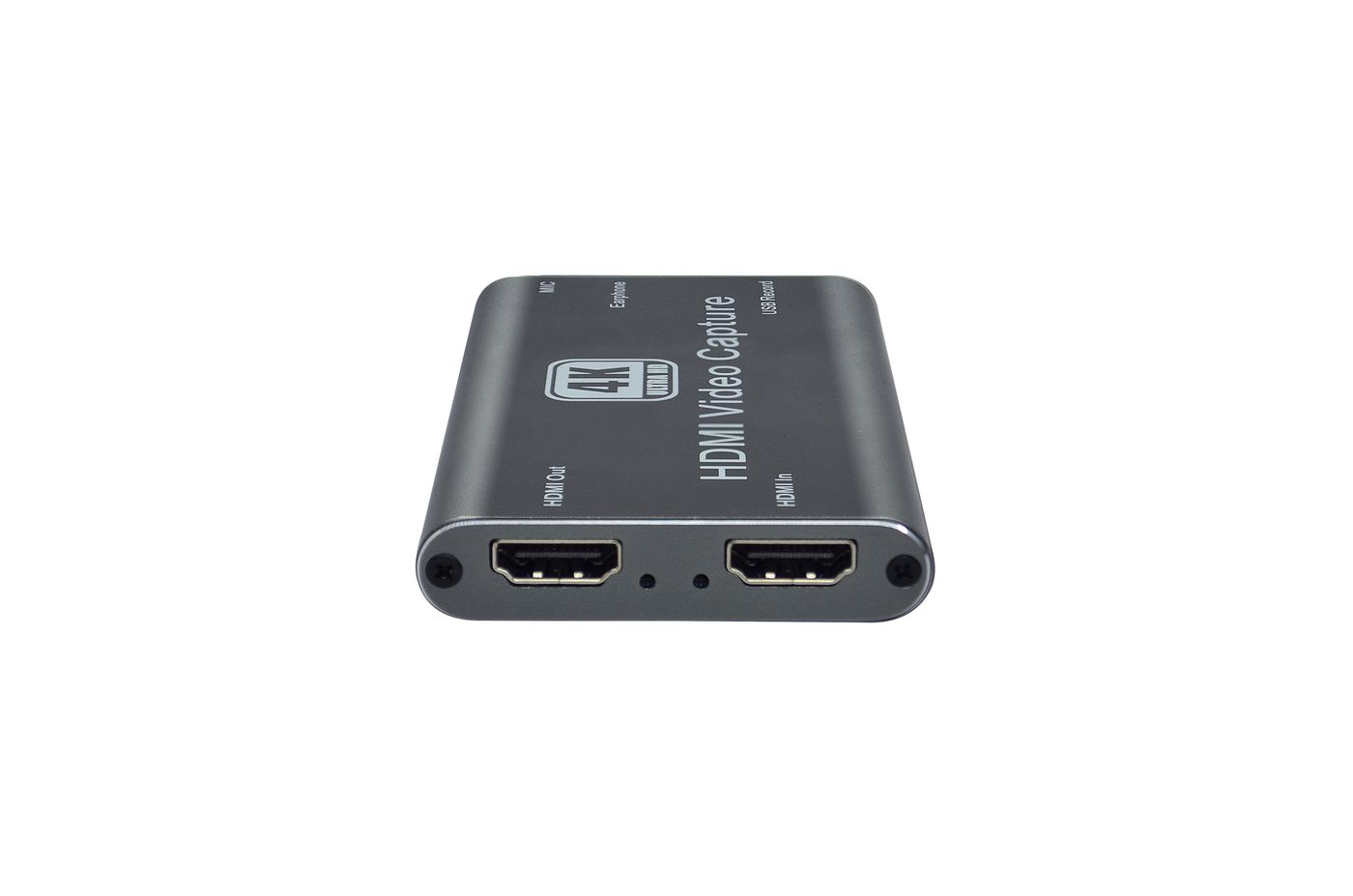

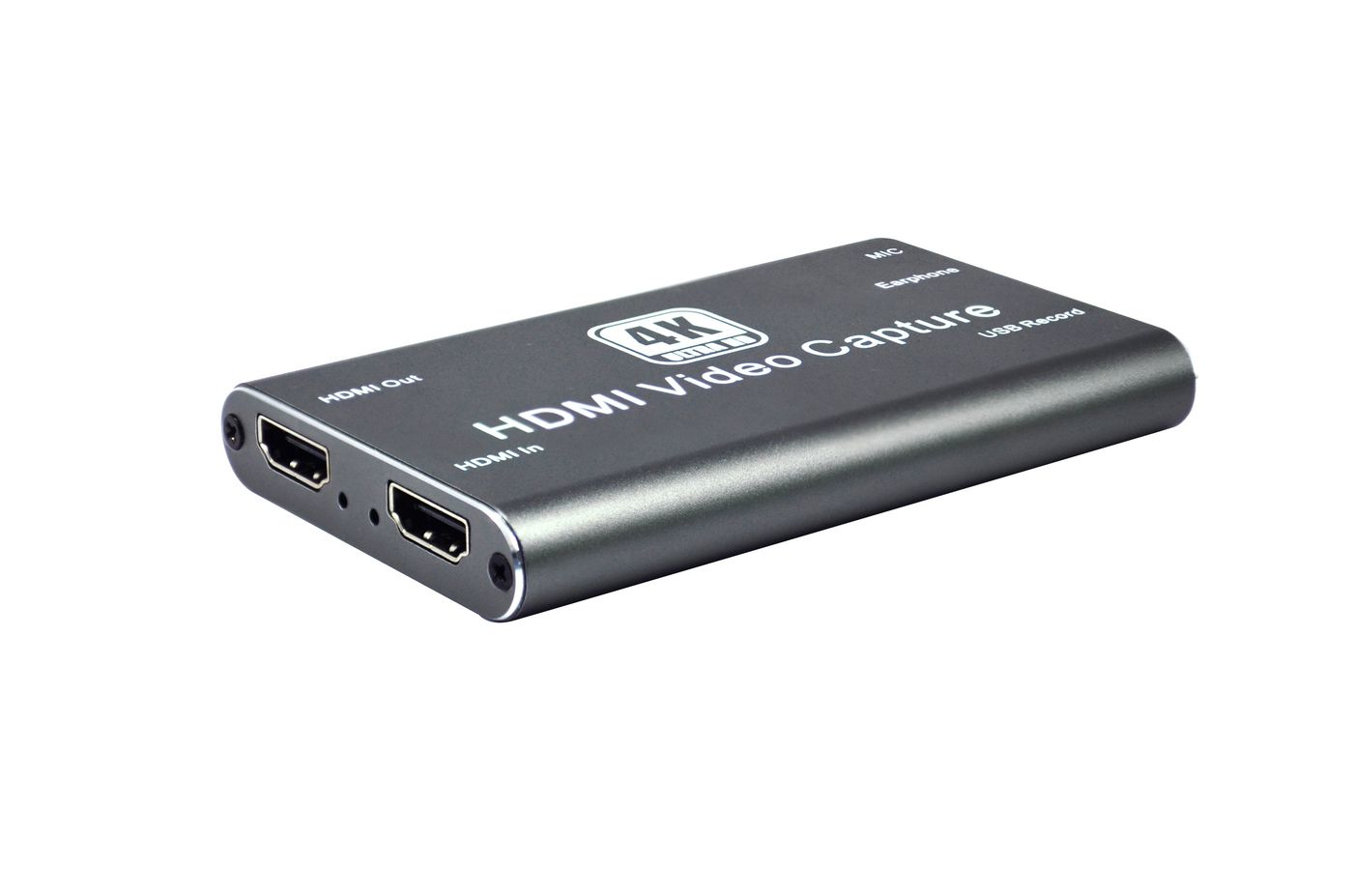

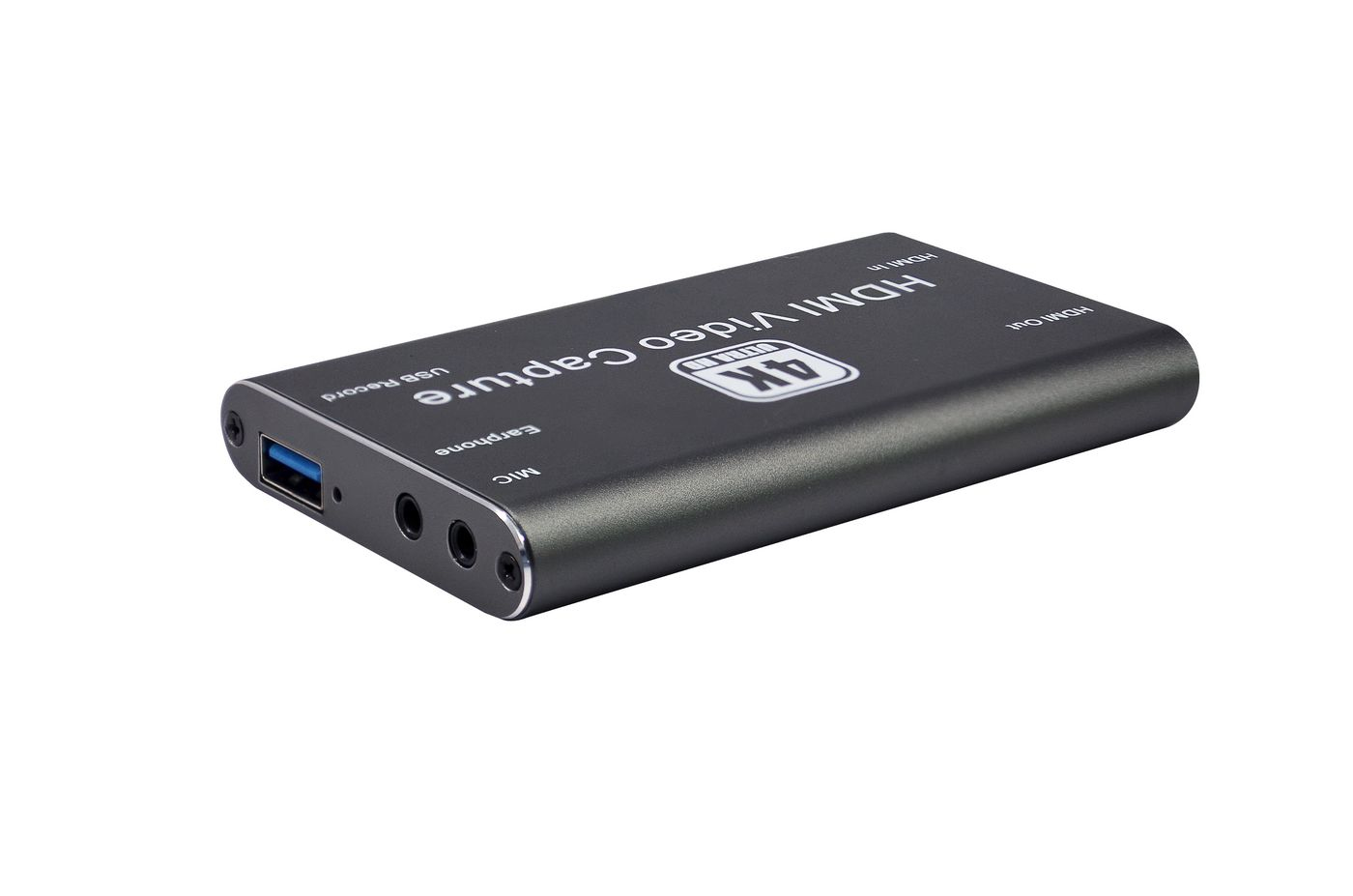

VLCAPTURE1 video capturing device HDMI
Model VLCAPTURE1EAN 5704174093916
35 specifications
- Weight75 g
- InternalNo
- Audio supportYes
- Video compression formatsMPEG4
- HDMI ports quantity2
- Operating temperature (T-T)-5 - 55 °C
Overview
- Weight
- 75 g
- Internal
- No
- Audio support
- Yes
- Video compression formats
- MPEG4
- HDMI ports quantity
- 2
- Operating temperature (T-T)
- -5 - 55 °C
- Brand
- Vivolink
- Category
- Video Capturing Device
- Model
- VLCAPTURE1
- Part number
- VLCAPTURE1
- EAN / UPC
- 5704174093916
- Also known as
- Vivolink VLCAPTURE1 video capturing device HDMI
Specifications
35 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Internal | No |
| Host interface | HDMI |
| Video capture resolution (max) | 1920 x 1080 pixels |
| LED indicators | Power |
| Plug and Play | Yes |
Audio
| Specification | Value |
|---|---|
| Audio support | Yes |
File formats
| Specification | Value |
|---|---|
| Video compression formats | MPEG4 |
| Converter type | Format converter |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |

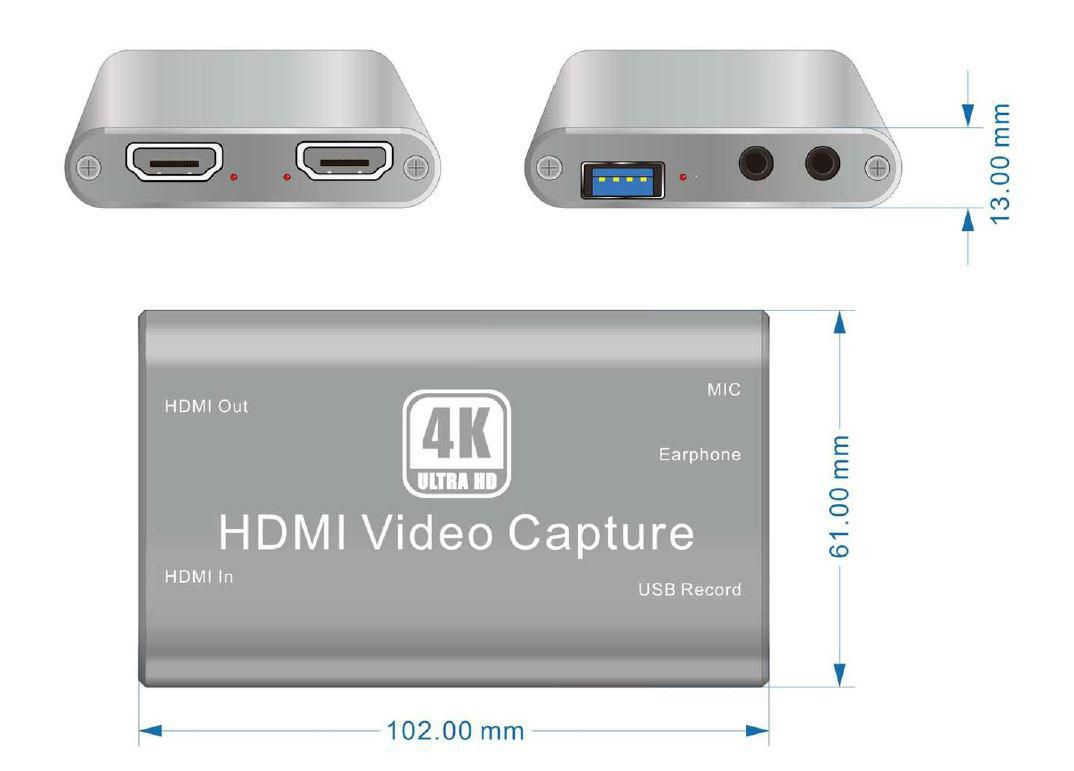

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 102 mm |
| Depth | 61 mm |
| Height | 13 mm |
| Weight | 75 g |
Other features
| Specification | Value |
|---|---|
| Power requirements | USB3.0 |
| Dimensions (WxDxH) | 102 x 61 x 13 mm |
| Maximum resolution | 3840 x 2160 pixels |
| Video in | HDMI |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-A |
| User guide | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 164 g |
| Package depth | 130 mm |
| Package height | 40 mm |
| Package width | 161 mm |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
