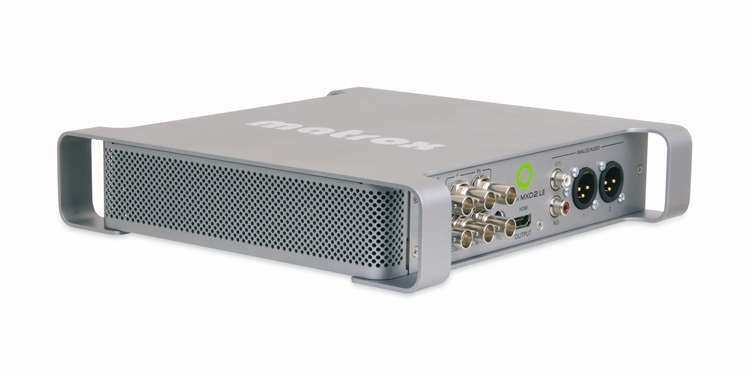

MXO2 LE MAX
Model MXO2 LE MAXPart no. MXO2LEMAX/I/NCEAN 630396223914
32 specifications
- Weight1.25 kg
- InternalNo
- Analog signal format systemNTSC, NTSC-EIAJ, PAL
- HDMI ports quantity2
- AC input voltage100-240 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 1.25 kg
- Internal
- No
- Analog signal format system
- NTSC, NTSC-EIAJ, PAL
- HDMI ports quantity
- 2
- AC input voltage
- 100-240 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Matrox
- Category
- Video Capturing Device
- Model
- MXO2 LE MAX
- Part numbers
- MXO2LEMAX/I/NC, MXO2LEMAX/I/NC/A
- EAN / UPC
- 630396223914
- Also known as
- Matrox MXO2 LE MAX video capturing device
Specifications
32 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Internal | No |
| Certification | FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC-EIAJ, PAL |
| Supported video modes | 720p, 1080i, 1080p |

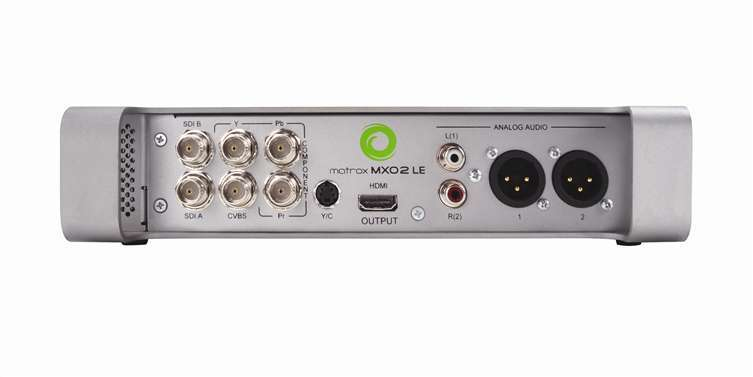

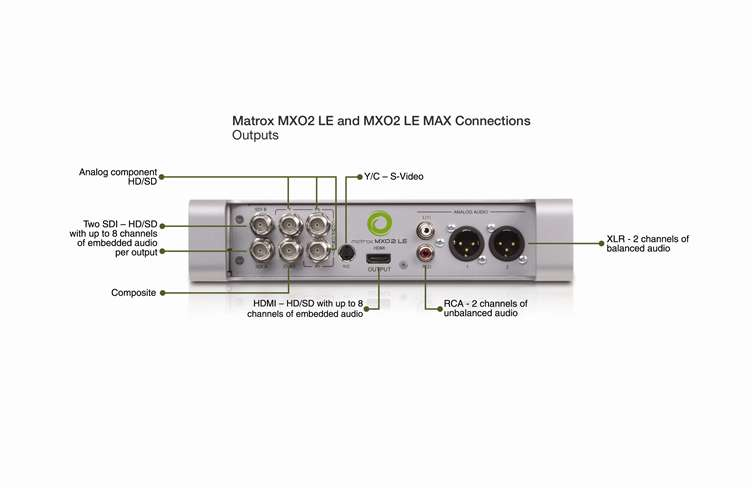

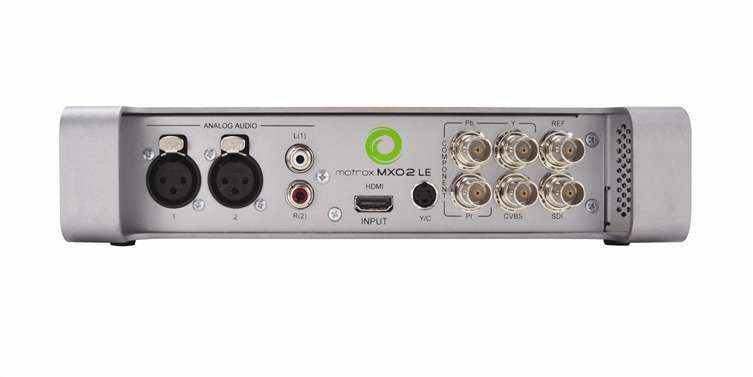

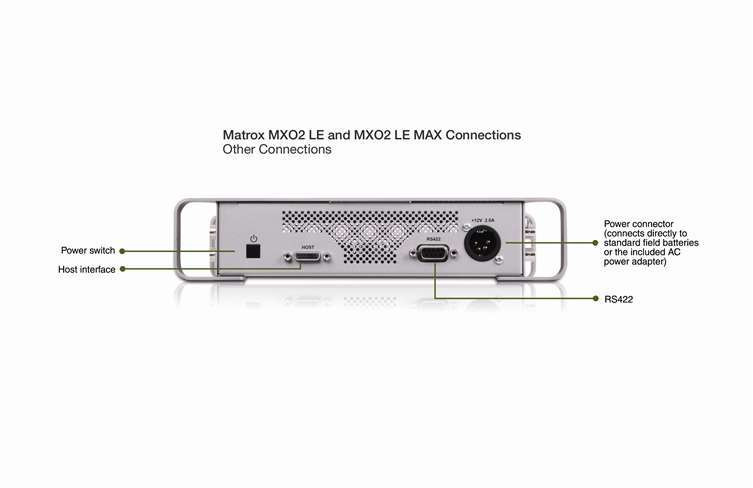

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 0 |
| S-Video inputs quantity | 1 |
| S-Video outputs quantity | 1 |
| Composite video in | 1 |
| Composite video out | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
| Firewire (IEEE 1394) ports | 0 |

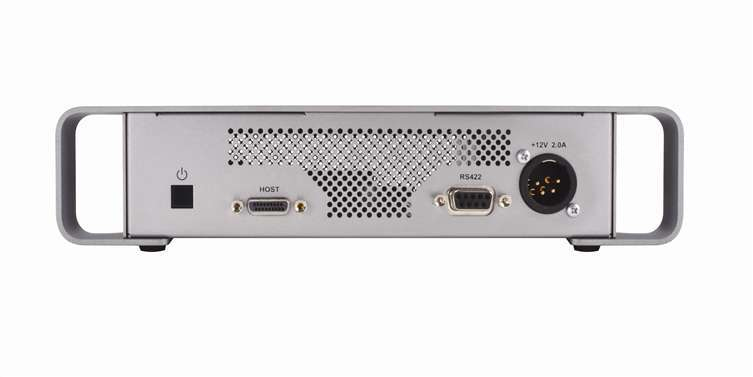

Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 3 A |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.9 Mavericks |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 241 mm |
| Depth | 237 mm |
| Height | 51 mm |
| Weight | 1.25 kg |
