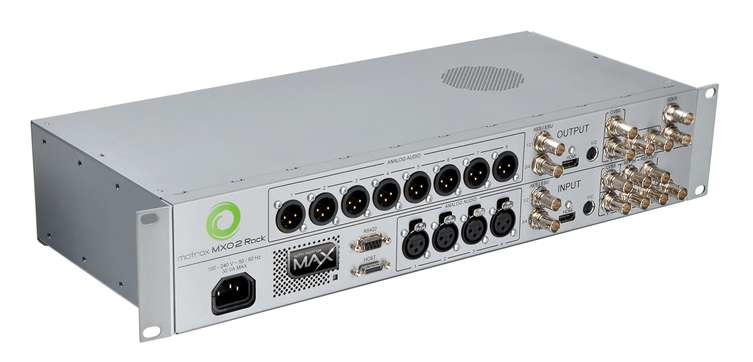

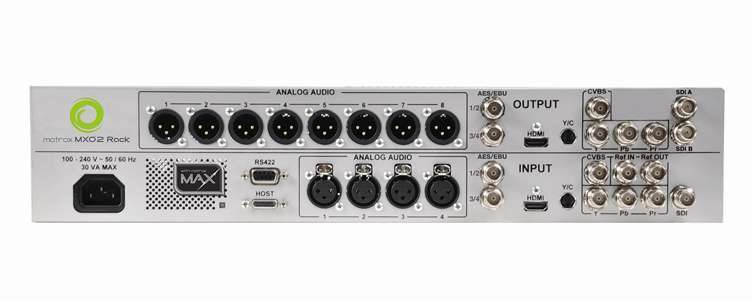

Matrox MX02 Rack MAX
Matrox

MX02 Rack MAX

Model MX02 Rack MAXPart no. MXO2RUMAX/IEAN 630396222412

31 specifications
  • Weight7 kg
  • InternalNo
  • Analog signal format systemNTSC, NTSC-EIAJ, PAL
  • HDMI ports quantity2
  • AC input voltage100-240 V
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Weight
7 kg
Internal
No
Analog signal format system
NTSC, NTSC-EIAJ, PAL
HDMI ports quantity
2
AC input voltage
100-240 V
Operating temperature (T-T)
0 - 40 °C
Brand
Matrox
Model
MX02 Rack MAX
Part numbers
MXO2RUMAX/I, MXO2RUMAX/I/T, MXO2RUMAX/I/A
EAN / UPC
630396222412, 630396241987
Also known as
Matrox MX02 Rack MAX video capturing device

Specifications

31 specifications in 9 groups

Performance

InternalNo
CertificationFCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI

Video

Analog signal format systemNTSC, NTSC-EIAJ, PAL
Supported video modes720p, 1080i, 1080p

Ports & interfaces

HDMI ports quantity2
HDMI in1
Number of HDMI outputs1
Headphone outputs0
S-Video inputs quantity1
S-Video outputs quantity1
Composite video in1
Composite video out1
Component video (YPbPr/YCbCr) in1
Component video (YPbPr/YCbCr) out1
Firewire (IEEE 1394) ports0

Power

AC input voltage100-240 V
AC input frequency50 - 60 Hz
AC adapter output voltage12 V
AC adapter output current3 A

Software

Windows operating systems supportedWindows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.9 Mavericks

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 95%

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width208 mm
Depth437 mm
Height86 mm
Weight7 kg

Packaging content

AC adapter includedYes
