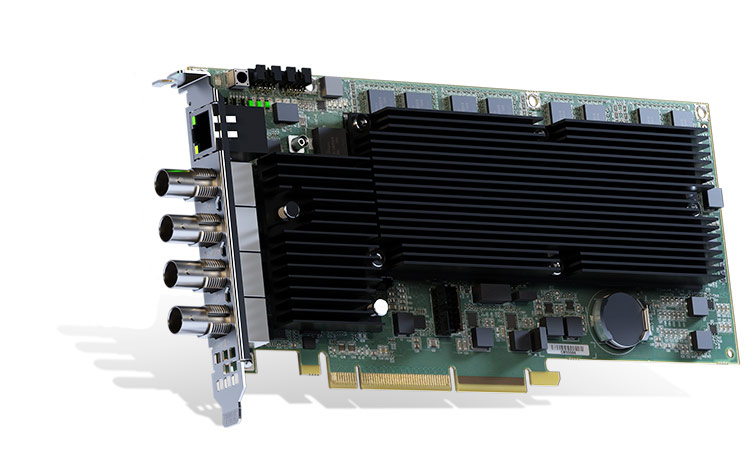

MURAIPXI-E4SHF video capturing device Internal PCIe
Model MURAIPXI-E4SHF
24 specifications
- ConnectivityPCIe x16 2.0
- Weight268 g
- ColourBlack, Green
- Video codecsH.264/MPEG-4 (AVC)
- Audio (L/R) in0
- Windows operating systems supportedWindows 10, Windows 7
Overview
- Connectivity
- PCIe x16 2.0
- Weight
- 268 g
- Colour
- Black, Green
- Video codecs
- H.264/MPEG-4 (AVC)
- Audio (L/R) in
- 0
- Windows operating systems supported
- Windows 10, Windows 7
- Brand
- Matrox
- Category
- Video Capturing Device
- Model
- MURAIPXI-E4SHF
- Part number
- MURAIPXI-E4SHF
- Also known as
- Matrox MURAIPXI-E4SHF video capturing device Internal PCIe
Specifications
24 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Green |
| Internal | Yes |
| Host interface | PCIe |
| Interface | PCIe x16 2.0 |
| Certification | FCC B, CE B, ACMA B, VCCI B, MSIP, ICES - 003 B, REACH |
Video
| Specification | Value |
|---|---|
| Video codecs | H.264/MPEG-4 (AVC) |
Ports & interfaces
| Specification | Value |
|---|---|
| Audio (L/R) in | 0 |
| Headphone outputs | 0 |
| S-Video inputs quantity | 0 |
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Firewire (IEEE 1394) ports | 0 |
| RJ-45 ports quantity | 1 |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7 |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 229.1 mm |
| Depth | 111.2 mm |
| Weight | 268 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity | 1 |
