161336 video capturing device USB 2.0
Model 161336EAN 950971414095
37 specifications
- Weight70 g
- InternalNo
- Analog signal format systemNTSC, PAL, SECAM
- Import image formats supportedBMP, JPG
- USB portYes
- Power supply typeUSB
Overview
- Weight
- 70 g
- Internal
- No
- Analog signal format system
- NTSC, PAL, SECAM
- Import image formats supported
- BMP, JPG
- USB port
- Yes
- Power supply type
- USB
- Brand
- Manhattan
- Category
- Video Capturing Device
- Model
- 161336
- Part number
- 161336
- EAN / UPC
- 950971414095, 012302510781, 070090133681, 115971248983 +7 more
- Also known as
- Manhattan 161336 video capturing device USB 2.0
Specifications
37 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Internal | No |
| Host interface | USB 2.0 |
| Capturing from | Digital camera, Satellite TV, VCR |
| Plug and Play | Yes |
| Certification | CE, FCC |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Video capturing speed (PAL) | 25 fps |
| Video capturing speed (NTSC) | 30 fps |
| Maximum video capture resolution (PAL) | 720 x 576 pixels |
| Maximum video capture resolution (NTSC) | 720 x 480 pixels |
File formats
| Specification | Value |
|---|---|
| Import image formats supported | BMP, JPG |
| Import video formats supported | AVI, MPEG1, MPEG2, MPEG4, WMV |
| Audio formats supported | MP3, WMA |
| Image formats supported | BMP, JPG |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| USB ports quantity | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 0 |
| S-Video inputs quantity | 1 |
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 1 |
| Firewire (IEEE 1394) ports | 0 |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional |
| Bundled software | VHS2DVD |
System requirements
| Specification | Value |
|---|---|
| Minimum system requirements | CD-ROM |
| Minimum RAM | 256 MB |
| Minimum processor | Pentium 4 |
| Minimum storage drive space | 1 GB |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 108 mm |
| Depth | 35 mm |
| Height | 15 mm |
| Weight | 70 g |
Packaging content
| Specification | Value |
|---|---|

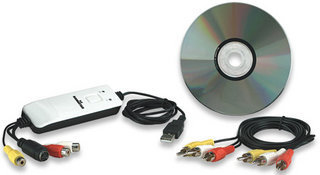

| Cables included | RCA |
| Manual | Yes |
