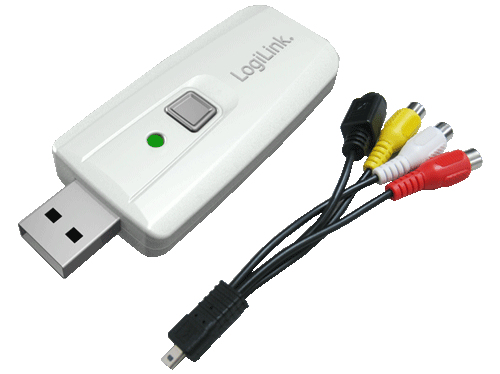

USB 2.0 Audio & Video Grabber
Model USB 2.0 Audio & Video GrabberPart no. VG0011EAN 4052792006421
25 specifications
- Weight20 g
- InternalNo
- Analog signal format systemNTSC, PAL
- Image formats supportedBMP
- Audio (L/R) in1
- Power supply typeUSB
Overview
- Weight
- 20 g
- Internal
- No
- Analog signal format system
- NTSC, PAL
- Image formats supported
- BMP
- Audio (L/R) in
- 1
- Power supply type
- USB
- Brand
- LogiLink
- Category
- Video Capturing Device
- Model
- USB 2.0 Audio & Video Grabber
- Part number
- VG0011
- EAN / UPC
- 4052792006421, 4260113574065
- Also known as
- LogiLink USB 2.0 Audio & Video Grabber video capturing device
Specifications
25 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Certification | CE |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL |
File formats
| Specification | Value |
|---|---|
| Image formats supported | BMP |
Ports & interfaces
| Specification | Value |
|---|---|
| Audio (L/R) in | 1 |
| S-Video inputs quantity | 1 |
| Composite video in | 1 |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 256 MB |
| Minimum processor | 1.2 GHz |
| Minimum storage drive space | 4 GB |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30 mm |
| Depth | 10 mm |
| Height | 73 mm |
| Weight | 20 g |
| Package dimensions (WxDxH) | 231 x 145 x 65 mm |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 30 x 72 x 10 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
| Cables included | S-Video, USB |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 170 g |
