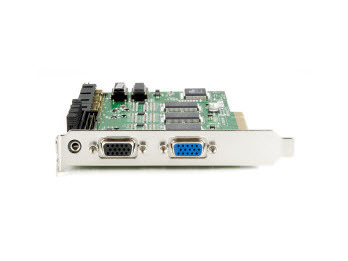

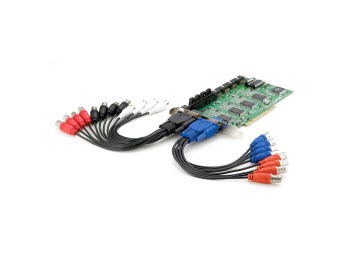

FCS-8006 video capturing device Internal PCI
Model FCS-8006EAN 846359001080
23 specifications
- InternalYes
- Analog signal format systemNTSC, PAL
- Audio (L/R) in4
- Bundled software64-CH Monitor
- Minimum system requirementsWindows XP
- Width200 mm
Overview
- Internal
- Yes
- Analog signal format system
- NTSC, PAL
- Audio (L/R) in
- 4
- Bundled software
- 64-CH Monitor
- Minimum system requirements
- Windows XP
- Width
- 200 mm
- Brand
- LevelOne
- Category
- Video Capturing Device
- Model
- FCS-8006
- Part number
- FCS-8006
- EAN / UPC
- 846359001080, 854587145339, 4015867152898
- Also known as
- LevelOne FCS-8006 video capturing device Internal PCI
Specifications
23 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Internal | Yes |
| Host interface | PCI |
| Video capture resolution (max) | 704 x 576 pixels |
| Capturing from | Digital camera |
| Certification | FCC, CE |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL |
| Video capturing speed (PAL) | 100 fps |
| Video capturing speed (NTSC) | 120 fps |
| Maximum video capture resolution (PAL) | 704 x 576 pixels |
| Maximum video capture resolution (NTSC) | 704 x 480 pixels |
Ports & interfaces
| Specification | Value |
|---|---|
| Audio (L/R) in | 4 |
| Composite video in | 16 |
Software
| Specification | Value |
|---|---|
| Bundled software | 64-CH Monitor |
System requirements
| Specification | Value |
|---|---|
| Minimum system requirements | Windows XP |
| Minimum RAM | 1000 MB |
| Minimum processor | E5300 |
| Minimum storage drive space | 250 GB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Height | 120 mm |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | MS Windows XP, Windows Vista, Windows Server 2003, Windows Server 2008(32bit), Windows 7(32bit) |
Packaging content
| Specification | Value |
|---|---|

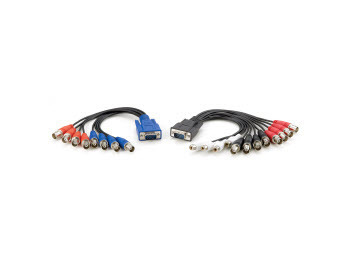

| Cables included | Composite |
| User guide | Yes |
| Manual | Yes |
