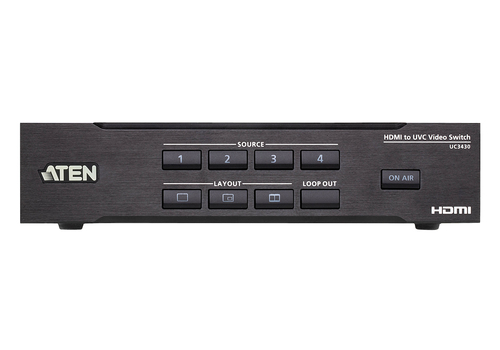

UC3430-AT-U video capturing device HDMI
Model UC3430-AT-U
28 specifications
- Weight1.03 kg
- ColourBlack
- Maximum refresh rate60 Hz
- USB portYes
- Power supply typeDC
- Windows operating systems supportedWindows 10, Windows 11
Overview
- Weight
- 1.03 kg
- Colour
- Black
- Maximum refresh rate
- 60 Hz
- USB port
- Yes
- Power supply type
- DC
- Windows operating systems supported
- Windows 10, Windows 11
- Brand
- ATEN
- Category
- Video Capturing Device
- Model
- UC3430-AT-U
- Part number
- UC3430-AT-U
- Also known as
- ATEN UC3430-AT-U video capturing device HDMI
Specifications
28 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Internal | No |
| Host interface | HDMI |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Housing material | Metal |
Video
| Specification | Value |
|---|---|
| Supported resolutions | 3840 x 2160 1920 x 1080 1280 x 720 |
| Maximum refresh rate | 60 Hz |
| Maximum frame rate | 60 fps |
| Supported video modes | 720p, 1080p, 2160p |

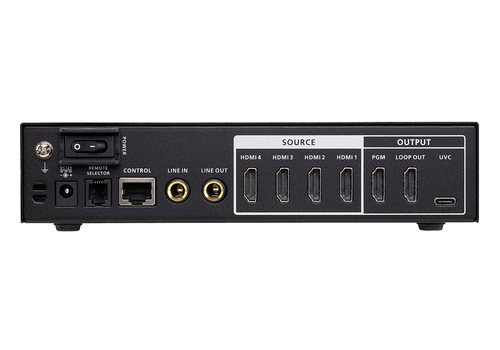

Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | USB Type-C |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 1 |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 164.6 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 1.03 kg |
