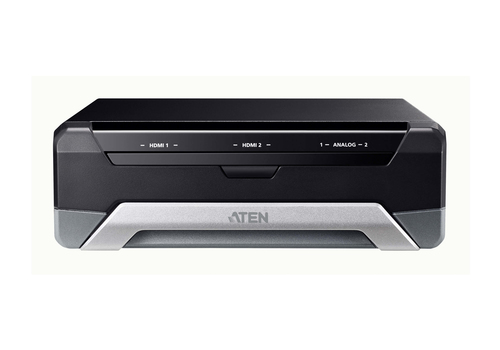

UC3022 video capturing device USB 3.2 Gen 1 (3.1 Gen 1)
Model UC3022EAN 672792011474
31 specifications
- Weight680 g
- ColourBlack, Silver
- Maximum frame rate60 fps
- USB portYes
- AC input voltage5 V
- Windows operating systems supportedWindows 10
Overview
- Weight
- 680 g
- Colour
- Black, Silver
- Maximum frame rate
- 60 fps
- USB port
- Yes
- AC input voltage
- 5 V
- Windows operating systems supported
- Windows 10
- Brand
- ATEN
- Category
- Video Capturing Device
- Model
- UC3022
- Part numbers
- UC3022, UC3022-AT-G
- EAN / UPC
- 672792011474, 4719264649721
- Also known as
- ATEN UC3022 video capturing device USB 3.2 Gen 1 (3.1 Gen 1)
Specifications
31 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Internal | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Video capture resolution (max) | 3840 x 2160 pixels |
Video
| Specification | Value |
|---|---|
| Supported resolutions | 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 |
| Maximum frame rate | 60 fps |
| Supported video modes | 720p, 1080p, 2160p |

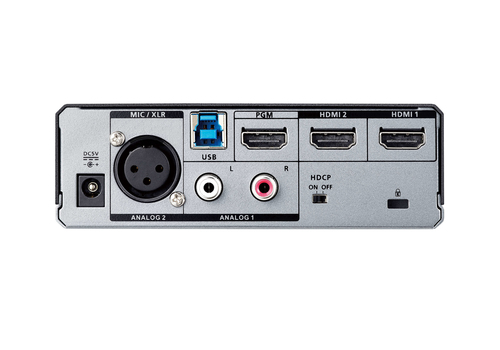

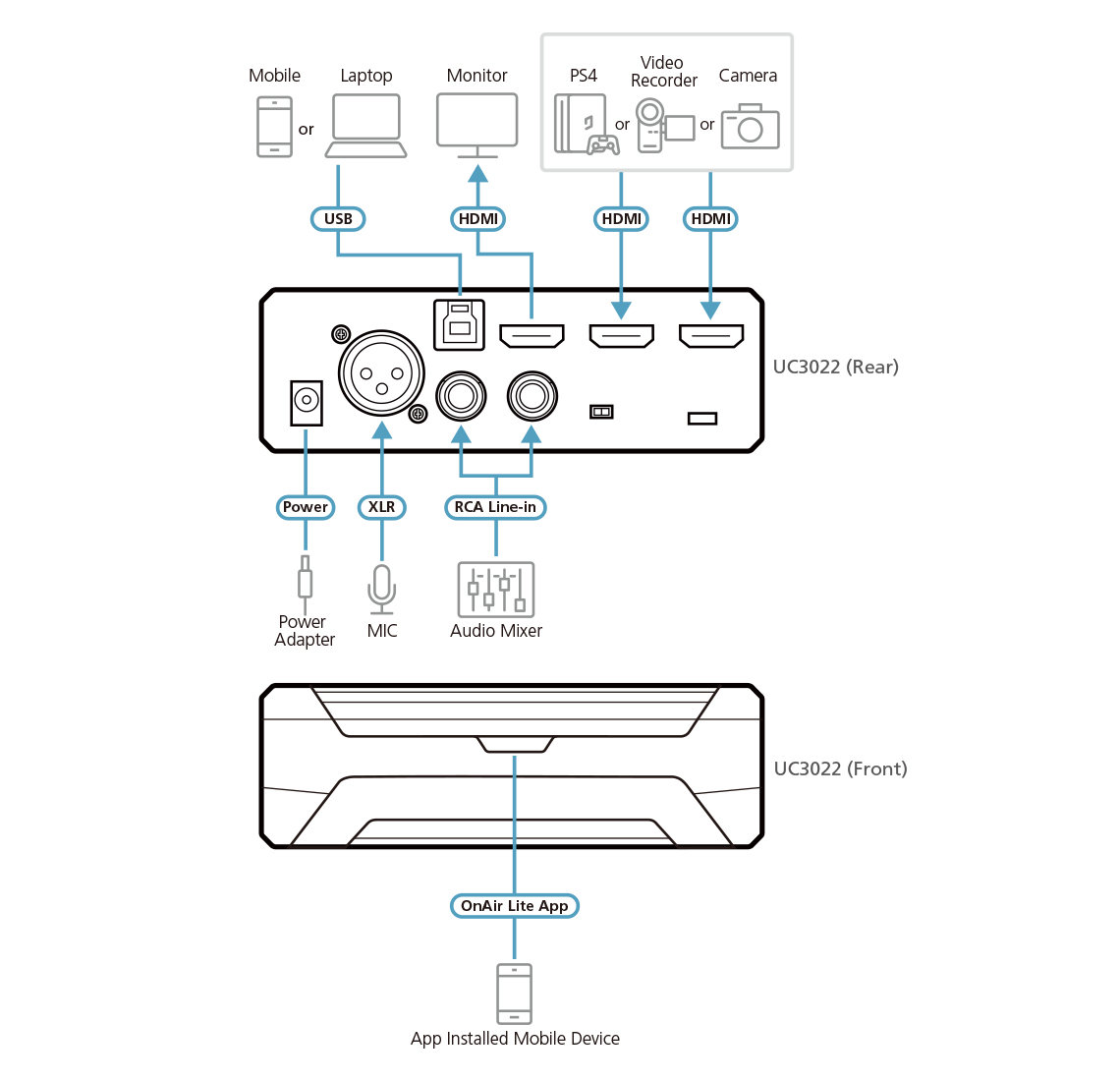

Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | USB Type-B |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| HDMI ports quantity | 3 |
| HDMI in | 2 |
| Number of HDMI outputs | 1 |
| Audio (L/R) in | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Other operating systems supported | Android, iOS |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 4000 MB |
| Minimum processor | Intel i3 Dual Core 2.8Ghz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 151.8 mm |
| Depth | 130 mm |
| Height | 42.5 mm |
| Weight | 680 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
