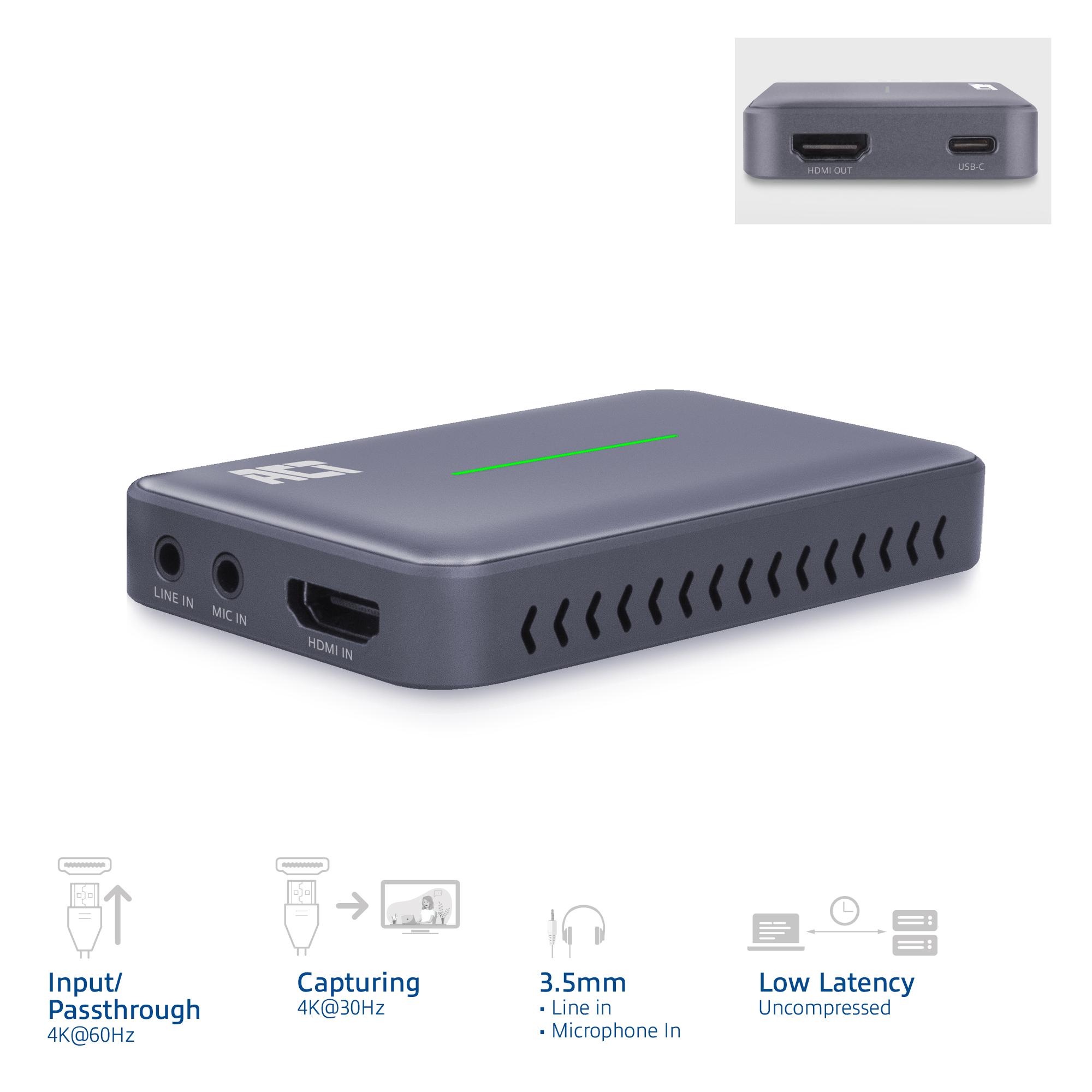

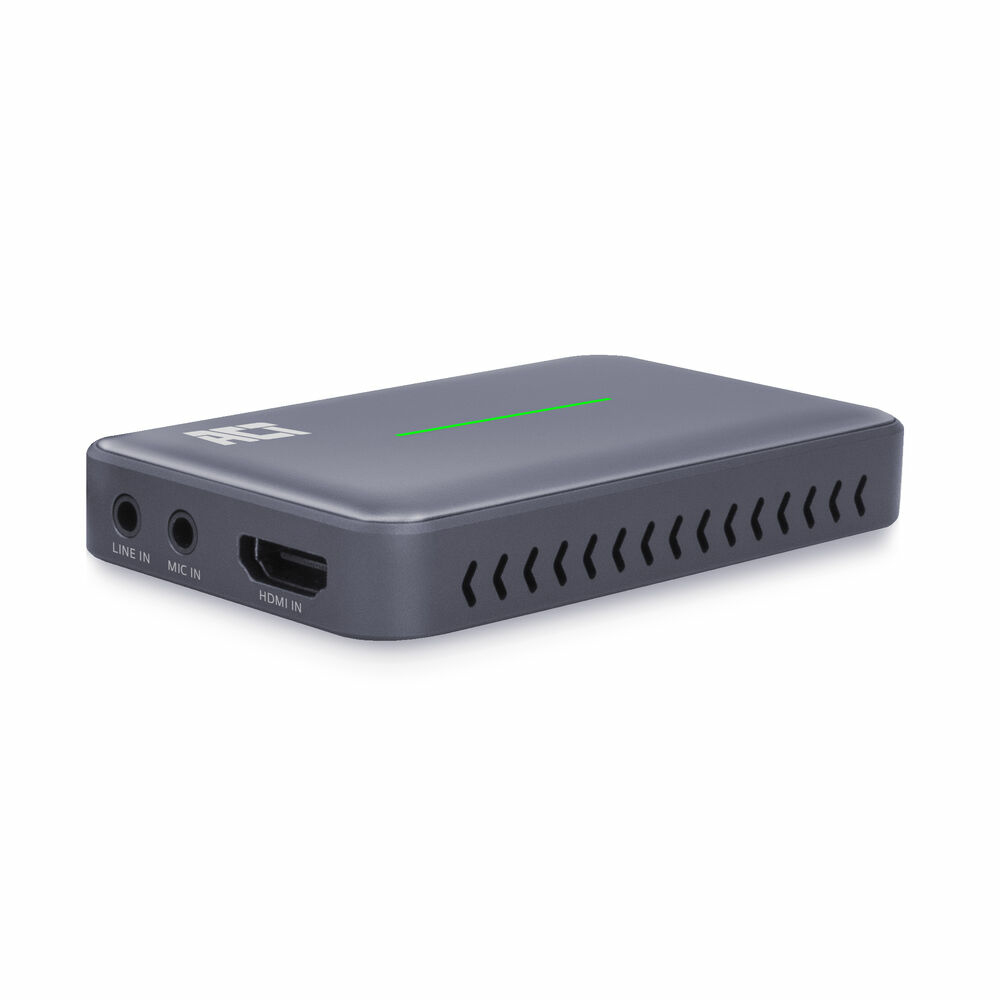

USB-C Video Capture Card, HDMI 4K@60Hz passthrough, 4K@30Hz capture
Model AC7600EAN 8716065549805
20 specifications
- ColourBlack
- Maximum refresh rate60 Hz
- Audio sampling rate48 kHz
- USB portYes
Overview
- Colour
- Black
- Maximum refresh rate
- 60 Hz
- Audio sampling rate
- 48 kHz
- USB port
- Yes
- Brand
- ACT
- Category
- Video Capturing Device
- Model
- AC7600
- Part number
- AC7600
- EAN / UPC
- 8716065549805
- Also known as
- ACT USB-C Video Capture Card, HDMI 4K@60Hz passthrough, 4K@30Hz capture
Specifications
20 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Internal | No |
| Host interface | HDMI |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Cable length | 1 m |

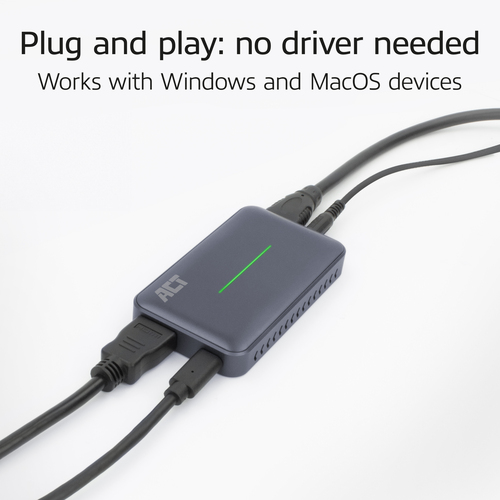

| Plug and Play | Yes |
Video
| Specification | Value |
|---|---|
| Maximum refresh rate | 60 Hz |
| Supported video modes | 1080p |
Audio
| Specification | Value |
|---|---|
| Audio sampling rate | 48 kHz |

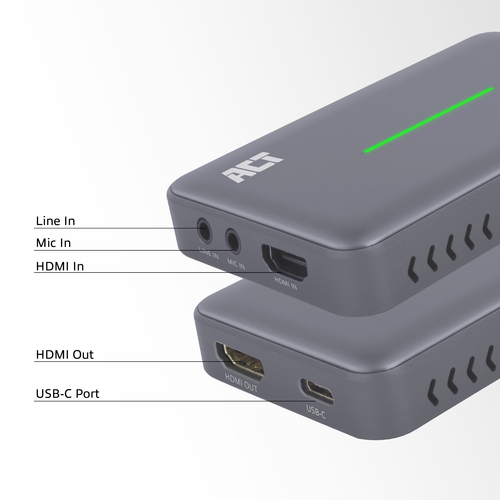

Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | USB Type-C |
| USB ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Mic/Line input ports quantity | 1 |
| Mic/Line output ports quantity | 1 |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |

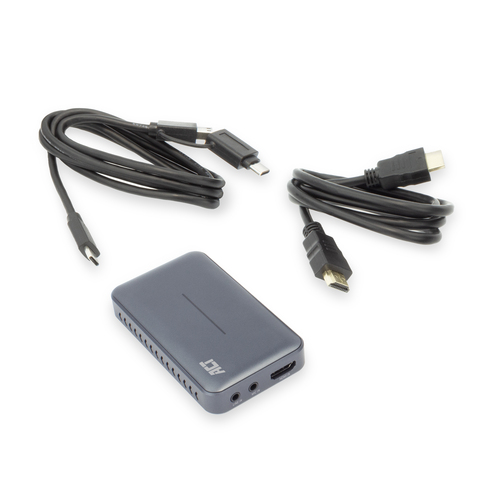

Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI, USB Type-A to USB Type-C |
Similar products
All video capturing devices
j5create

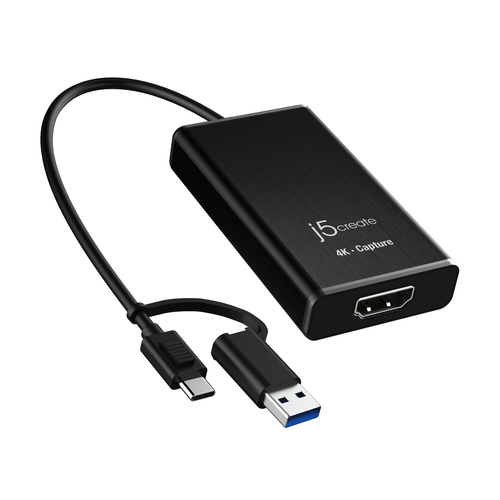

JVA11-N 4K HDMI™ Capture Adapter
Model JVA11
- Weight
- 55 g
- Colour
- Black
- Analog signal format system
- Not supported
StarTech.com

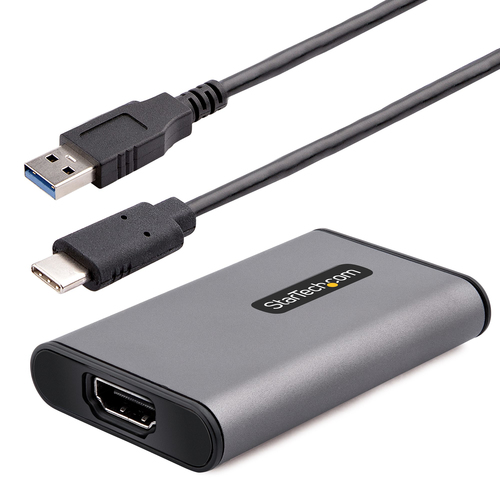

USB 3.0 HDMI Video Capture Device, 4K
Model 4K30-HDMI-CAPTURE
- Weight
- 41 g
- Colour
- Black, Grey
- Maximum frame rate
- 60 fps
j5create

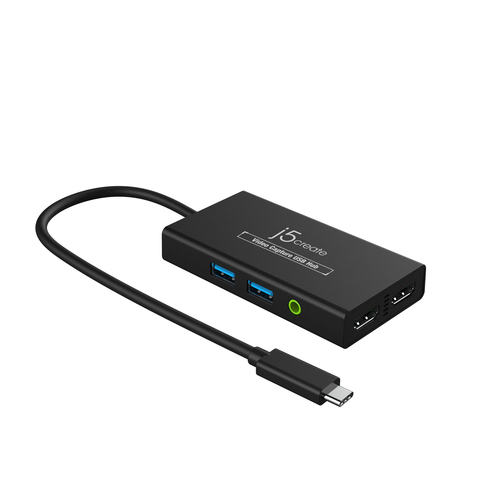

JVA01-N Video Capture USB™ Hub
Model JVA01
- Weight
- 69 g
- Colour
- Black
- Analog signal format system
- Not supported
j5create
JVA06 Dual HDMI™ Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and 2 x USB ports, Black
Model JVA06
- Weight
- 175 g
- Colour
- Black
- Analog signal format system
- Not supported
j5create

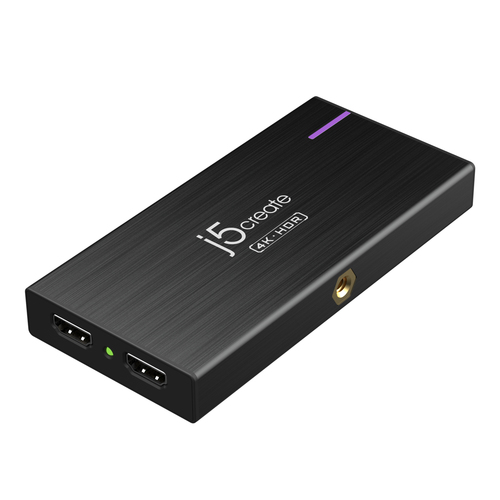

JVA14-N 4K Game Capture Station
Model JVA14
- Weight
- 142.5 g
- Colour
- Black
- Analog signal format system
- Not supported
MAXHUB
Portable Capture Host CSP50
Model CSP50
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Weight
- 6.5 kg
ATEN

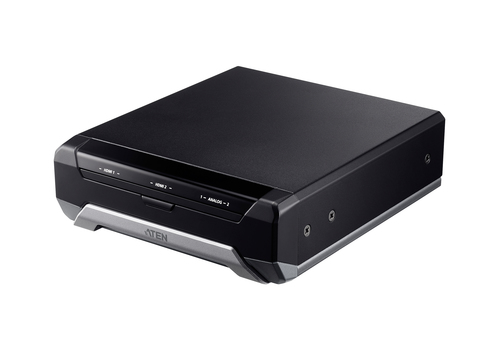

CAMLIVE™ PRO (Dual HDMI to USB-C UVC Video Capture)
