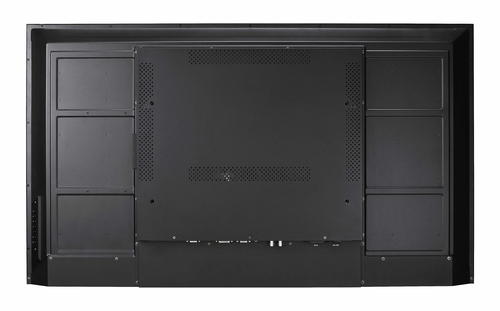

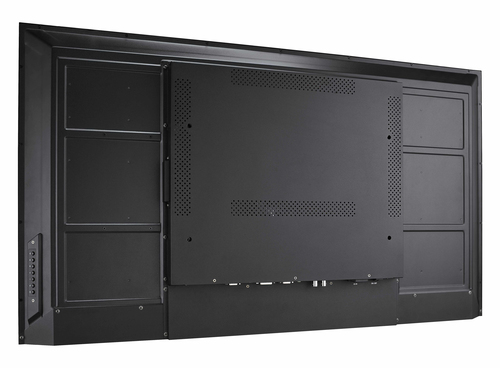

AG Neovo SMQ-4301 surveillance monitor CCTV monitor

SMQ-4301 surveillance monitor CCTV monitor

109.2 cm (43") 3840 x 2160 pixels

Model SMQ-4301EAN 190695002400

60 specifications

Display109.2 cm (43")
Resolution3840 x 2160 pixels
Energy classG
TypeCCTV monitor
Weight9 kg
ColourBlack

See all specifications

Overview

Display: 109.2 cm (43")
Resolution: 3840 x 2160 pixels
Energy class: G
Type: CCTV monitor
Weight: 9 kg
Colour: Black

Brand: AG Neovo
Category: Surveillance Monitor
Model: SMQ-4301
Part number: SMQ-4301
EAN / UPC: 190695002400, 4710739597387
Also known as: AG Neovo SMQ-4301 surveillance monitor CCTV monitor 109.2 cm (43") 3840 x 2160 pixels

Specifications

60 specifications in 9 groups

Design

Specification	Value
Product type	CCTV monitor
Mounting type	Wall-mounted
Product colour	Black
LED indicators	Yes
Certification	EAC, UKCA

Display

Specification	Value
Display diagonal	109.2 cm (43")
Display resolution	3840 x 2160 pixels
Display type	LED
Display brightness	350 cd/m²
Display aspect ratio	16:9
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.245 x 0.245 mm
Horizontal scan range	15 - 135 kHz
Vertical scan range	24 - 86 Hz
Response time	5 ms
Native refresh rate	60 Hz

Performance

Specification	Value
Built-in speaker(s)	Yes
Number of built-in speakers	2
Speaker power	10 W
Panel mounting interface	400 x 200 mm
VESA mounting	Yes

Ports & interfaces

Specification	Value
HDMI ports quantity	1
HDMI version	2.0
DVI-D ports quantity	1
VGA (D-Sub) ports quantity	1
Ethernet LAN	Yes
RJ-45 ports quantity	1
USB port	Yes
Composite video in	1
USB 2.0 ports quantity	1
Composite video out	1
3.5 mm (1/8-inch) in	Yes
3.5 mm (1/8-inch) out	Yes

Power

Specification	Value
Power source type	AC
Power supply type	Internal
Power consumption (typical)	75 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC adapter output voltage	100 - 240 V
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	75 kWh

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	10 - 95%

Technical details

Specification	Value
Compliance certificates	CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE

Weight & dimensions

Specification	Value
Weight	9 kg
Height	558.3 mm
Depth	84.6 mm
Width	969.9 mm
Package type	Box
Package width	1070 mm
Package depth	153 mm
Package height	663 mm
Package weight	11.7 kg

Packaging content

Specification	Value
AC adapter included	Yes
Quantity	1
