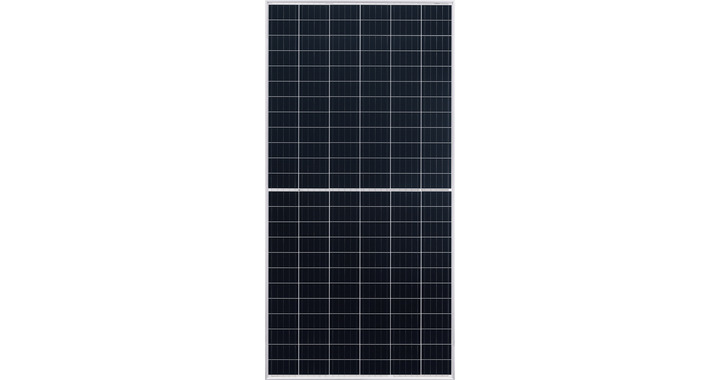

NU-JB395 solar panel
395 W Monocrystalline silicon
Model NU-JB395
18 specifications
- Power395 W
- Weight23.5 kg
- ColourBlack
- Solar cell typeMonocrystalline silicon
- Operating temperature (T-T)-40 - 85 °C
- Width1002 mm
Overview
- Power
- 395 W
- Weight
- 23.5 kg
- Colour
- Black
- Solar cell type
- Monocrystalline silicon
- Operating temperature (T-T)
- -40 - 85 °C
- Width
- 1002 mm
- Brand
- Sharp
- Category
- Solar Panel
- Model
- NU-JB395
- Part number
- NU-JB395
- Also known as
- Sharp NU-JB395 solar panel 395 W Monocrystalline silicon
Specifications
18 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Rated power | 395 W |
| Current | 20 A |
| Current at maximum power (Imp) | 9.62 A |
| Maximum system voltage | 1500 V |
| Short-circuit current (Isc) | 10.35 A |
| Voltage at maximum power (Vmp) | 41.07 V |
| Voltage at open-circuit (Voc) | 49.45 V |
Features
| Specification | Value |
|---|---|
| Solar cell type | Monocrystalline silicon |
| Product colour | Black |
| Housing material | Aluminium |
| International Protection (IP) code | IP68 |
| Cell efficiency | 19.6% |
| Number of cells | 144 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1002 mm |
| Depth | 40 mm |
| Height | 2008 mm |
| Weight | 23.5 kg |
