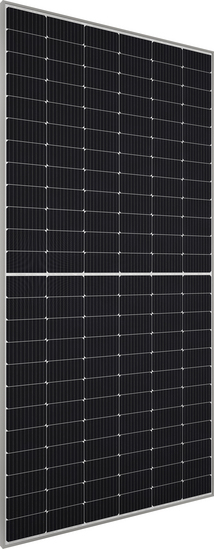

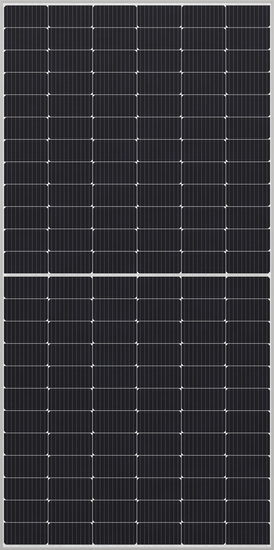

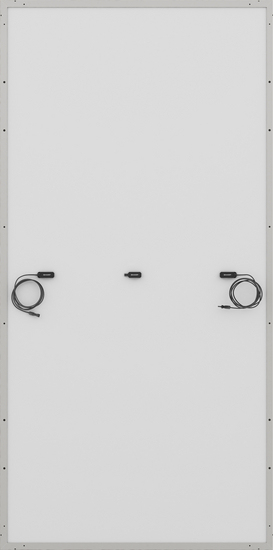

NU-JD540 solar panel
540 W Monocrystalline silicon
Model NU-JD540
23 specifications
- Power540 W
- Weight27.8 kg
- ColourBlack
- Solar cell typeMonocrystalline silicon
- Operating temperature (T-T)-40 - 90 °C
- Width1134 mm
Overview
- Power
- 540 W
- Weight
- 27.8 kg
- Colour
- Black
- Solar cell type
- Monocrystalline silicon
- Operating temperature (T-T)
- -40 - 90 °C
- Width
- 1134 mm
- Brand
- Sharp
- Category
- Solar Panel
- Model
- NU-JD540
- Part number
- NU-JD540
- Also known as
- Sharp NU-JD540 solar panel 540 W Monocrystalline silicon
Specifications
23 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Rated power | 540 W |
| Current at maximum power (Imp) | 12.97 A |
| Maximum system voltage | 1500 V |
| Power tolerance | 5% |
| Short-circuit current (Isc) | 13.66 A |
| Voltage at maximum power (Vmp) | 41.64 V |
| Voltage at open-circuit (Voc) | 50.34 V |
Features
| Specification | Value |
|---|---|
| Solar cell type | Monocrystalline silicon |
| Connector type | MC4 |
| Product colour | Black |
| Housing material | Aluminium |
| Protection class | II |
| International Protection (IP) code | IP68 |
| Fire-resistance rating | Class C (UL 790) |
| Fire-resistant | Yes |
| Cell efficiency | 20.9% |
| Number of cells | 144 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 90 °C |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1134 mm |
| Depth | 35 mm |
| Height | 2279 mm |
| Weight | 27.8 kg |
