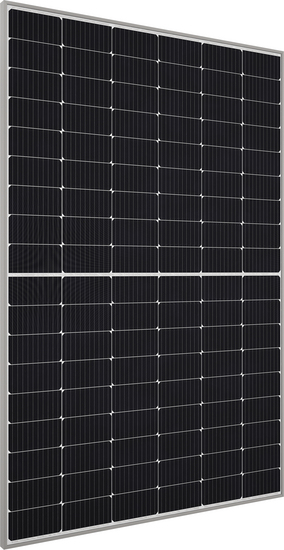

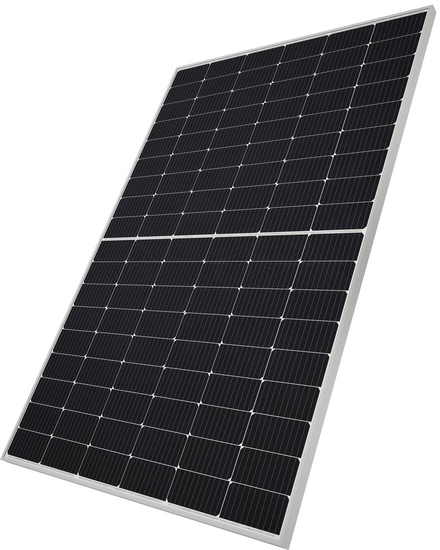

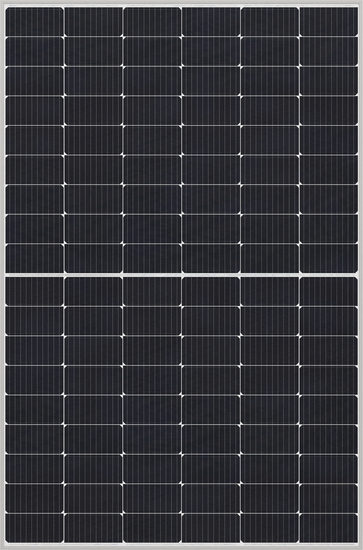

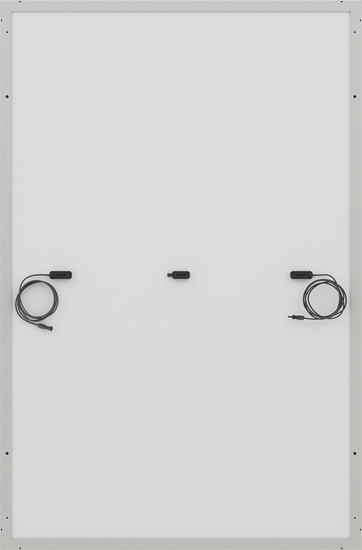

NU-JC410 solar panel
410 W Monocrystalline silicon
Model NU-JC410EAN 5905515606332
23 specifications
- Power410 W
- Weight21.8 kg
- ColourBlack
- Solar cell typeMonocrystalline silicon
- Operating temperature (T-T)-40 - 90 °C
- Width1134 mm
Overview
- Power
- 410 W
- Weight
- 21.8 kg
- Colour
- Black
- Solar cell type
- Monocrystalline silicon
- Operating temperature (T-T)
- -40 - 90 °C
- Width
- 1134 mm
- Brand
- Sharp
- Category
- Solar Panel
- Model
- NU-JC410
- Part number
- NU-JC410
- EAN / UPC
- 5905515606332
- Also known as
- Sharp NU-JC410 solar panel 410 W Monocrystalline silicon
Specifications
23 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Rated power | 410 W |
| Current at maximum power (Imp) | 13.1 A |
| Maximum system voltage | 1000 V |
| Power tolerance | 5% |
| Short-circuit current (Isc) | 13.81 A |
| Voltage at maximum power (Vmp) | 31.3 V |
| Voltage at open-circuit (Voc) | 37.79 V |
Features
| Specification | Value |
|---|---|
| Solar cell type | Monocrystalline silicon |
| Connector type | MC4 |
| Product colour | Black |
| Housing material | Aluminium |
| Protection class | II |
| International Protection (IP) code | IP68 |
| Fire-resistance rating | Class C (UL 790) |
| Fire-resistant | Yes |
| Cell efficiency | 21% |
| Number of cells | 108 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 90 °C |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1134 mm |
| Depth | 35 mm |
| Height | 1722 mm |
| Weight | 21.8 kg |
